6.9.3.4 IEC 4-28 Tests
The IEC 61000-4-28 allows pre-compliance
testing of products that require CE Marking
per the IEC 61000-4-28 test standard for
immunity against power frequency
variations.

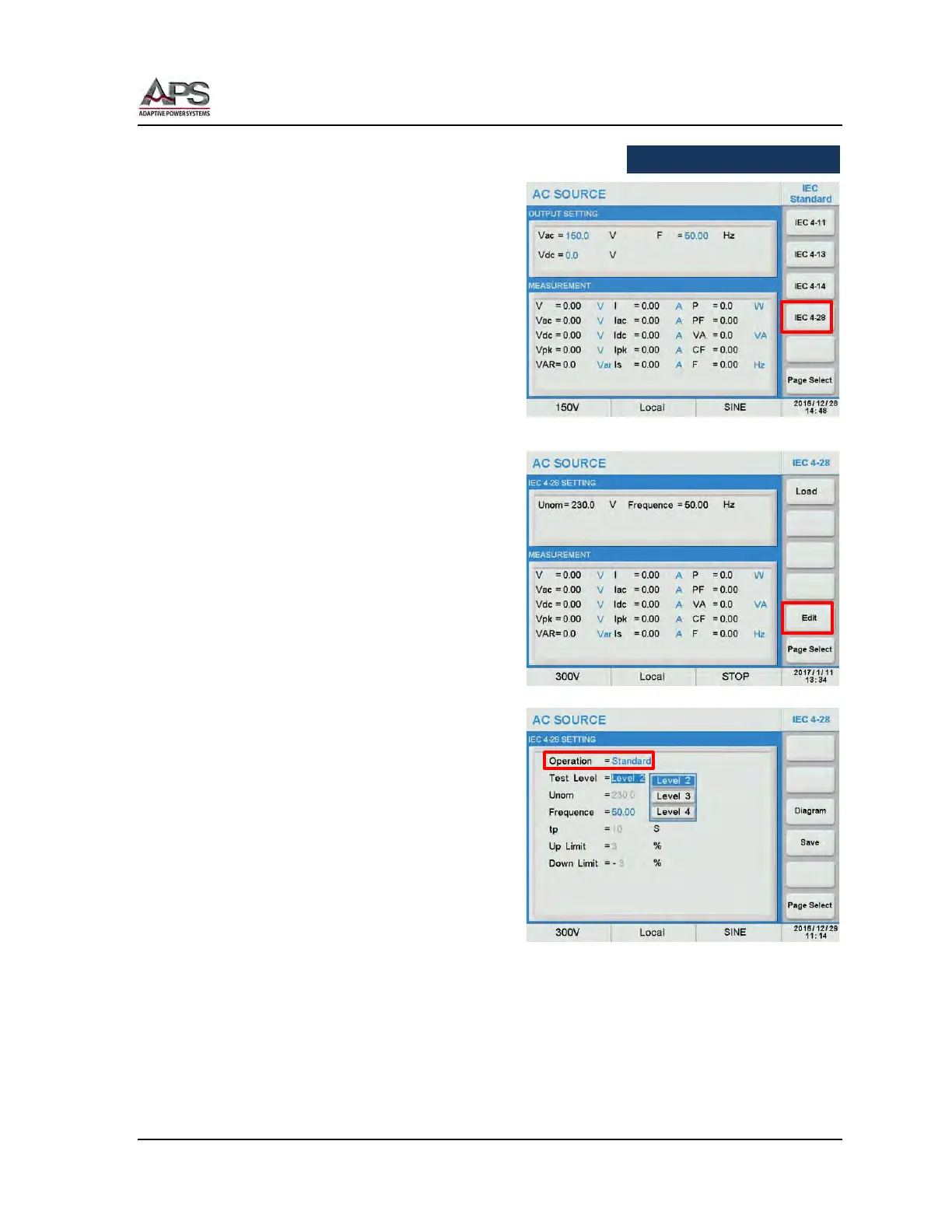

From the main IEC Standard menu, Press the
IEC 4-28 soft key to select the IEC 4-28 test
menu.
Available soft keys in this screen are Load
and Edit. Press the Edit soft key to set the
required test selections for this test.
Once the Edit screen appears, select the
“Operation =” field and press the [Enter] key
to switch between Standard Setup and User
Def. Setup. In User mode, parameters can be
edited.
