CPS100 SERIES OPERATION MANUAL
SECTION 5:
Unpacking and Installation
Entire Contents Copyright 2018 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS.
APS CPS100 Series Power Source Operation Manual Page 55 of 231
5.9.3 CPS130, CPS140, CPS150 Rear Panel Overview
The callouts for the controls and connectors located on the rear panel of the 4U CPS Models
are identified in the table below.

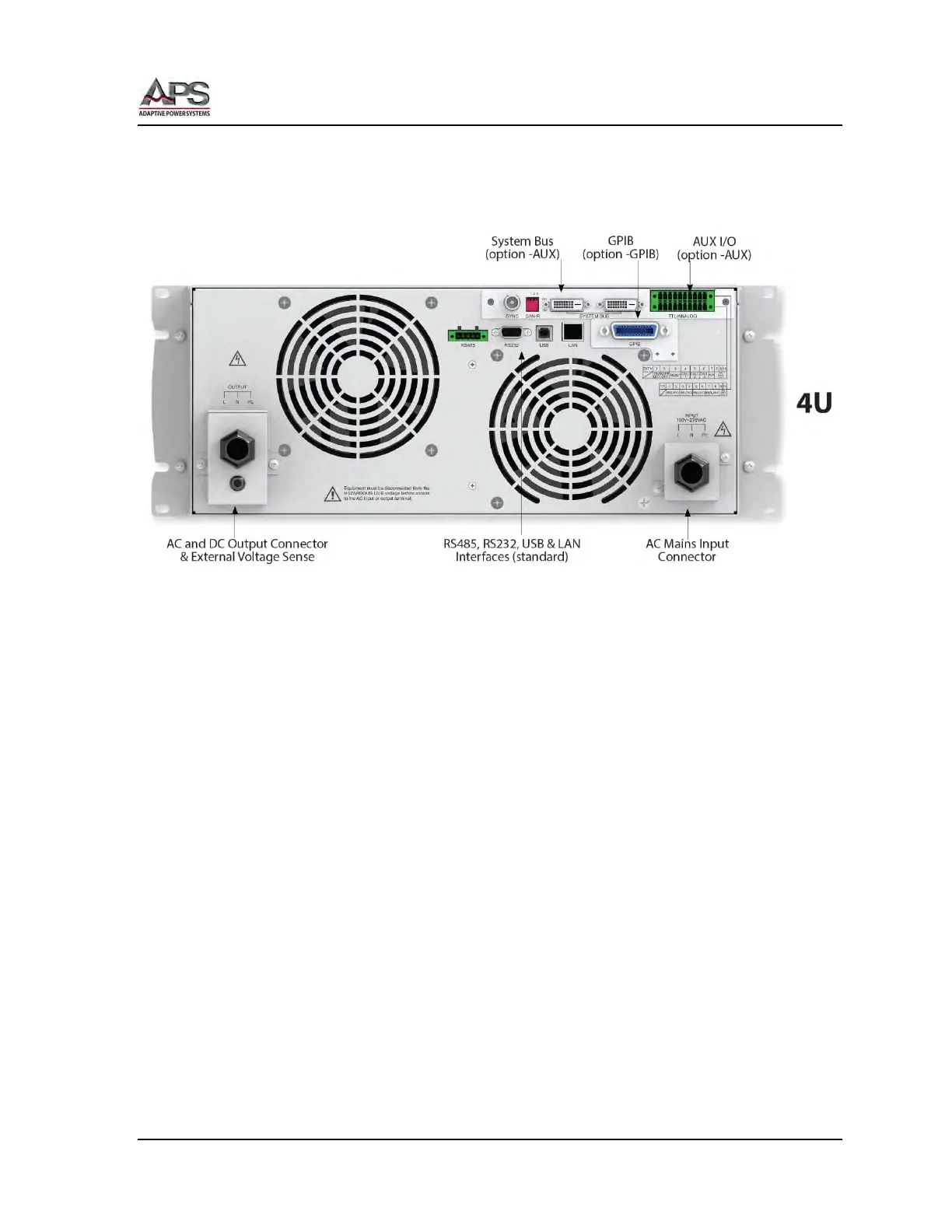

Figure 5-10: Rear Panel Callouts – 4U Models
