6.8.2.3 LCD Touch Screen Calibration
The touch screen may require period
calibration to ensure the on screen fields line
up properly with the touch overlay grid.
To do so, select the [Screen Calibration] soft
key to display the calibration screen.

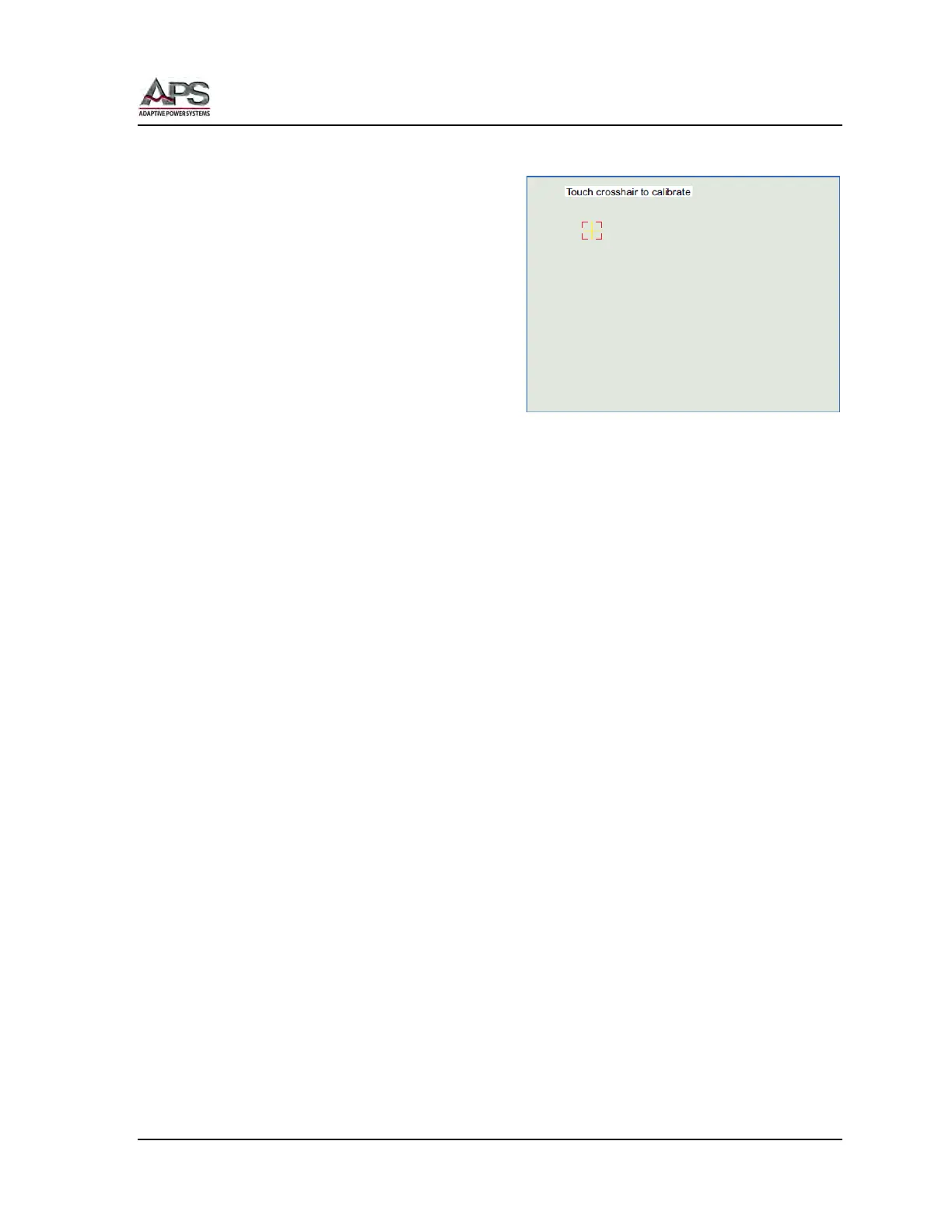

A calibration cross hair symbol as shown on
the right will appear. Press the center of the
cross hair as best as possible with the stylus
or your finger. This will complete the touch
screen calibration process.
6.8.2.4 Screen Color Test
The screen color test displays a color pattern to check the color correctness of the LCD
screen. This is a test only and there are no user adjustments.
6.8.3 Calibration
For calibration information, refer to Section 11, “Calibration” on page 206.
6.8.4 Master/Slave
Master / Slave configuration and operation is described in Section 8, “Master Slave
Operation” starting on page 174.
