These setting correspond with the test diagram from the IEC 61000-4-11 test standard
shown below.

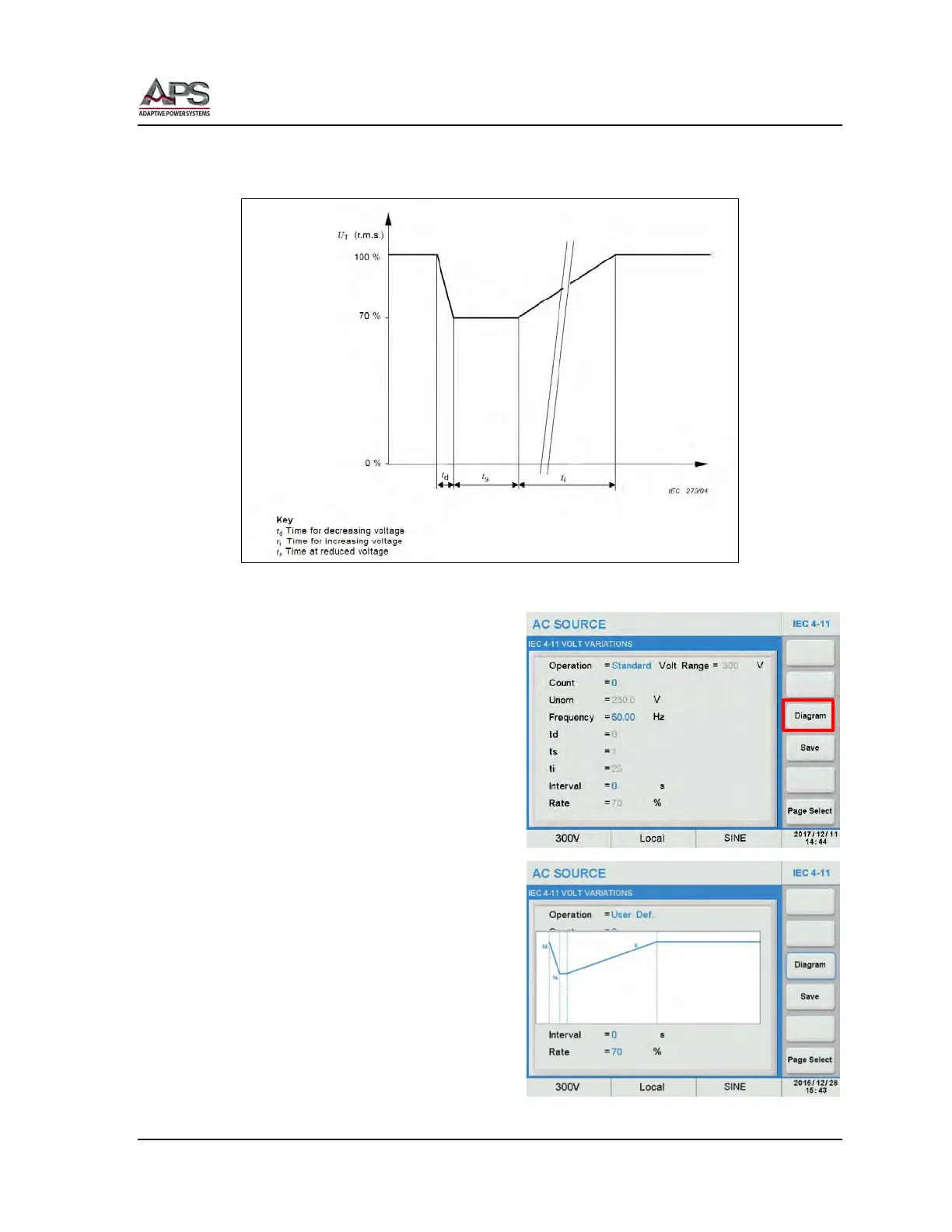

Figure 6-10: IEC 6100-4-11 Standard Voltage Variation
Once completed, press the Save soft key to
save the modified User Def. settings to non-
volatile memory.
Note: If the IEC 4-11 test setting is not
saved, it will be lost when the power
source is turned off.
A visual display of the IEC 4-11 test sequence
is available for pre-viewing the test by
pressing the Diagram soft key.
The preview will pop up in the center of the
IEC 4-11 Test screen. Press [Esc] to clear the
preview.
