Rear Panel Controls and Connectors
All CPS100 Series have several controls and connectors on the rear panel in addition to the
AC input and AC output terminals covered in the previous sections. Other connectors and
features are detailed in this section by model number.
5.9.1 CPS106, CPS110, CPS115 Rear Panel Overview
The callouts for the controls and connectors located on the rear panel of the 2U CPS Models
are identified in the table below.

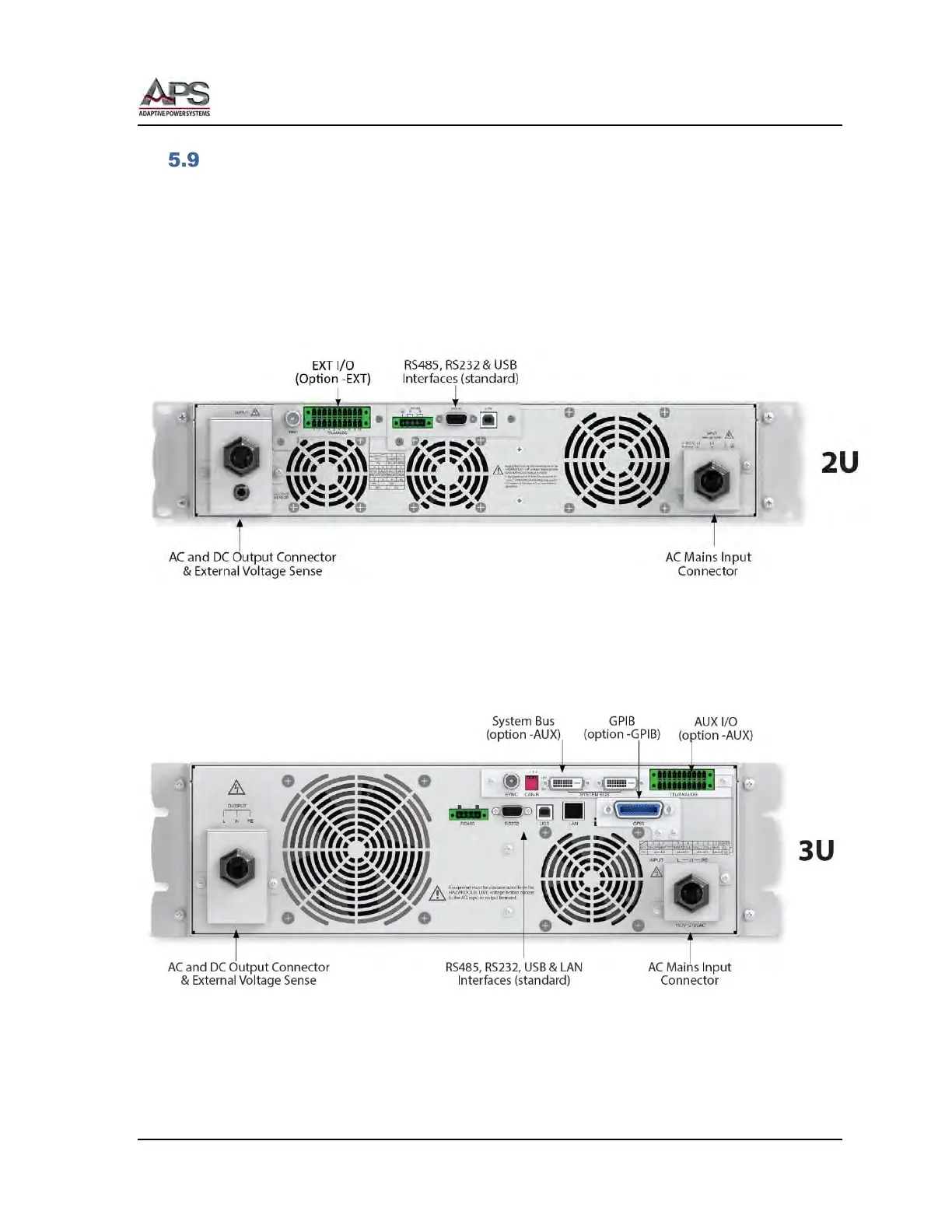

Figure 5-8: Rear Panel Callouts – 2U Models
5.9.2 CPS120 Rear Panel Overview
The callouts for the controls and connectors located on the rear panel of the 3U CPS Model
is identified in the table below.
Figure 5-9: Rear Panel Callouts – 3U Model
