CPS100 SERIES OPERATION MANUAL
SECTION 6:
Front Panel Operation
Entire Contents Copyright 2018 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS.
APS CPS100 Series Power Source Operation Manual Page 139 of 231

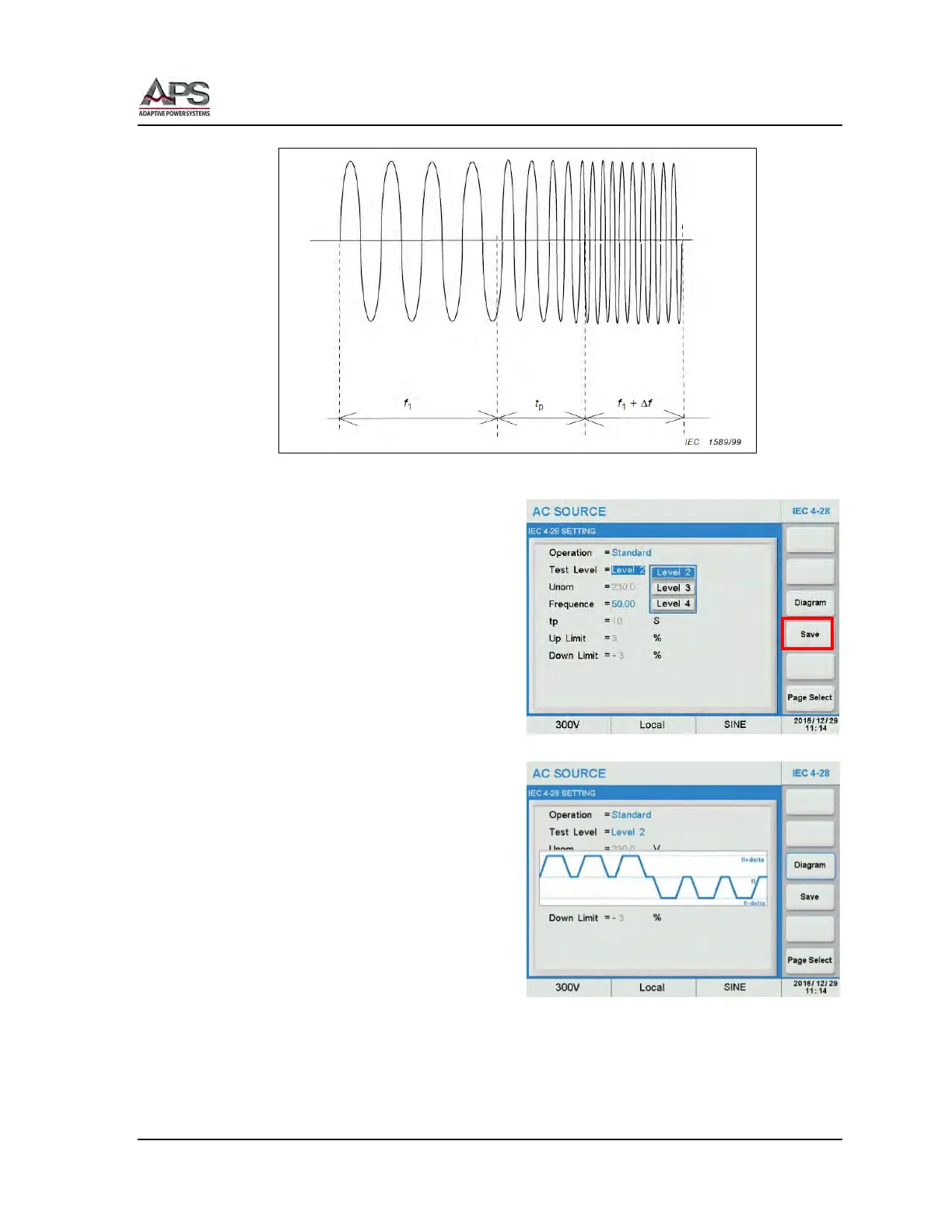

Figure 6-14: IEC 4-28 Frequency Transition Time tp
When done, press the Save soft key to save
the IEC 4-28 settings to non-volatile memory.
Note: If the IEC 4-28 test setting is not
saved, it will be lost when the power
source is turned off.
A visual display of the IEC 4-28 test sequence
is available for pre-viewing the test by
pressing the Diagram soft key.
The preview will pop up in the center of the
IEC 4-28 Test screen. Press [Esc] to clear the
preview.
