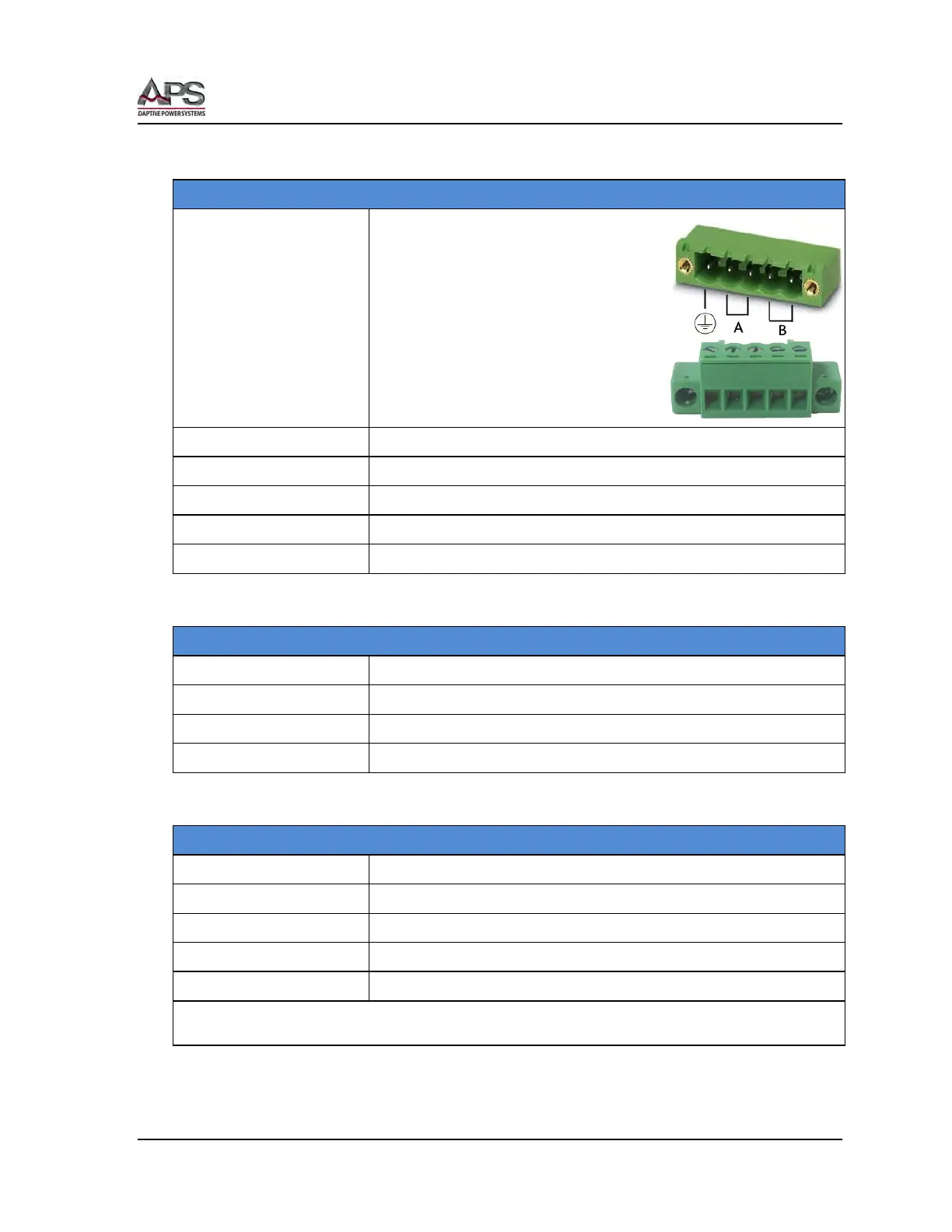

4.11.2 RS485 Interface
RS485 Interface
Connector Type
Header - MSTB 2,5/ 5-GF-5,08 – 1776537
Pin assignments: Gnd, A, A, B, B
Mating removable screw compression
connector installed on unit.
Connector Location
Rear Panel
Baud Rates
9600, 19022, 38400, 57600, 115200
Parity Bits
NONE, ODD, EVEN
Stop Bits
1 or 2
Address Range
1 ~ 254
4.11.3 USB Interface
USB Interface
Connector Type
USB Type B, Device Connection
Connector Location
Rear Panel
Baud Rates
9600, 19022, 38400, 57600, 115200
Device Driver
Virtual COM Windows Driver
4.11.4 LAN Interface (Option on 2U models)
LAN Interface
Connector Type
RJ45
Connector Location
Rear Panel
Ethernet
100BASE-TX
ETH Setting
Auto or Manual
Available Settings
IP Address, Net Mask, Gateway
Note: The LAN/GPIB interface option on CPS106, CPS110 & CPS115 replaces the USB/RS232/RS485 interface card.
Only one or the other can be installed at any time.
