CPS100 SERIES OPERATION MANUAL
SECTION 6:
Front Panel Operation
Entire Contents Copyright 2018 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS.
APS CPS100 Series Power Source Operation Manual Page 71 of 231

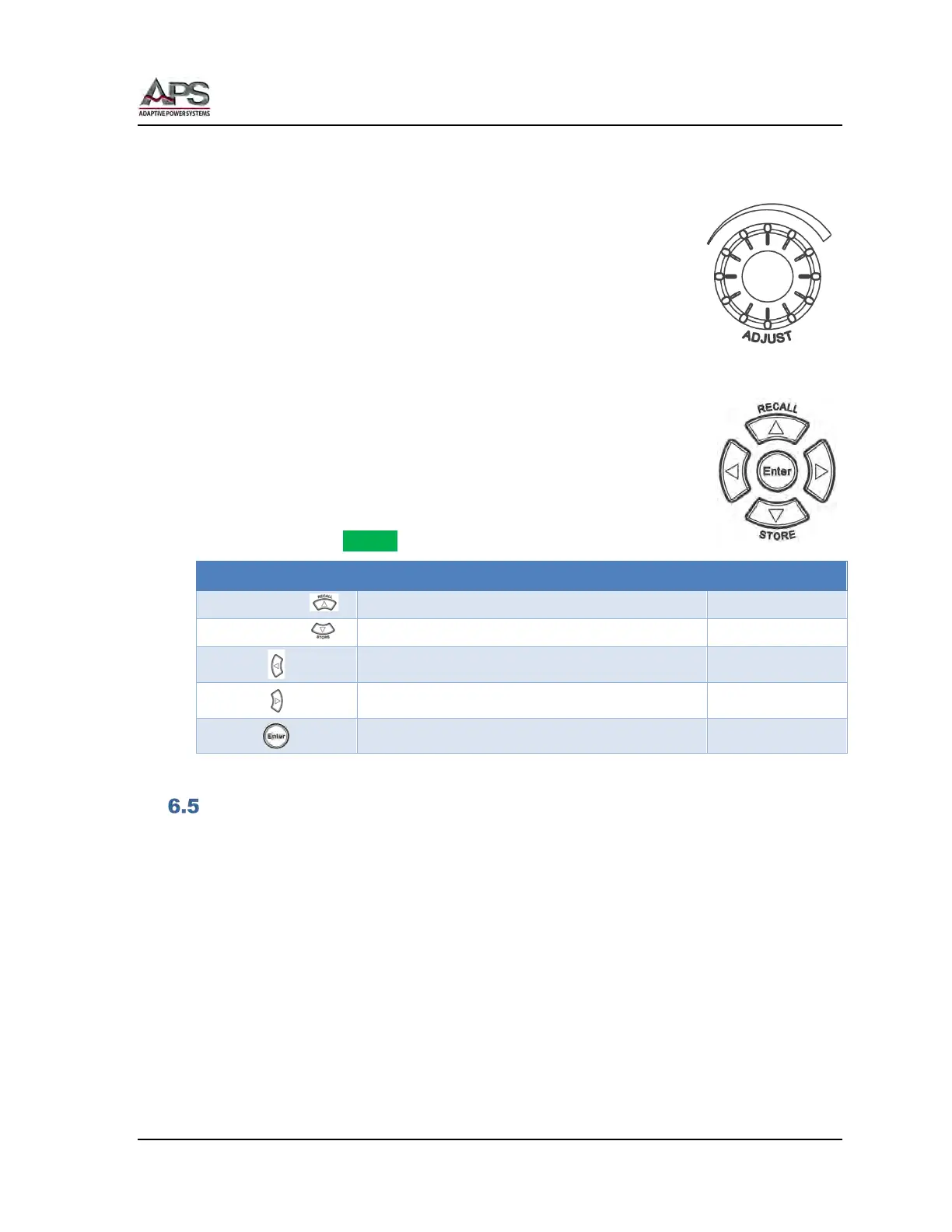

6.4.5 ADJUST Shuttle Knob
The ADJUST shuttle knob or rotary digital encoder in the upper right
hand corner of the front panel can be used to adjust any
programmable parameter or select and confirm an entry from a drop
down menu.
Turning the shuttle to right (clockwise) increments a selected field
value. Turing it to the left (counter clockwise) decrements a selected
field value.
Note: If the front panel is locked (LOCK is set to ON), the shuttle
knob is disabled.
6.4.6 Cursor Keys
The cursor keypad located directly below the Shuttle consist of four
cursor direction keys and an ENTER confirmation key. These keys have
the following function(s).
The and cursor keys may be used to quickly access stored settings
by holding down the SHIFT key.
Key Function Manual Reference
RECALL ( Shift+ )
Recall setup from internal non-volatile memory [Shift] + []
STORE ( Shift + )
Store setup to internal non-volatile memory [Shift] + []
Up / Left Key []
Down / Right Key []
Confirm Key [Enter]
Table 6-1: Cursor Keypad Functions
Menu Structure
The CPS100 Series power sources use a hierarchy of menu screens divided into function
areas that allow full control over output settings, modes of operation, system parameters
and several special test functions.
There are three levels of nested menus under the Main Screen. The Main screen is always
the first screen displayed after the power source is turned on. All sub screens can be
accessed using the MENU and MAIN keys in combination with one or more on-screen soft
keys.
The figure below shows the entire menu system at once. Each section will be covered in
subsequent sections in more detail.
