CPS100 SERIES OPERATION MANUAL
SECTION 7:
Remote Control Programming
Entire Contents Copyright  2018 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS.
APS CPS100 Series Power Source Operation Manual Page 163 of 231
Command Description
SEQ:STEPCOUNT:_<nr2> Sets the number of loop cycles for the current step. Range is 1
~ 9999. Returns OK or FALSE.
SEQ:STEPNUM:_<nr2> Sets the total number of steps in the sequence. Range is 1 ~ 50.
Returns OK or FALSE.
Table 7-10: LIST Sub-system Commands
7.8.2.1 LIST Mode programming examples
The correlation between programming a transient list from the front panel and using
remote commands is shown the figure below. The following two examples show two
alternate ways of programming the same list sequence.

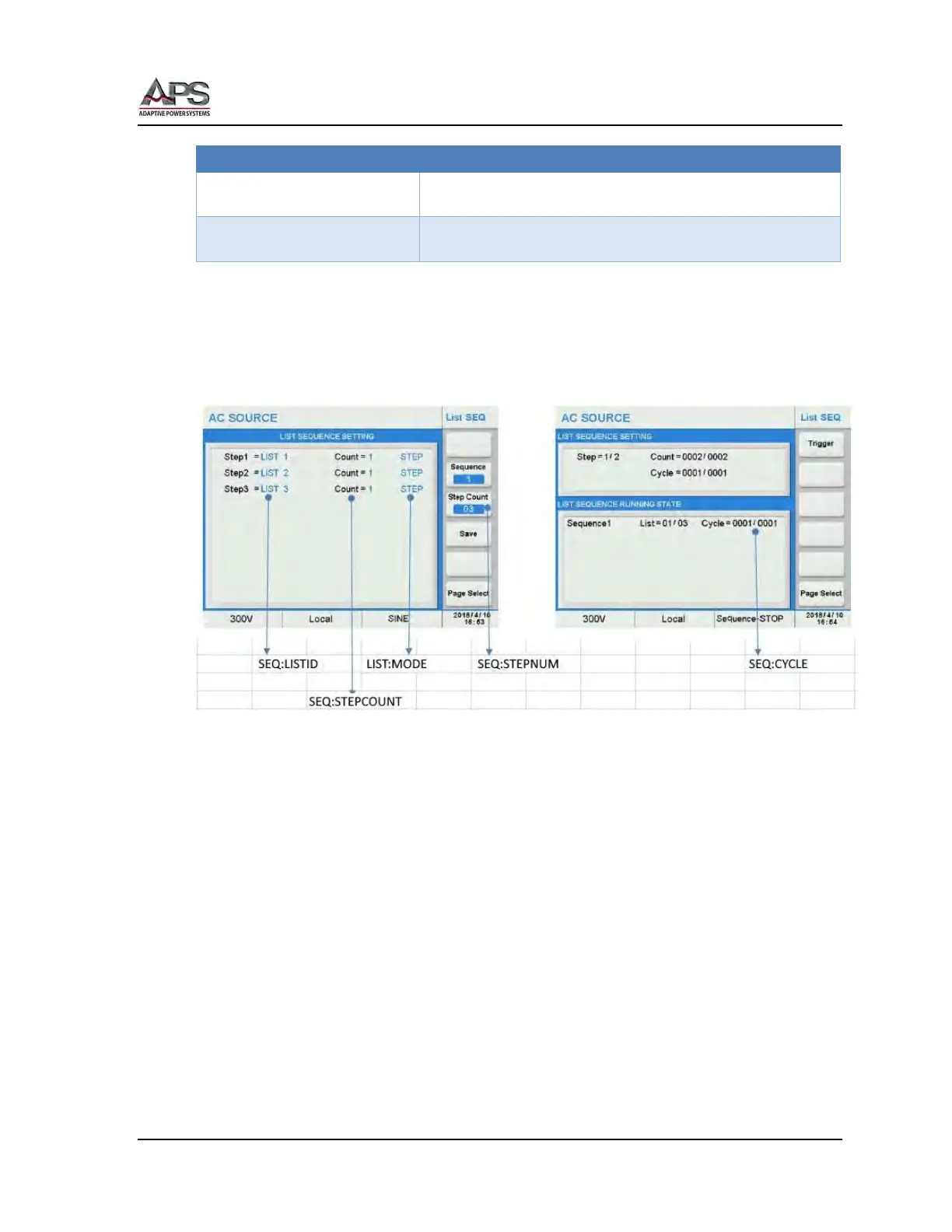

Figure 7-1: Transient Front Panel vs Commands relationship
Example 1: For steps in list #3 programming using individual step commands.
SEQ:STEPNUM: 1
SEQ:CYCLE: 1
SEQ:LISTID:1
SEQ:STEPCOUNT: 3
LIST:STEPNUM: 4
LIST:STEPID: 1
LIST:BASE: 1
LIST:WAVEFORM: A
LIST:COUNT: 1
LIST:TIME: 1000
LIST:STEPMODE: 0
LIST:DEGREE: 0
LIST:VACSTART: 220
LIST:VACEND: 220
LIST:VDCSTART: 0
LIST:VDCEND: 0
LIST:FREQSTART: 50
LIST:FREQEND: 50
