OUTPUT MODE Screens
The OUTPUT MODE screen provides access to select special functions and built-in test
modes. Some of these functions are only available on the Enhanced versions of the CPS100
product family (CPS100E models). The Output Mode Menu structure is shown in the
diagram below.

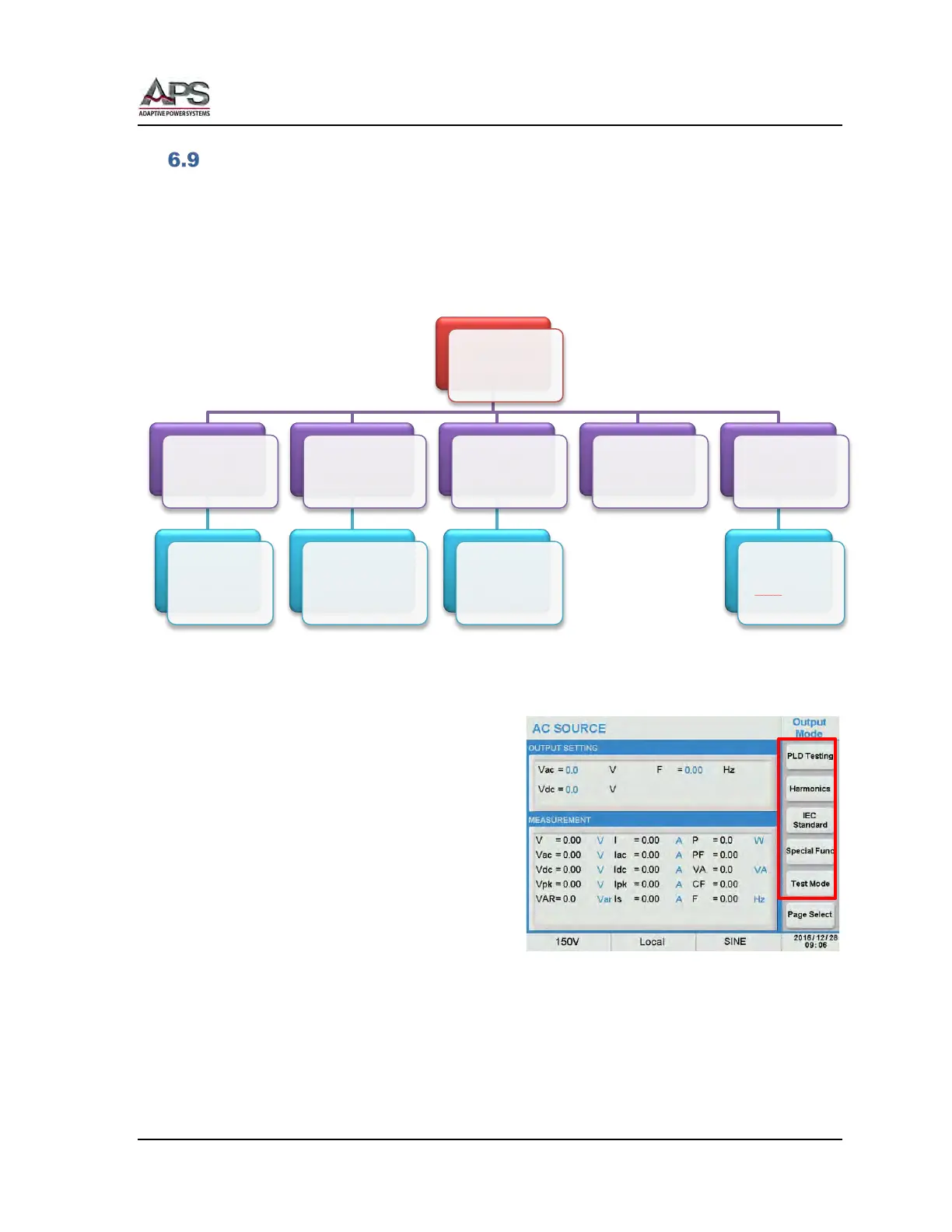

Figure 6-6: Output Mode Menu Structure
The following Soft Keys are available in the
Output Mode screen to access these
functions:
• Power Line Distortion Testing (PLD)
Enhanced version only:
• Harmonics
• IEC Standard
•
Special Func.
• Test Mode
Output
Mode
PLD
Setting
• List Mode
• Pulse Mode
• Step Mode
Harmonics
• Synthesis
• Inter- Harmonics
• Harmonic Meas.
• User
IEC
Standard
• IEC 4-11
• IEC 4-13
• IEC 4-14
• IEC 4-28
Test Mode
Special
Functions
• Transient
• Triac
Dimmer
To Next Page
