6.9.4 Special Functions.
The Enhanced version CPS100 Series power
source support the following special test
functions:
• Transient Test
• Triac Dimmer

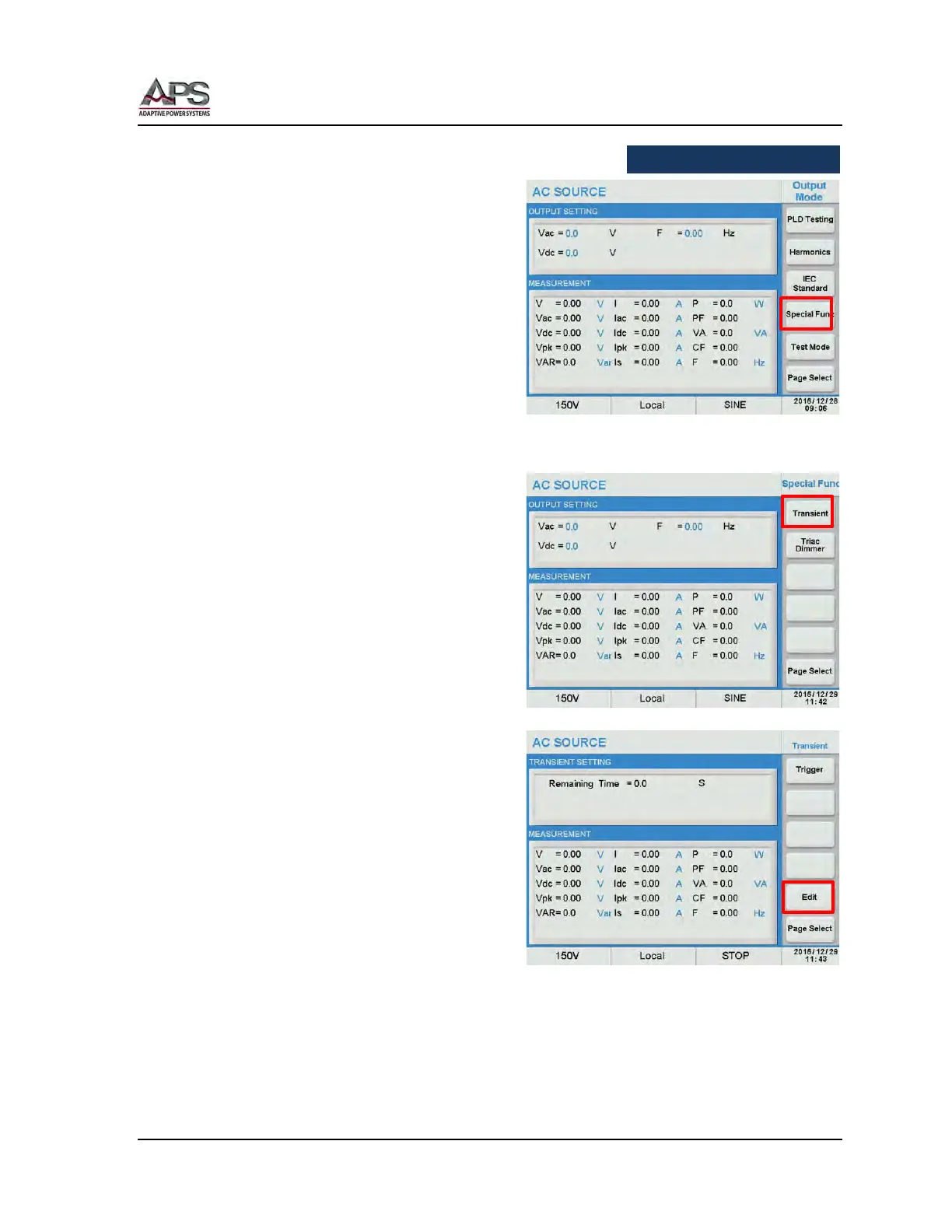

To access these special functions, press the
Special Func soft key from the Output Mode
menu.
This will bring up the Special Func menu
screen.
6.9.4.1 Transient Test
Transient tests simulate the effects of high-
speed voltage spikes and sags on a unit
under test. This testing can point to
vulnerabilities in AC or DC powered products
during development or production test.
To select the Transient test mode, press the
Transient soft key in the Special Func menu.
The transient test can be set up from the Edit
screen. Press the Edit soft key to enter Edit
mode.
