CPS100 SERIES OPERATION MANUAL
SECTION 5:
Unpacking and Installation
Entire Contents Copyright 2018 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS.
APS CPS100 Series Power Source Operation Manual Page 63 of 231
Installation of Optional Remote Control Interfaces
The CPS100 Series power sources provide
a number of available interface options
that can be installed in the field. The
interface option slot is located at the rear
panel making it easy for the user to plug in
a new interface or replace an existing one.
Refer to the illustration on the right for
correct assembly details.
Optional interface cards for 2U Units are:
• Remote I/O Card
• GPIB & LAN Interface Card
Optional interface cards for 3U and 4U
Units are:
• System Interface Card
• GPIB Interface Card

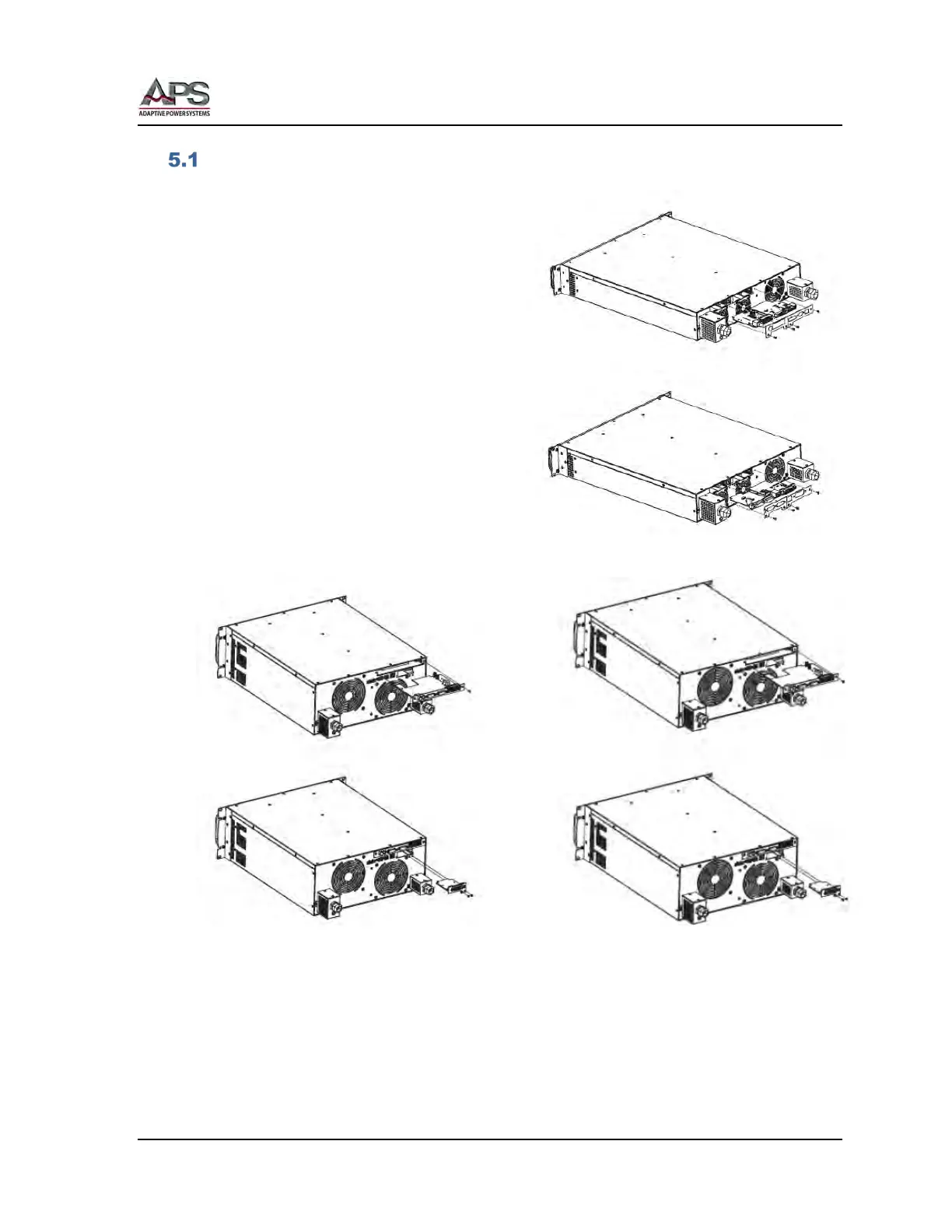

Figure 5-15: Interface Installation on 3U and 4U Models
Figure 5-14: Interface Installation on 2U Models
