6.7.1.5 Slew Rate Programming

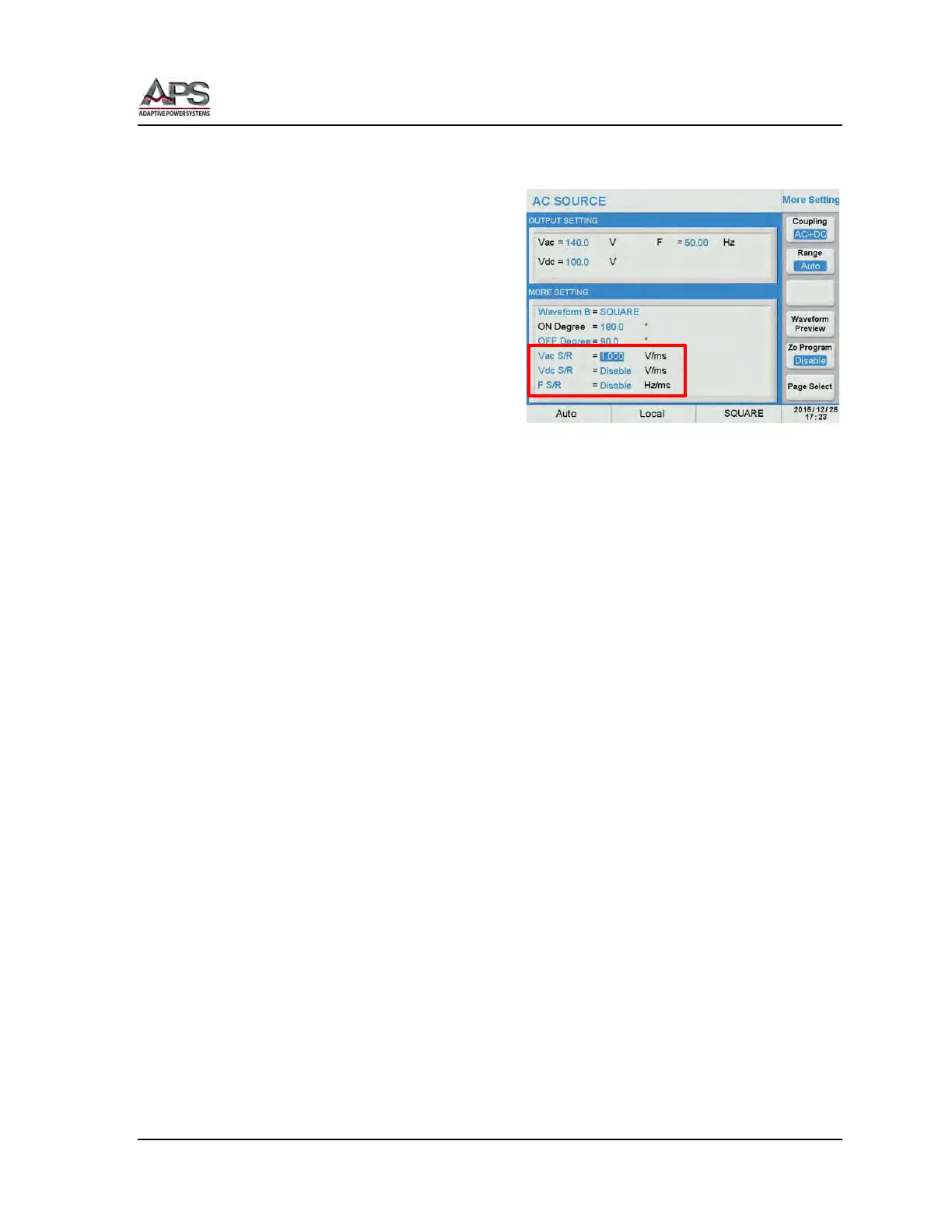

Slew rates for Vac, Vdc and Frequency can be
set in the More Setting screen using these
three fields:
• Vac S/R
• Vdc S/R
• F S/R
Slew Rate settings are in Volts per msec for
voltage and Hz per msec for frequency.
When set to Disable output changes occur as
fast as the power source is able to change its
output.
Programmable slew rates set values supported are as follows:
Vac slew rate: 0.001 V/ms ~ 1200.000 V/ms (or Disable)
Vdc slew rate: 0.001 V/ms ~ 1000.000 V/ms (or Disable)
Frequency slew rate 0.001 Hz/ms ~ 1600.00 Hz/ms (or Disable)
Note: If the user programs a slew rate setting, the ON Degree (Start phase angle of an AC
output waveform may not be directly visible. It can be inferred however from the
waveform cycle and frequency setting.
