5-64
Operation
X6 - P/N 6525032M1
Operating Hydraulic Motors
Connect hydraulic motors to the 1st remote circuit to make
sure of a constant flow of oil to the motor.
Stop the engine. Move remote control lever forward to
the float position.

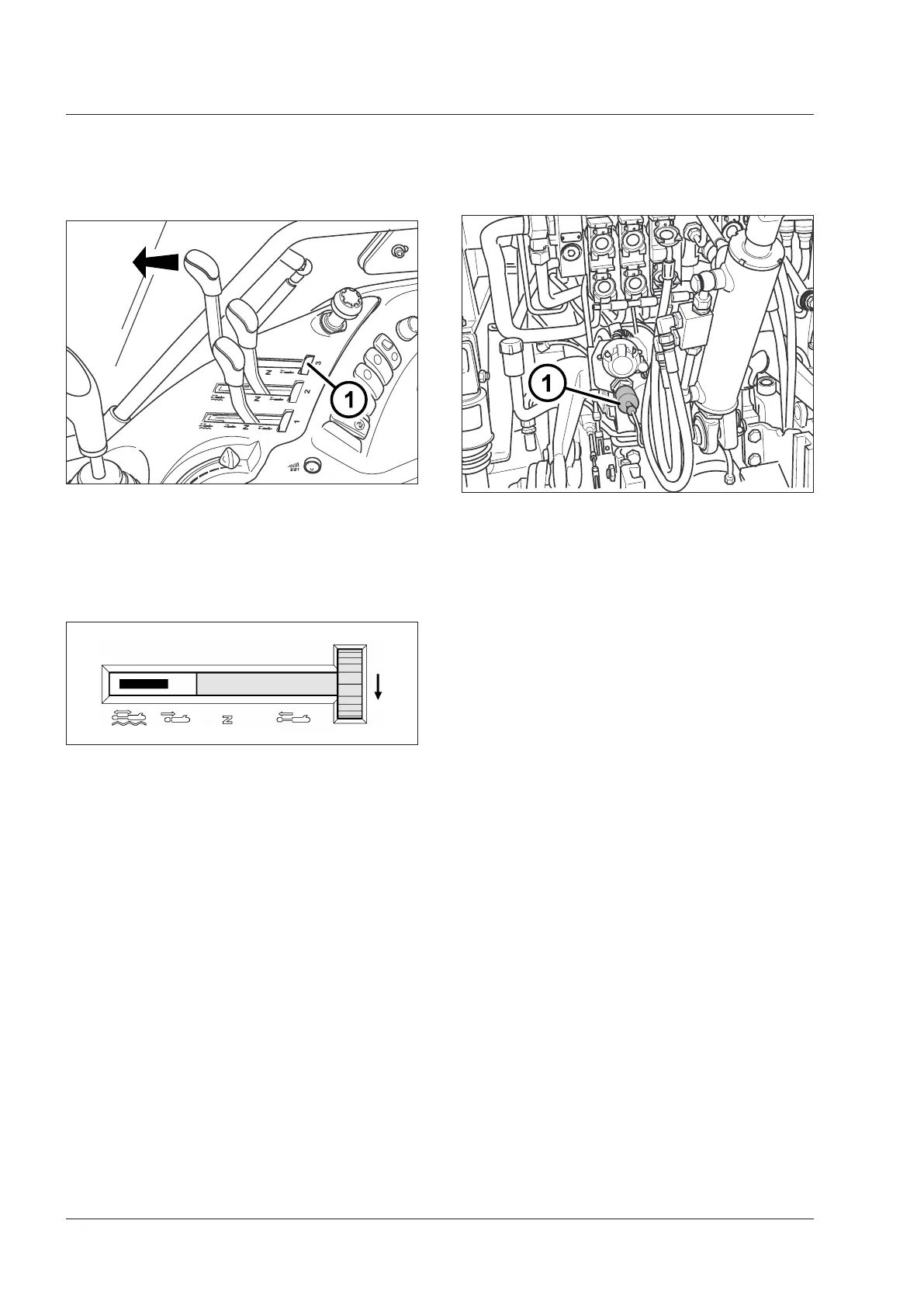

Turn the locking control (1) fully anti-clockwise (three posi-
tions from neutral), so that the movement of the control
lever is limited to two positions: retract and float.
In this way the lever has only available the two positions
to be used with hydraulic motors.
To engage the hydraulic motor, start the engine and
move the control lever forward from the float position
until against the lever lock. The hydraulic motor will now
operate.
To disengage the hydraulic motor, move the remote
control lever forward to the float position. Wait for the
hydraulic motor to slowly stop.
DO NOT DISENGAGE THE LEVER LOCK. Allowing the
control to return to the neutral position during motor ap-
plication will cause the motor to stop immediately. This
may cause damage to the hydraulic motor, hoses and
equipment.
To change the direction of rotation of the hydraulic mo-
tor, change the hoses over on number 1 remote coupler.
IMPORTANT:To avoid damages to hydraulic pumps in
tractors, all hydraulic fluid flowing back from all imple-
ments must be returned through the return circuit of the
hydraulic motor.
Free discharge
Hydraulic Motor Return Circuit (if
equipped)
The hydraulic motor return circuit can be used to reduce
restriction in the remote hydraulic motor return line. This
will result in more efficient hydraulic motor operation.
To use the hydraulic motor return circuit, connect the
return line from the hydraulic motor or implement to the
connector (1).
