Controls - Cab
3-7
3
P/N 6525032M1 - X6

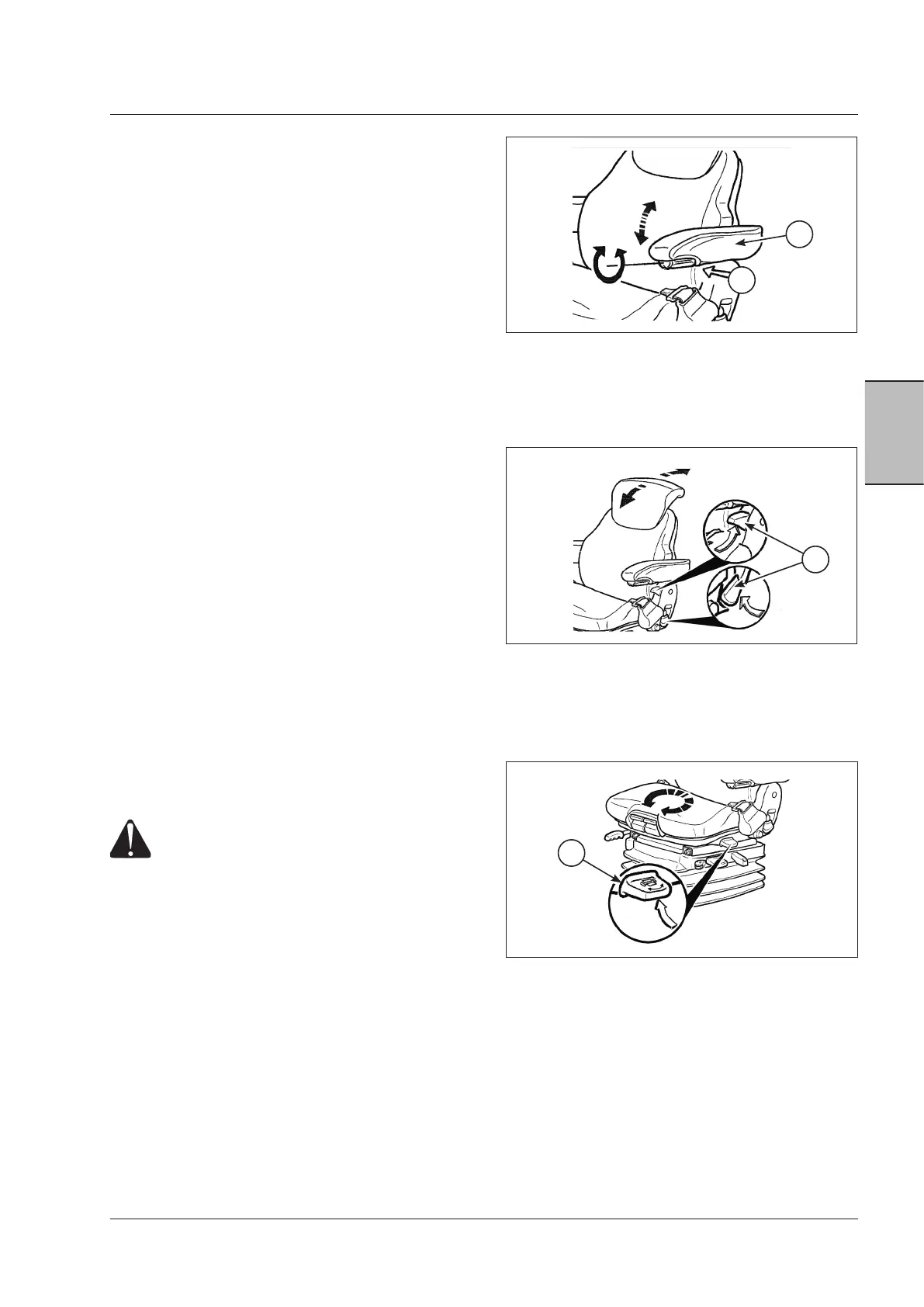

Fig. 3-12
1
11. Back rest adjustment
(according to model) (Fig. 3-12)
Pull up the lever (1) - the position depends on model.
Tilt the back rest to and fro to the required position.
Release the lever (1) to lock the back rest.
10. Tilt adjustment of armrests
(if installed) (Fig. 3-11)
To adjust the tilt of the armrests (1), turn the knob (2)
under the armrest.
Turn the knob:
• to the outer side of the seat to tilt the armrest up,
• to the inner side of the seat to tilt the armrest down.
Fig. 3-11
1
2
12. Seat swiveling (if provided)
(Fig. 3-13)
WARNING: Danger! Danger of losing control.
DO NOT use the lever that blocks the seat
swiveling while driving.
Operation
Pull the lever (1) up to enable seat swiveling.
The seat is now free to swivel to the right or left with 10°
(20° **) increases up to end of travel.
After adjustment of the seat, operate the locking lever
that should snap into the required position with a click-
ing sound.
IMPORTANT:
the correct driving position is with the seat
in central position.
** According to model
Fig. 3-13
1
