Electrical adjustment of the rearview
mirrors (if equipped)
(1-Fig. 3-50)

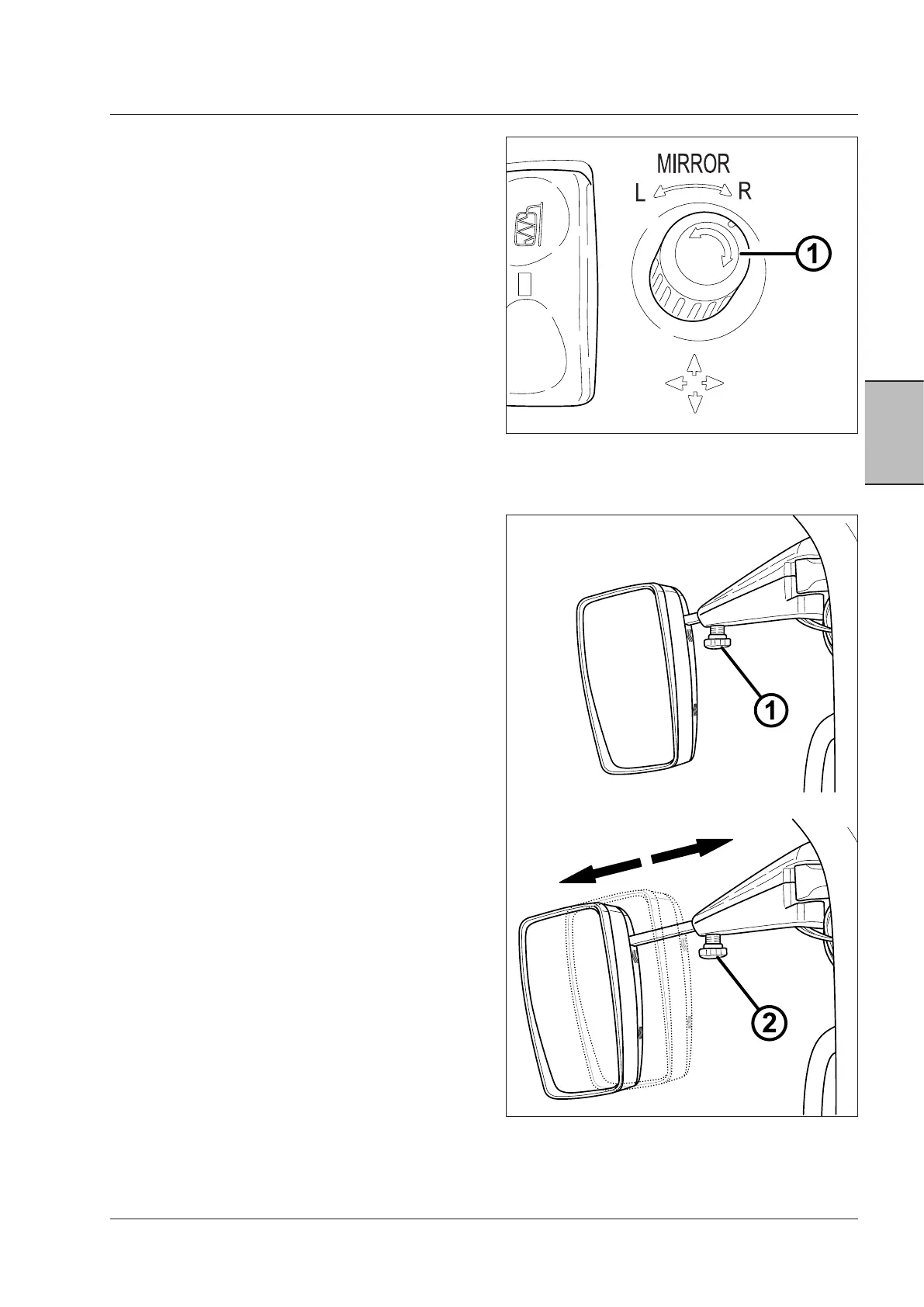

The mini joystick (1) is used to move the rear view mirrors.
Adjust the mirrors as follows:
• Turn the joystick clockwise (right-hand mirror) or anti-
clockwise (left-hand mirror) to select a mirror (there is
no neutral middle position).
• When a mirror is selected, move the joystick along 4
axes to move the mirror accordingly.
Adjustment of rear view mirror sup-
ports
Fig. 3-51
The rear view mirror supports can be extended to have a
better rear view according to implement size.
1. Loosen the knob (1) and change the extension in the
required direction.
2. Tighten the knob again to fix the support extension in
the required position.
Fig. 3-50
Fig. 3-51
