Maximum heating (Fig. 3-64)
Maximum heating is reached by setting the cab tempera-
ture at a value over 28°C.
The knob (2) must be turned fully clockwise. The LCD
display shows the symbol “HI”.
The LED (1) in the compressor enabling button is on.
Maximum cooling (Fig. 3-65)
Maximum cooling is reached by setting the cab tempera-
ture at a value under 18℃.
The knob (2) must be turned fully anticlockwise. The LCD
display shows the symbol “LO”.
The LED (1) in the compressor enabling button is on.
Defrost function (Fig. 3-66)
The defrost function is enabled by the button (2). The
LED (1) in the button is on.
The compressor is enabled (A/C LED on).
The LCD display shows the symbol “HI”.
To disable the defrost function and restore the previous
condition, press the button (2) again (the lamp goes off).

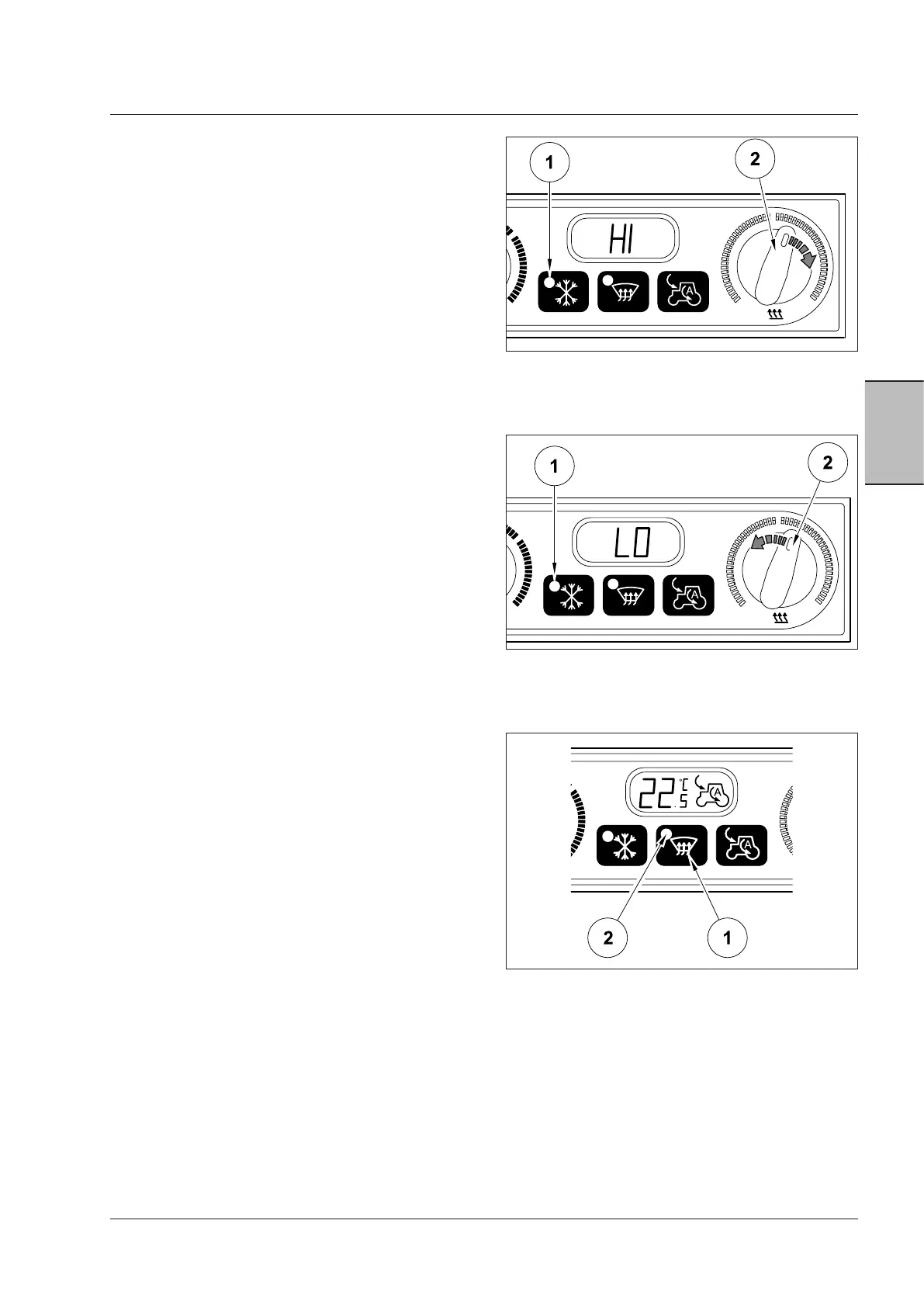

Fig. 3-64
