Maintenance Manual
E4.08.04
Issue date: 14-Dec-2015
Page: 24-28

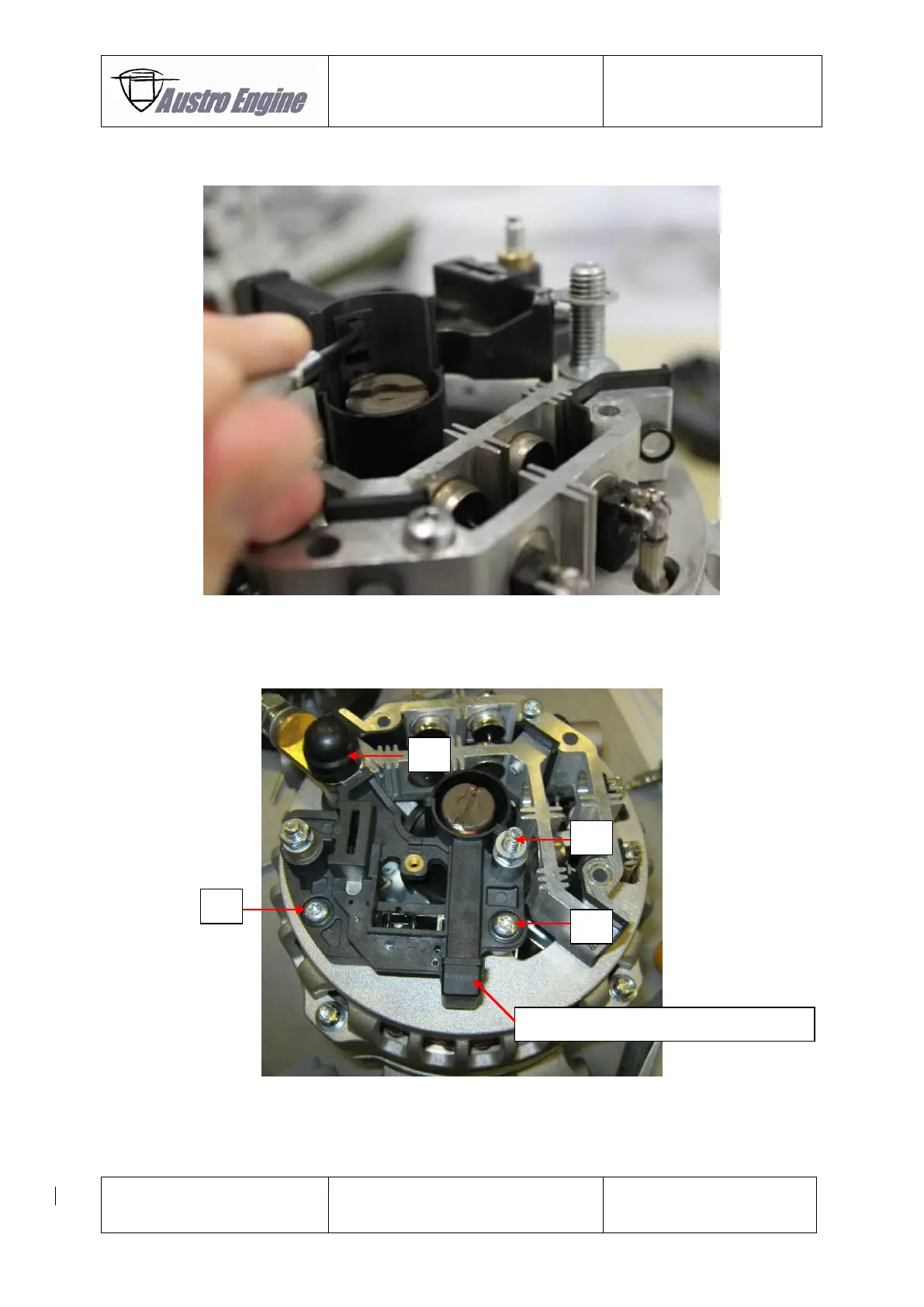

The picture below shows the correctly placed Brush Holder Assembly on the alternator.
Fig. 24 - 39 Correctly placed Brush Holder ASSY
Fix the Brush Holder Assembly with screws R1; R2 and R3 using fastening torque 1,6 – 2,3 Nm, and
terminal screw T2 with fastening torque 9 - 13 Nm.
Fig. 24 - 40 Alternator with removed plastic cover
Brush Holder ASSY E4A-91-410-000
R1
R2
R3
T2
