Maintenance Manual
E4.08.04
Issue date: 14-Dec-2015
Page: 24-29
Place the black plastic cover of the alternator on the alternator backside.
Screw down the torx screws G and G2 using fastening torque 1,6 – 2,3 Nm.
Screw down the nut of W (mounted above R1) wit 2,7 – 3,8 Nm.

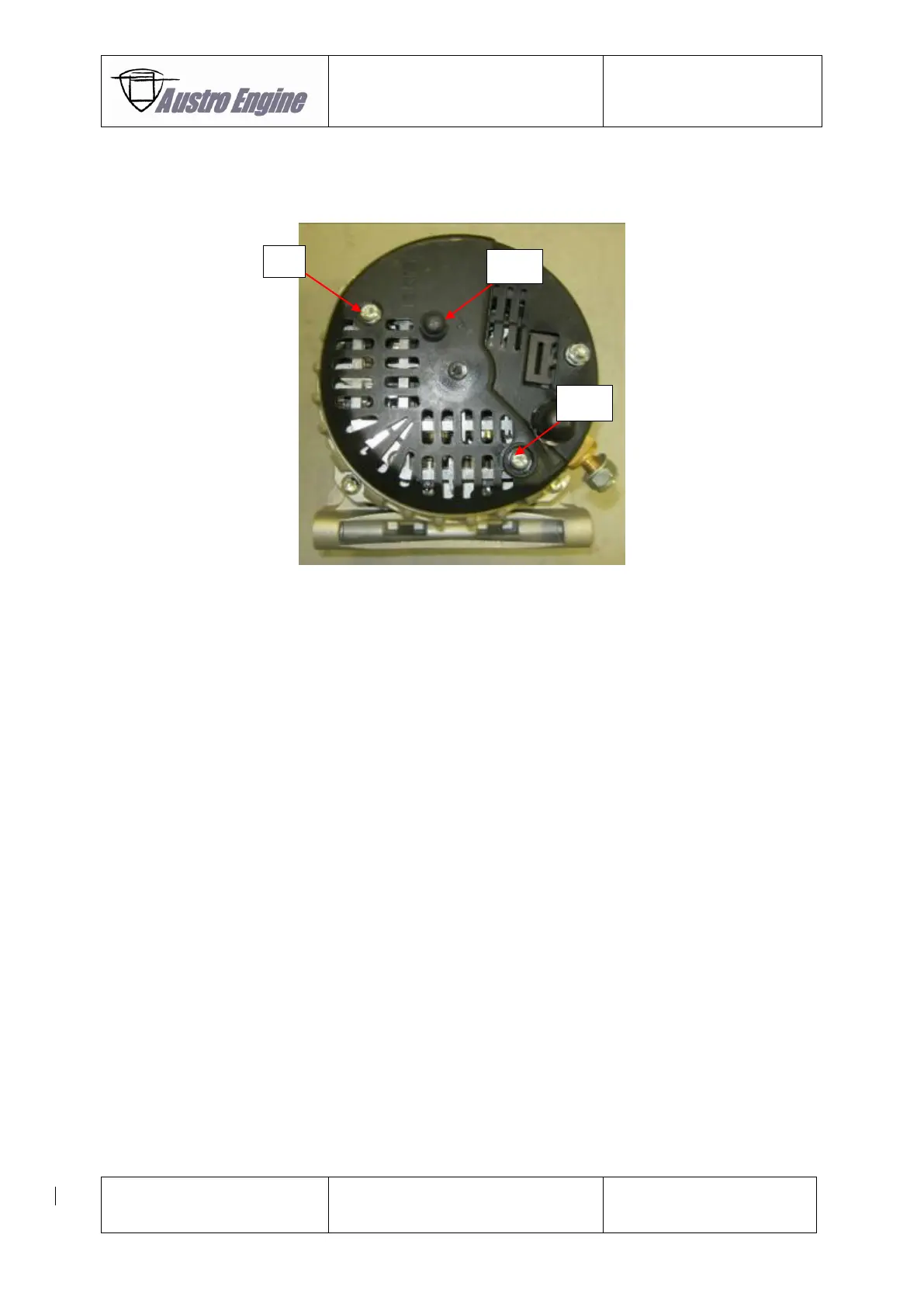

Fig. 24 - 41 Alternator back side
After reassembly, the alternator has to be functionally checked. Therefore continue with
Chapter 24-31-40 Functionality Check.
