Austro Engine AE330 - Page 176

Maintenance Manual
E4.08.04
Issue date: 14-Apr-2015
Page: 71-40
Revision no: 25

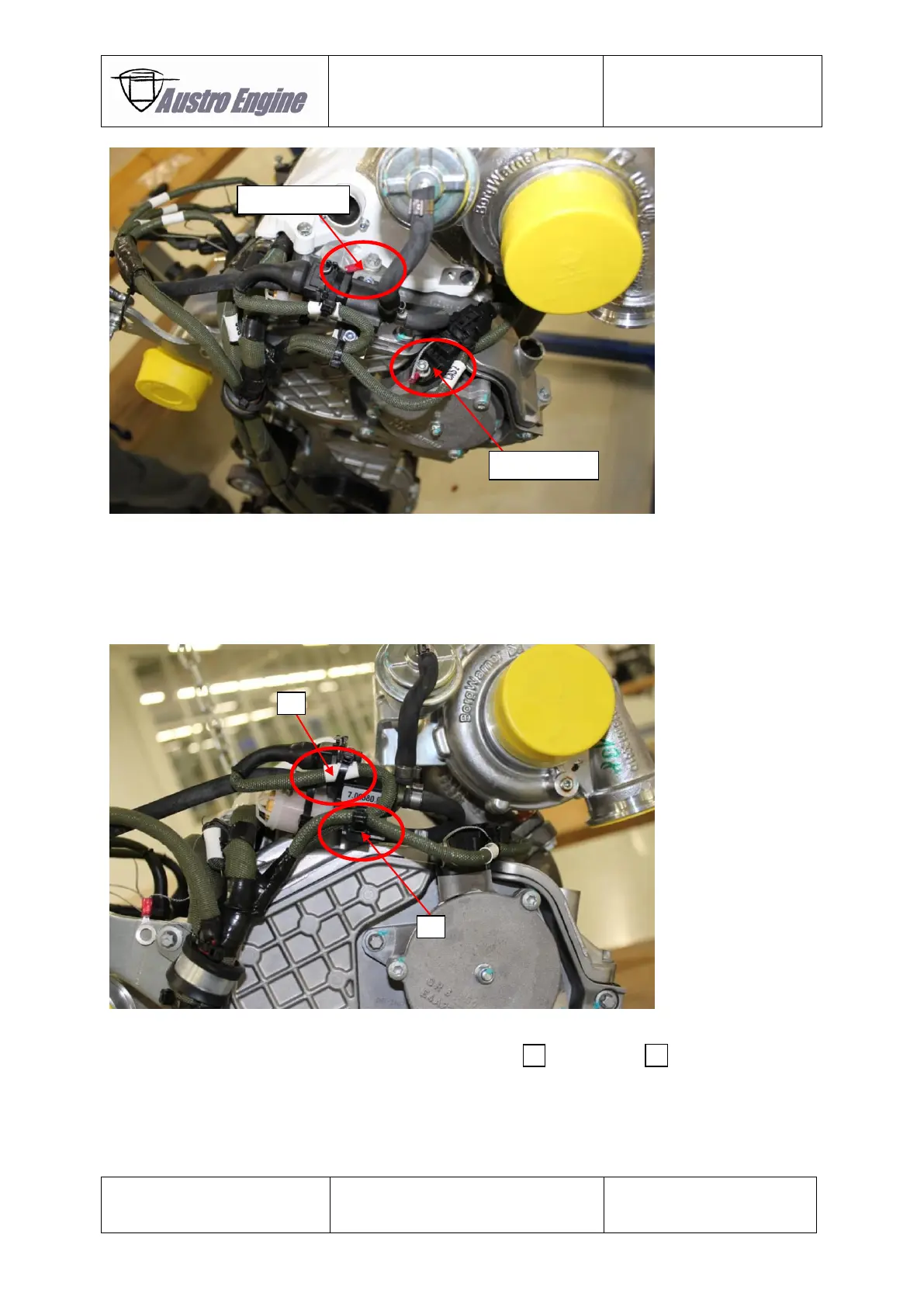

Fig. 71 - 54
Pigtail of CAS2 has to be connected sensor mounting screw (12 Nm), pigtail of BPA has to be
connected to injector cover plate (9Nm), as shown at Fig. 71 -54.
Branch of CRS2 has to be placed as shown on picture above. Ensure that the branch is not in contact
with the turbo charger.
Fig. 71 - 55
The branch of EPW and CAS2 has to be fixed with edge clip and cable tie as shown at
Fig. 71 – 55.
Pigtail CAS 2
Pigtail BPA
05
06
06
05
