Maintenance Manual
E4.08.04
Issue date: 14-Apr-2015
Page: 71-43
Revision no: 25
Fig. 71 - 60

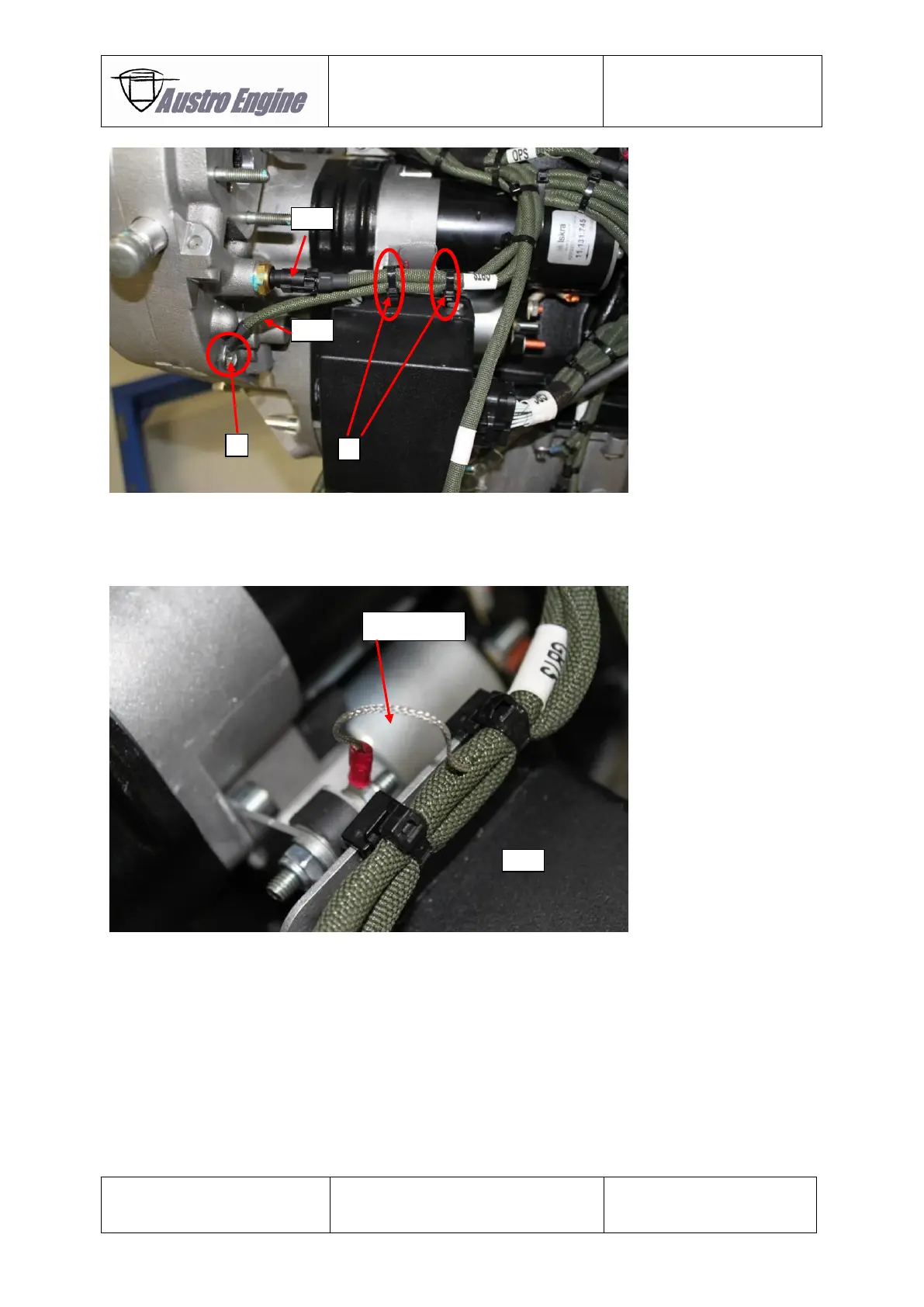

2 edge clips have to be mounted to the GPC holder. The edge clips shall be used for fixation the
branch of GBTS and W11/2 as shown at Fig. 71 – 60.
Fig. 71 - 61
The pigtail of GBTS has to be connected to the GPC holder screw (10 Nm) as shown at Fig. 71 – 61.
07
09
W11/2
GBTS
GBTS Pigtail
GPC
