Step 9:
Put the chafing protection ROUNDIT 2000NX5-5 over the
repair kit cable and the engine harness. The length of
the chafing protection ROUNDIT 2000NX5-5 can be
reduced if necessary.
Ensure that the pig tail is not covered by the roundit.
Step10:
Use a Multimeter to check connection between
the pins stated below:
Connector
Pin
Connector
Pin
X1/2
4
G2 / GEN
1
Step11:
Cable ties PLT1M-M30 and PLT4S-M30 can be used for
fixation of repair kit cable E4A-90-R22-000-000.

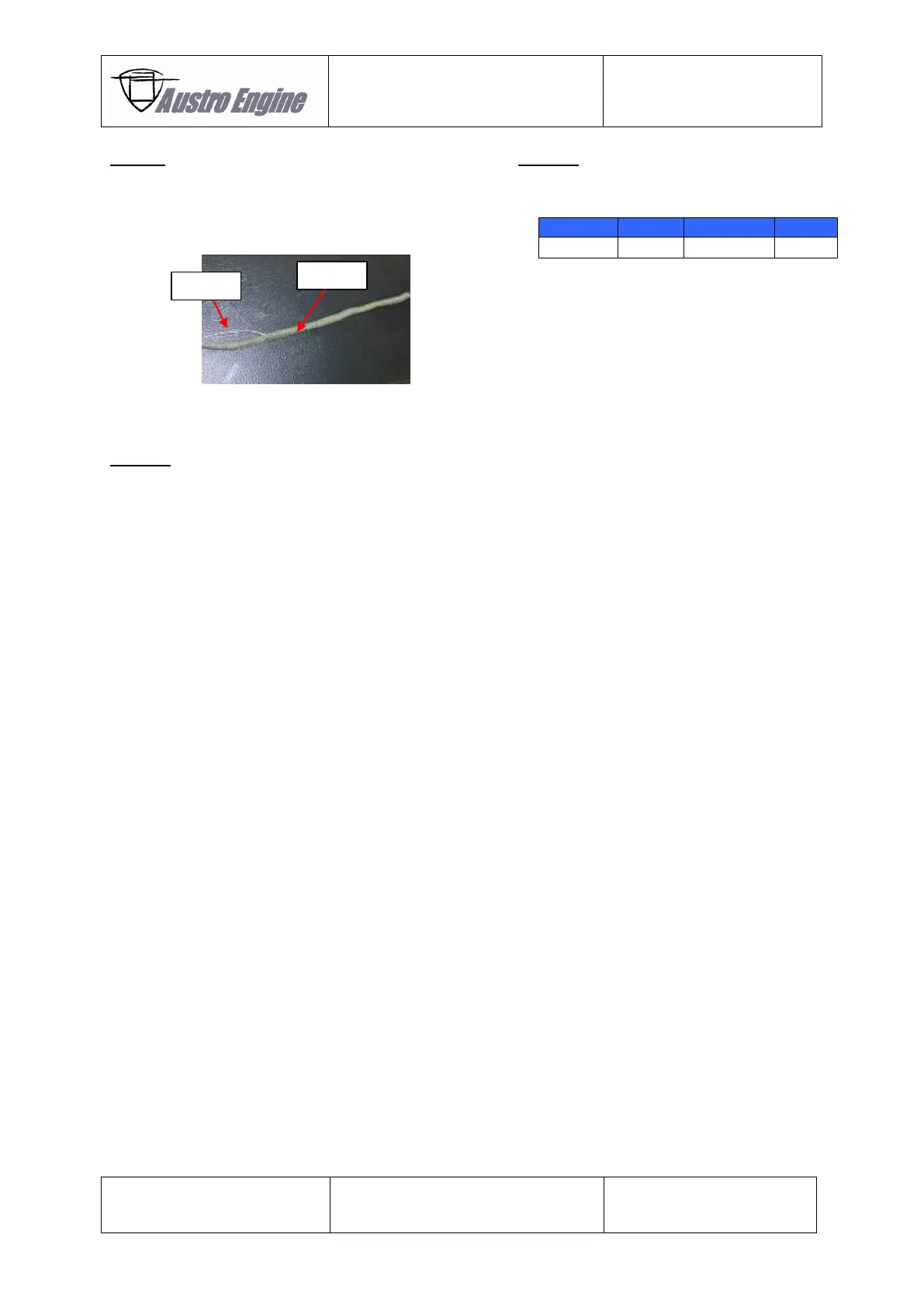

Roundit
Pig Tail
