Austro Engine AE330 User Manual

Maintenance Manual
E4.08.04
Issue date: 14-Apr-2015
Page: 71-61
Revision no: 25
Step2:

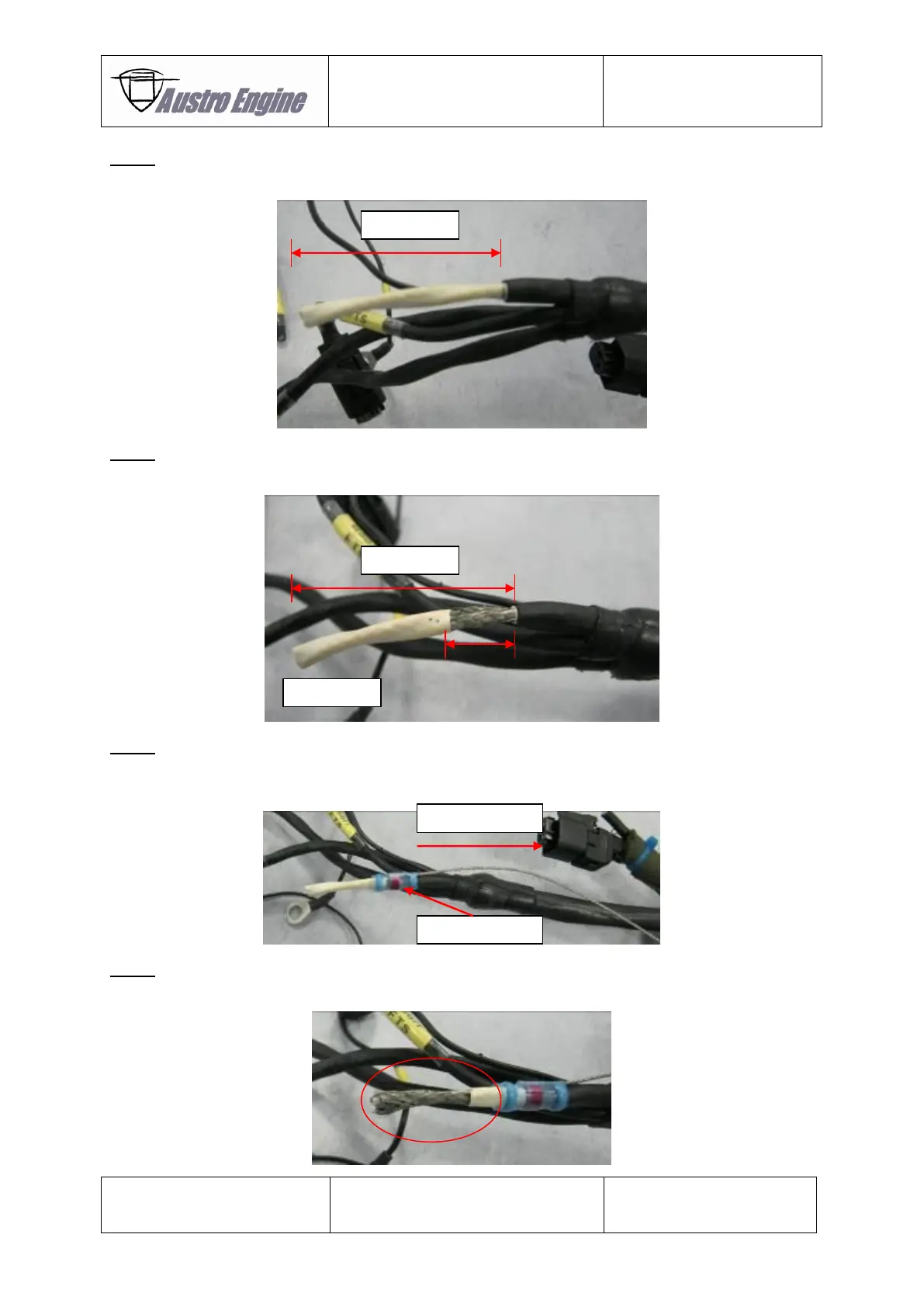

Remove the black isolation as shown in the picture below (~50mm from remaining harness).
Step3:
Remove the white cable isolation down to the shielding of the cable as shown in the picture below.
Step4:
Put the solder sleeve over the cable of the remaining engine harness.
Heat the solder sleeve (300°C – 350°C) with a “hot air gun”.
Step5:
Remove the white cable isolation at the end of the remaining cable harness.
50mm
(+5)
50mm (+5)
10mm (+5)
Solder Sleeve
Pig Tail
Direction
