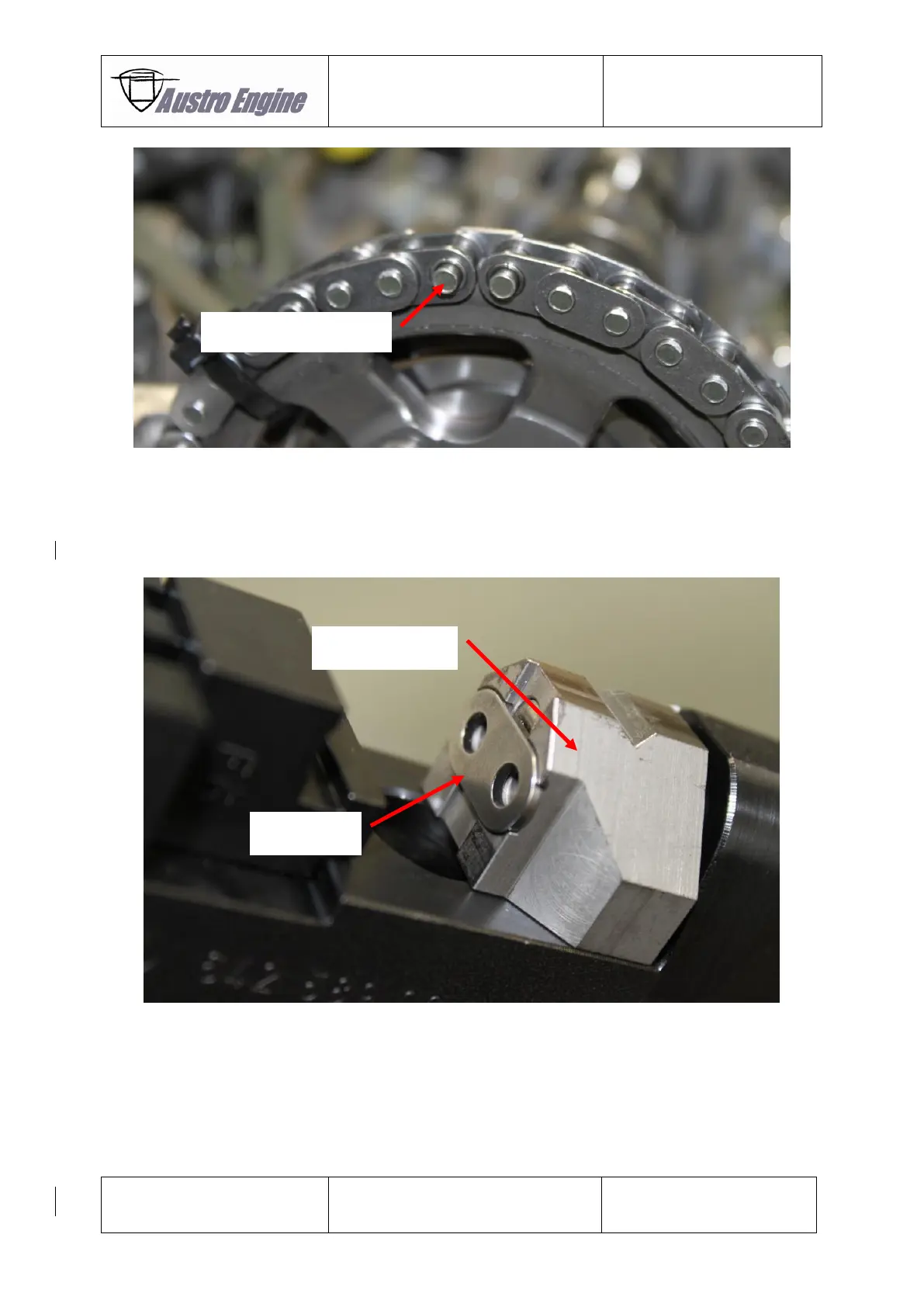

Fig. 85 - 108 Both ends of the new chain connected with the open chain
link
 Close the chain by mounting the chain clip at the open link. Therefore place the clip at
the chain closing tool. A built-in magnet in the pressure pad ensures securing of the
chain clip (see figure above).
Fig. 85 - 109 Chain clip positioned in chain closing tool
Open chain link
Chain clip
Pressure pad
