Maintenance Manual
E4.08.04
Issue date: 14-Dec-2015
Page: 85-81
Revision no: 26
• Position the chain closing tool with the clip over the free ends of the link’s pins. The
riveted ends of the connection link must sit in the groove of the tool as shown in
Figure 85 - 81.
• Turn the spindle slowly to make sure that the pins slip exactly in the holes of the plate.
Turn the spindle up to the correct torque.
• Torque to press plate onto connection link pins: 32 Nm (283 inch-Ibs.)

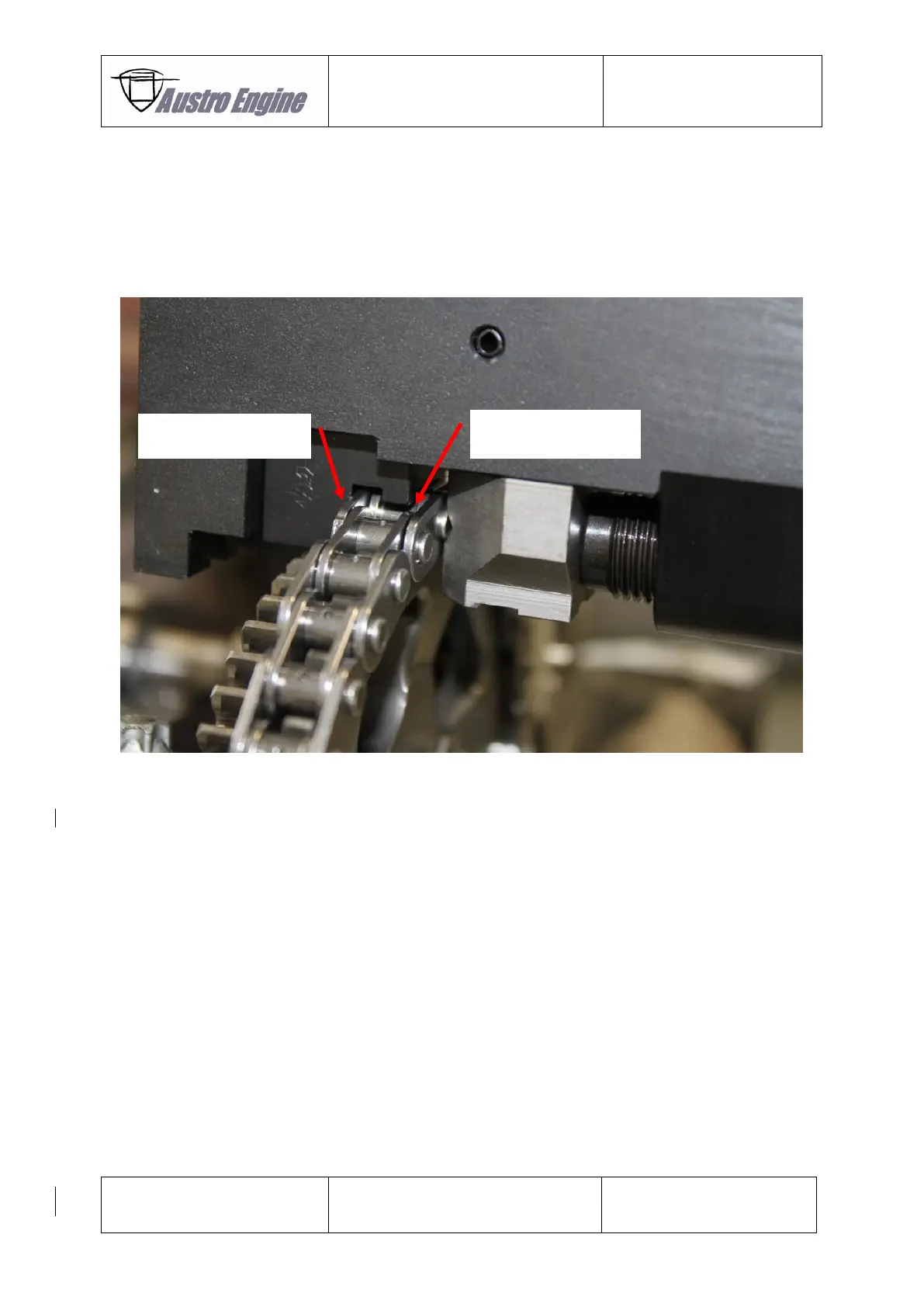

Fig. 85 - 110 Riveting of the chain link
• Turn back the spindle and take the pressure pad out of the tool, turn it thus the riveting
slot of the pressure pad can be used to rivet the chain. Figure 85 - 111 shows the chain
closing tool with the pressure pad is positioned to use the riveting slot.
Open Chain Link
Open Chain Clip
