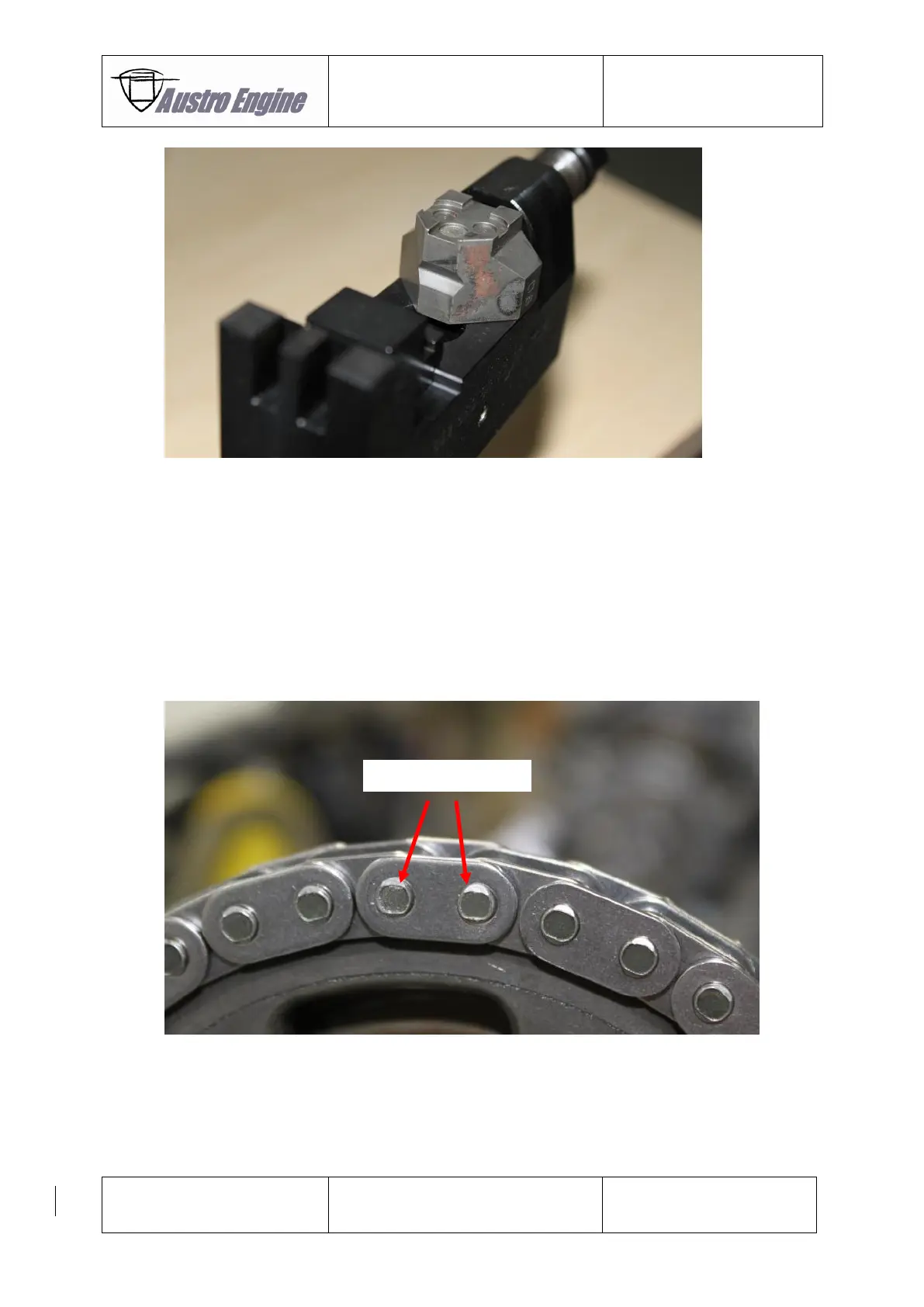

Fig. 85 - 111 Riveting slot at the chain closing tool
• To rivet the pins place the chain closing tool back on the chain. Place the pressure pad
centered over the head of one of those pins, which have to be riveted, as the pins have
to be riveted one by one.
• Turn the screw slowly until the pad gets in contact with the pin’s head. Check again the
alignment of pressure pad and pin, turn down the screw with the correct tightening
torque.
• Tightening torque chain pins: 32 Nm (283 inch-Ibs.)
• Repeat the riveting accordingly on the second pin.
• Remove the chain closing tool and check the riveting of the pin’s head.
Figure 85 - 83 shows the riveted pins of the chain link.
Fig. 85 - 112 Riveted pin heads of the new timing chain
