INSTALLING THE WAVELET KIT
Assembling the Wavelet Kit
The assembly instructions depend on the type of Wavelet Kit. Refer to the Quick Start Guide corresponding to your
kit type.
Connecting to an External Power Source
If you wish to connect the Wavelet device to an external power source, follow these guidelines:
Use a 42-00009 (SAL - 8 - RSC3-S) CONEC connector (refer to Appendix A: Connector 42-00009 datasheet).

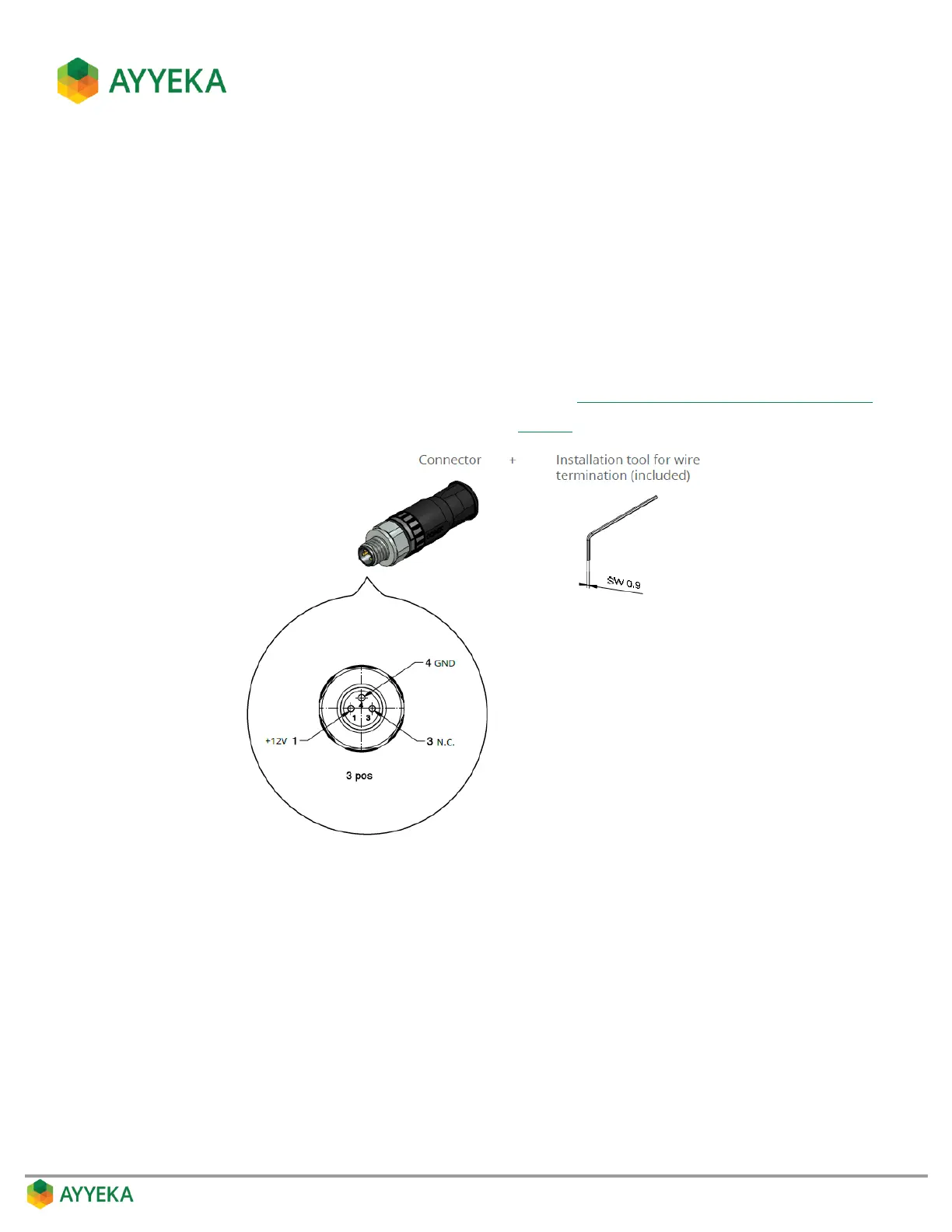

Perform power connector assembly as illustrated in Figure 3.
Figure 3: Power connector assembly instructions
Use a cable with a round and even cross-section having the following specifications:
Cable wire cross section surface area: 0.14-0.5 mm
2
Wire gauge: AWG 26-20
Cable diameter Ø: 4-5.5 mm
