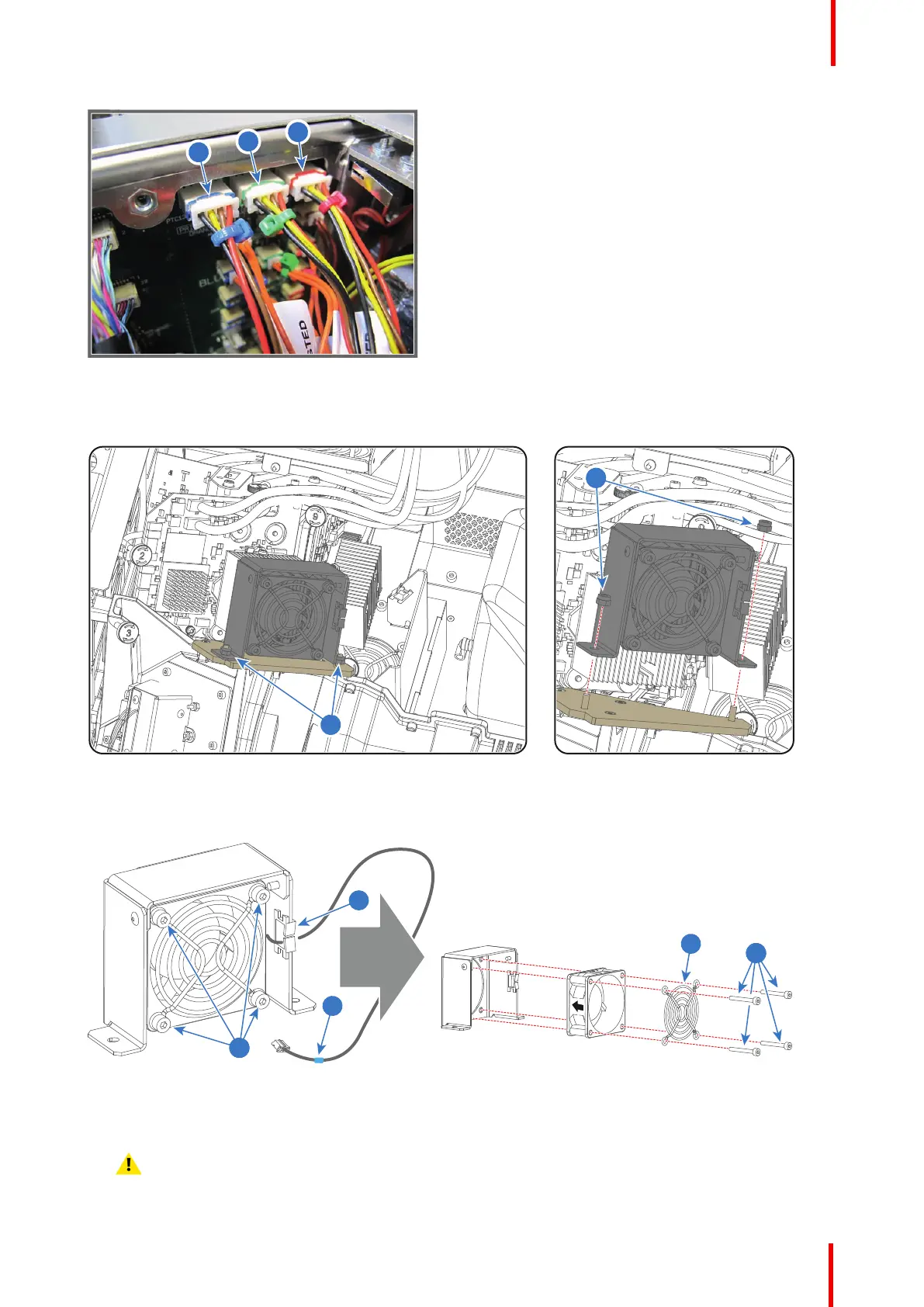

Image 9-25
2. Remove the fan assembly from the chassis. Use a 3mm Allen wrench to loosen the two fixation screws of the
assembly (reference 4 Image 9-26).
4
4
Image 9-26
3. Remove the fan from the assembly. Use a 3mm Allen wrench to loosen the four screws (reference 5 Image 9-
27) as illustrated.
5
6
5
8
9
Image 9-27
4. Mount the new fan on the assembly as illustrated. Place the fan guard (reference 6 Image 9-27) on top of the
fan and fixate fan and fan guard with four long screws (reference 5 Image 9-27) using a 3mm Allen wrench.
Caution: Ensure that the airflow of the fan is towards the heatsink of the Blue channel.
