Barco DP2K SLP Series Service Manual

R5906848 /04 DP2K SLP Series116
1

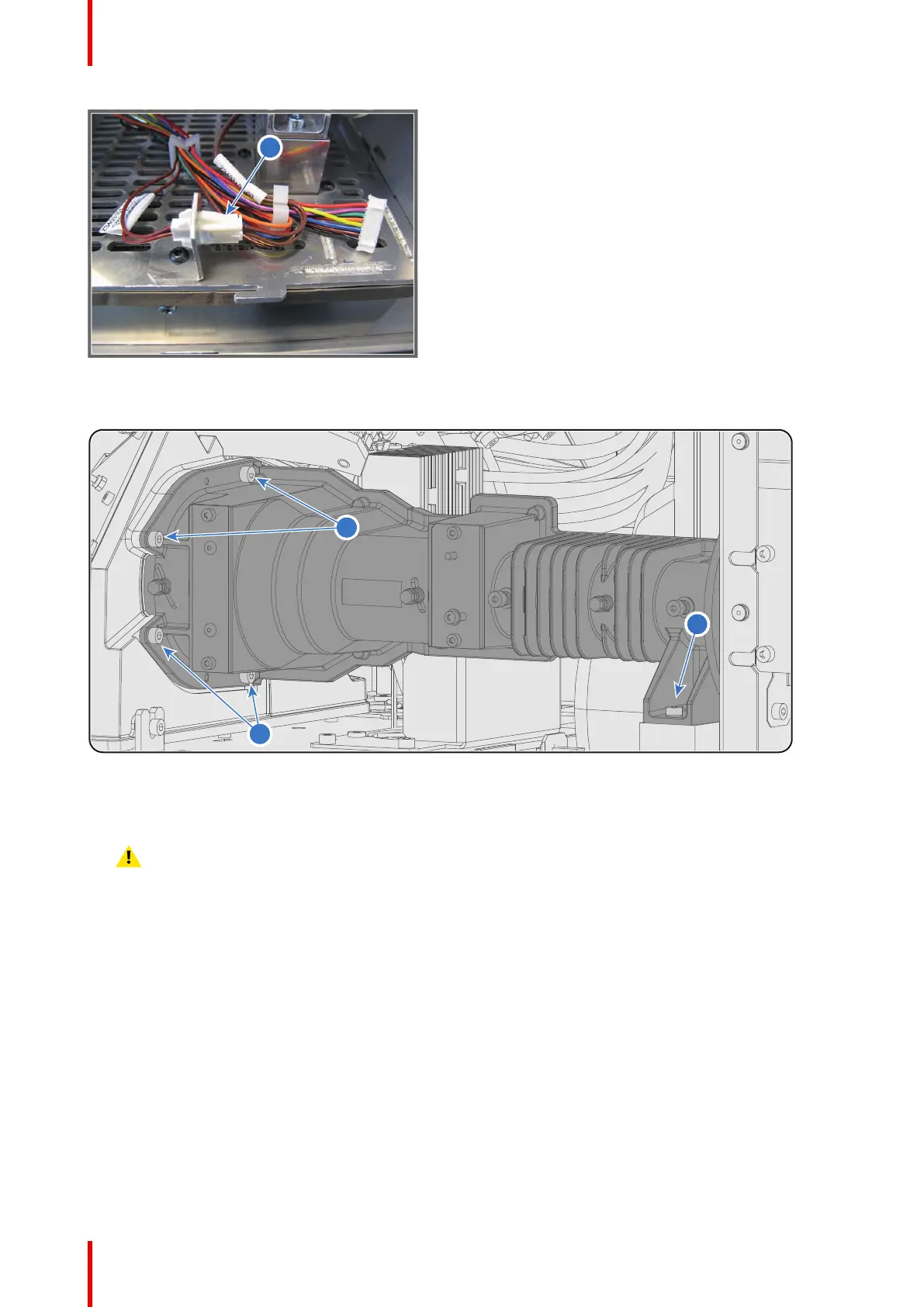

Image 10-3
2. Remove the five fixation screws (reference 2 Image 10-4) of the Light Pipe. Use a 3mm Allen wrench.
2
2
2
Image 10-4
3. Carefully move the Light Pipe one centimeter to the right and then move it gently away from the projector.
Place the Light Pipe on a clean surface.
Caution: Do not bump (accidentally) with the lens (reference 3 ) of the Light Pipe against the projector
chassis.
Light Pipe
