Barco DP2K SLP Series Service Manual

R5906848 /04 DP2K SLP Series 129
520
560
540
580
600
620
700
500
490
480
470
460
380
x
y
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8

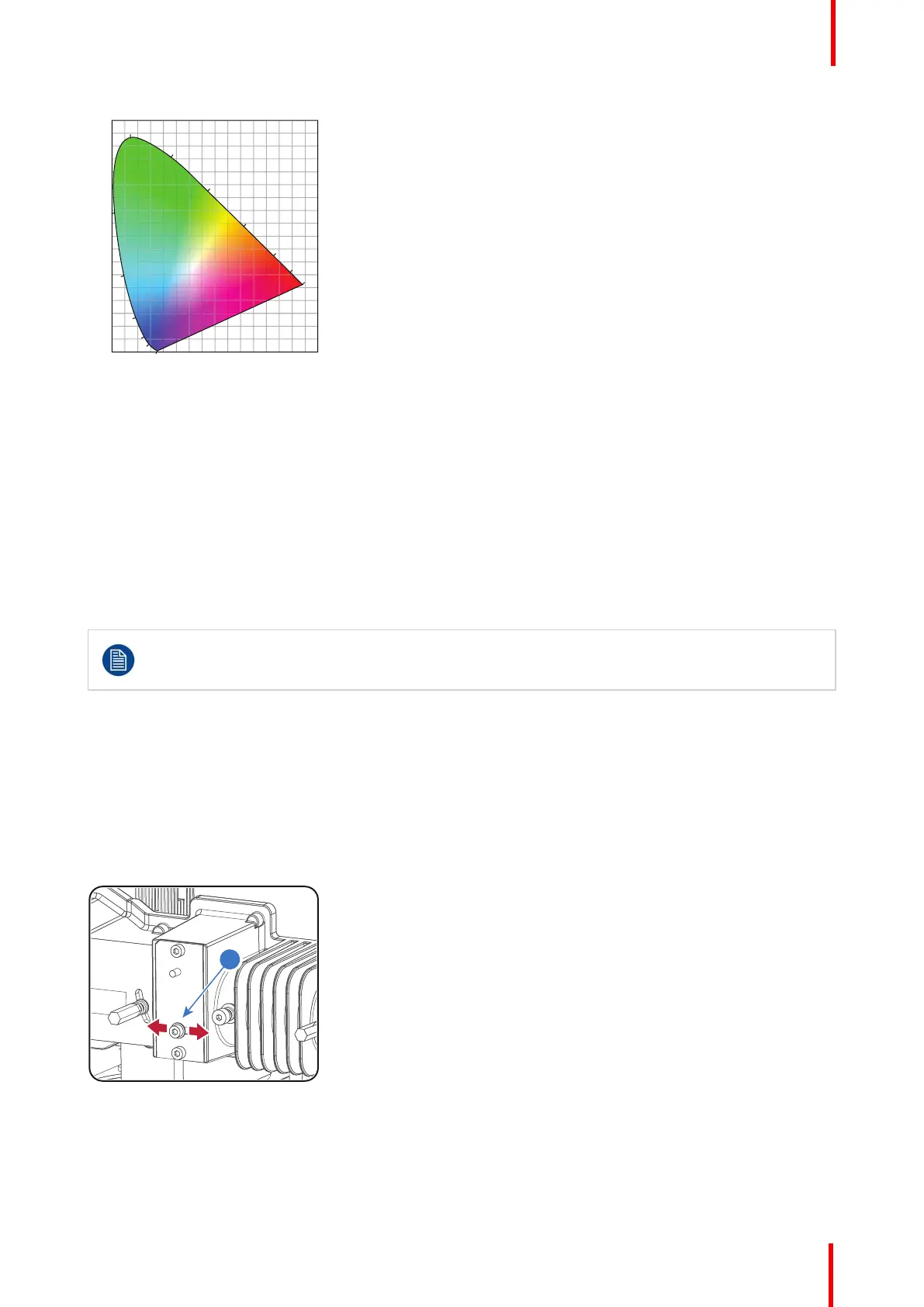

Image 10-21: Color triangle.
Target range for x, y Chroma values
• Uncorrected GREEN: (changes together with red)
- x : 0.245 – 0.285
- y : 0.67 – 0.71
• Uncorrected RED: (changes together with green)
- x : 0.67 – 0.69
- y : 0.31 – 0.33
• Uncorrected BLUE: (no impact)
- x : 0.12 – 0.16
- y : 0.02 – 0.8
To access the Notch Filter the left side cover and the side cover plate have to be removed from the
projector. This procedure assumes that the left side cover and side cover plate are already removed
from the projector.
Required tools
• 2.5mm Allen wrench.
• Colorimeter (e.g. CS-200 chroma meter from Konica Minolta or the PR-650 SpectraScan® from Photo
Research)
How to adjust the Notch Filter?
1. Release the adjustment screw (reference 2 Image 10-22) of the Notch Filter a few turns. Use for that a 2.5mm
Allen wrench.
2
Image 10-22
2. Start up the projector.
3. Display an uncorrected RED test pattern.
Light Pipe
