• 3mm Allen wrench.
How to set up the projector for convergence adjustment?
1. Remove the top cover from of the projector.
2. Remove the left side cover from of the projector.
3. Remove the top cover plate of the Light Processor compartment.
4. Remove the left cover plate of the Light Processor compartment.
5. Place the fan on top of the Light Processor in the upper position as illustrated. Do this by engaging the two
lower slots (reference 2 Image 14-3) into the upper mounting pins as illustrated. The two upper slots
(reference 3 Image 14-3) remain free.

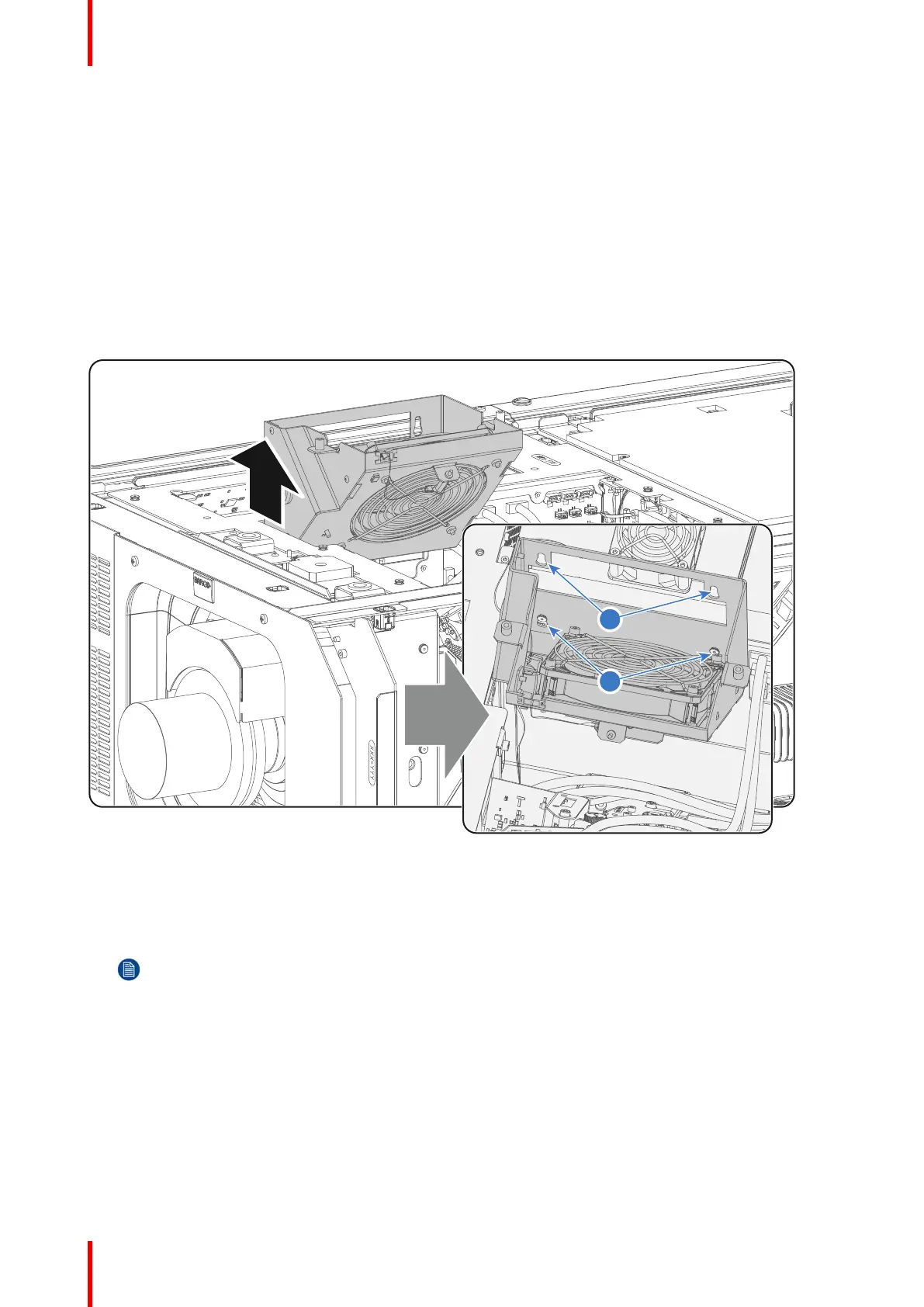

Image 14-3
6. Switch on the projector, activate the light source and open the dowser.
7. Select the convergence test pattern, which is illustrated below (Image 14-4). Use the communicator to activate
the convergence test pattern.
Note: The convergence test pattern can NOT be activated via the PATTERN button on the Local
Keypad.
