Barco DP2K SLP Series Service Manual

R5906848 /04 DP2K SLP Series 191
1
1
Image 16-33

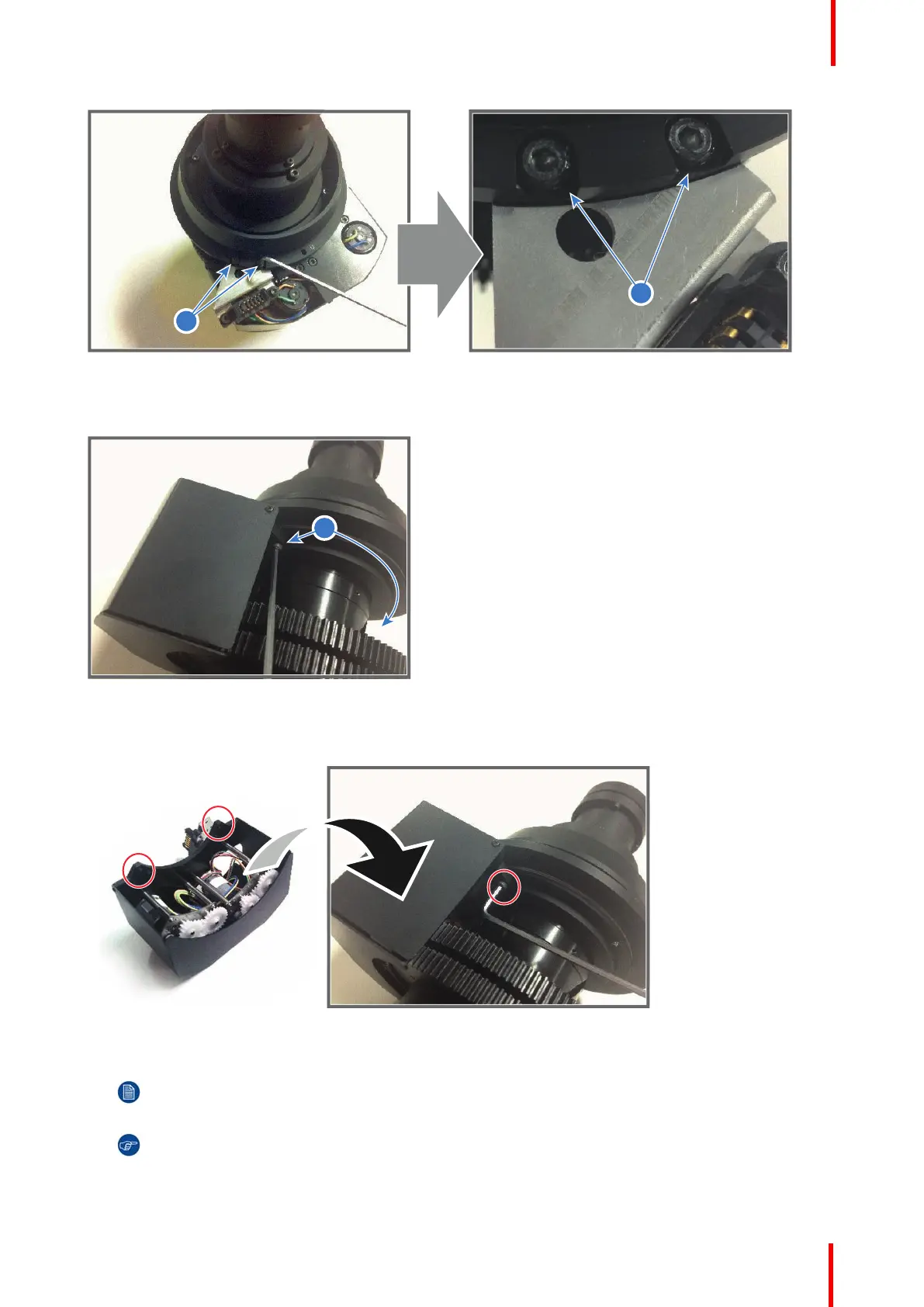

3. Remove the motor unit from the lens by loosening the two screws (reference 2 Image 16-34) of the motor unit.
Use 2.5mm Allen wrench.
2
Image 16-34
4. Place the new motor unit into position and fasten loosely it with 2 hex socket screws M3x8 (reference 2
Image 16-34) . Use a 2.5mm Allen wrench with ball end.
Image 16-35
5. Adjust the meshes between motor gear and lens gear to ensure that the Motor Unit will drive properly.
Note: DO NOT set the lens gears at the terminal position (Focus and Zoom lens gears, respectively)
Tip: Because of limited accessibility, it is recommendable to use the 2.5mm Allen wrench with ball
end. Ball end for fastening easily screws and another end for securing tightly screws.
Lens Holder
