Required tools
• 3mm Allen wrench.
• 2.5mm Allen wrench.
• 15mm nut driver.
How to replace the Button Module of the projector?
1. Remove the rail from the top of the projector. Use a 3mm Allen wrench to loosen the 5 screws (reference 4
Image 18-16).

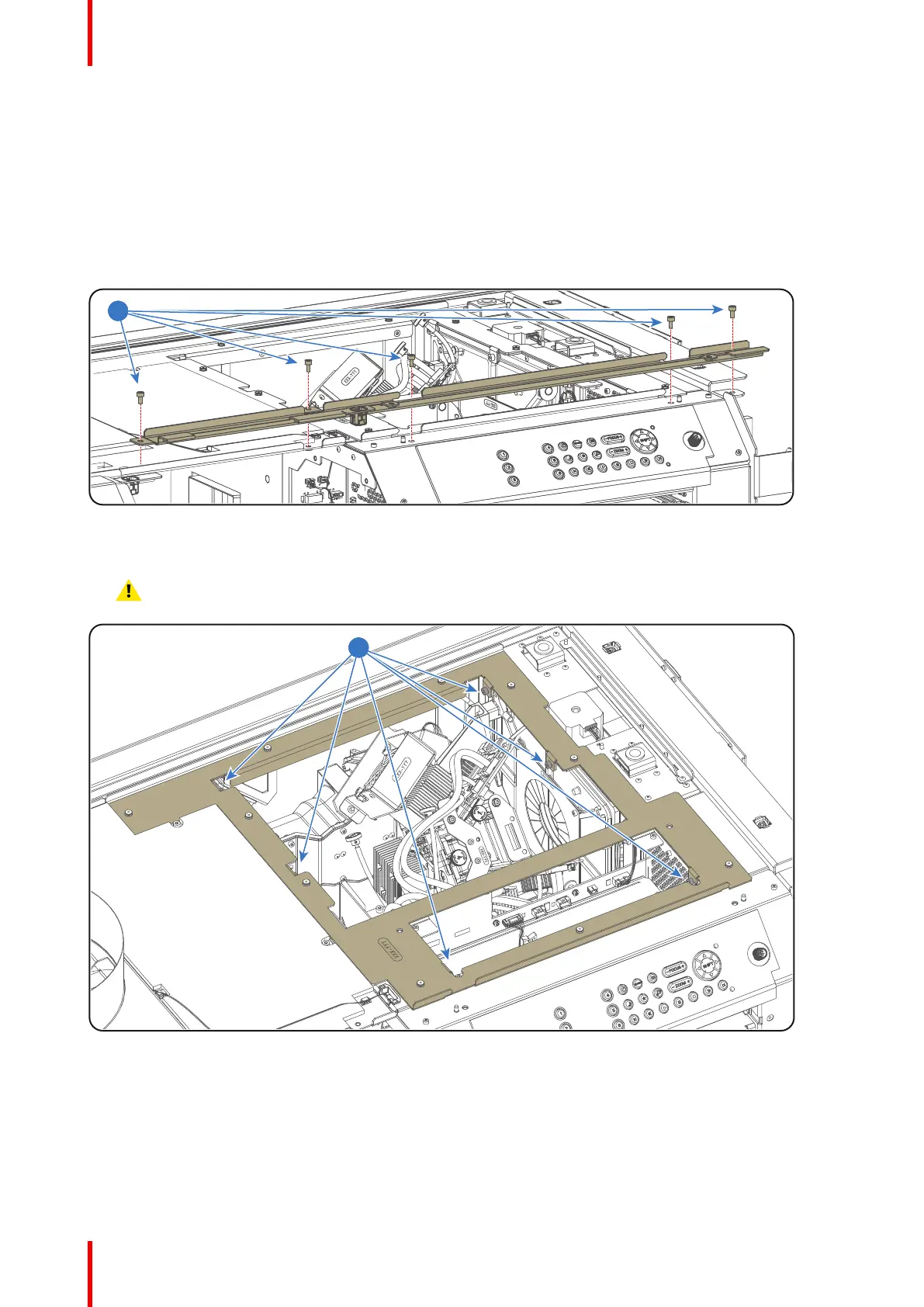

Image 18-16
2. Remove the 6 fixation screws (reference 3 Image 18-17) of the projector top frame. Use a 3mm Allen wrench.
Caution: Take care not to drop the screws inside the projector.
Image 18-17
3. Remove the top frame from the projector chassis.
