Barco DP2K SLP Series Service Manual

R5906848 /04 DP2K SLP Series 299
Situation Solution
Fan end of life Replace the fan. See service manual chapter “Replacement of the fan of
the Light Processor compartment ”, page 104.
Malfunction Cinema
Controller.
Replace the Cinema Control board. See service manual chapter
“Replacement of the Cinema Controller”, page 217.
1
Image 25-11
5
Image 25-12

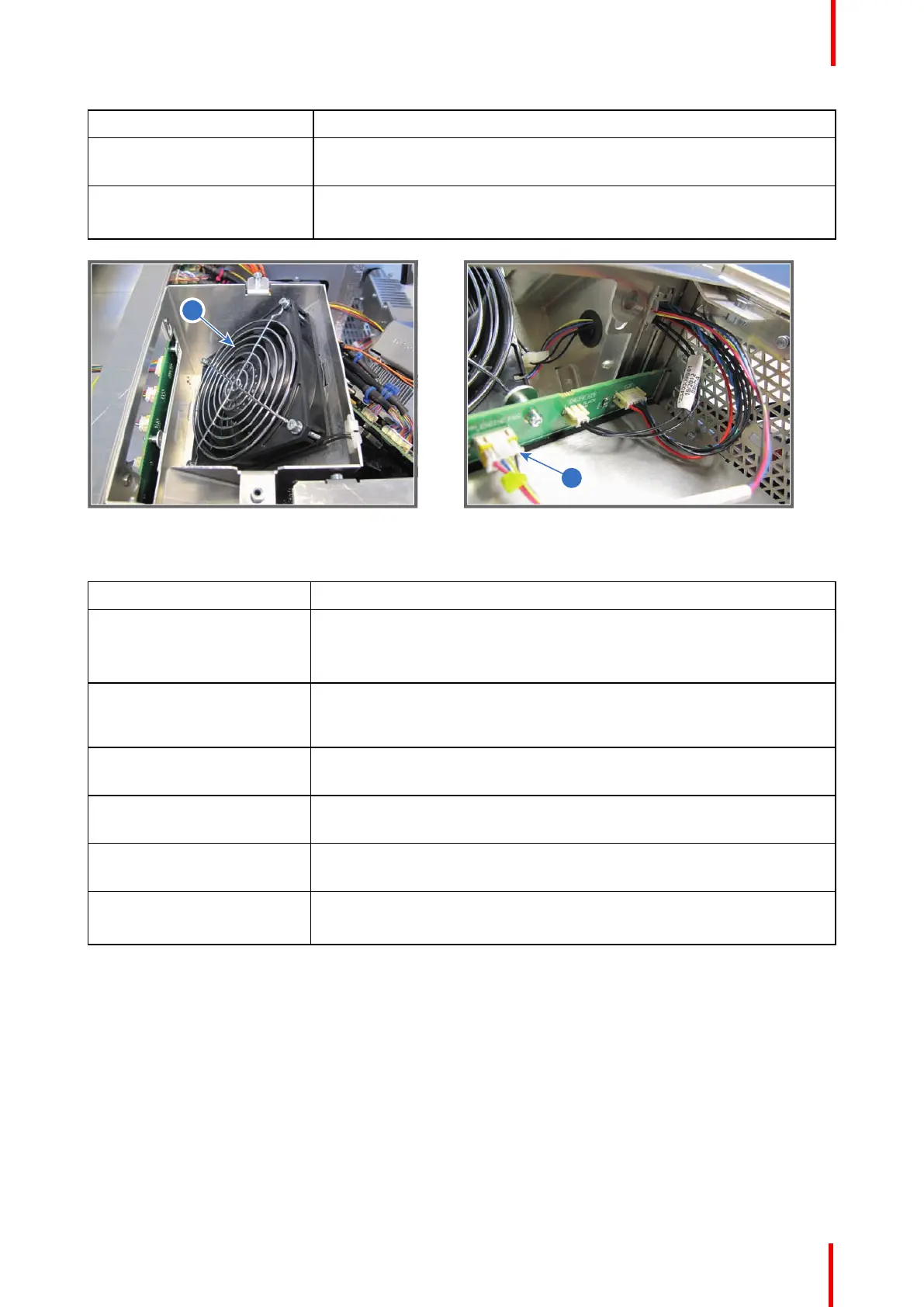

Code 5072: “Anode fan - speed too low”
Situation Solution
Wire of the Anode Fan is
disconnected.
Remove the projector top cover and the top cover plate of the Light
Processor compartment and check the connection of the Lamp Anode Fan
(reference 1Image 25-13).
Wire of the rear fan units is
disconnected from the Signal
Backplane.
Remove the Light Source and Cathode fan and check if the wire unit
(reference 2 Image 25-14) is inserted in the Signal Backplane.
Blocked Anode Fan Check if the Anode Fan is not blocked. Ensure that the Anode Fan can turn
freely. (reference 3 Image 25-15).
Damaged wire Check if the wire of the Anode Fan is not damaged. Repair if possible,
otherwise replace with new one.
Anode Fan end of life Replace the Anode Fan. See service manual chapter “Replacement of the
Anode Fan”, page 84.
Malfunction Cinema
Controller.
Replace the Cinema Control board. See service manual chapter
“Replacement of the Cinema Controller”, page 217.
