Barco DP2K SLP Series Service Manual

R5906848 /04 DP2K SLP Series300
1

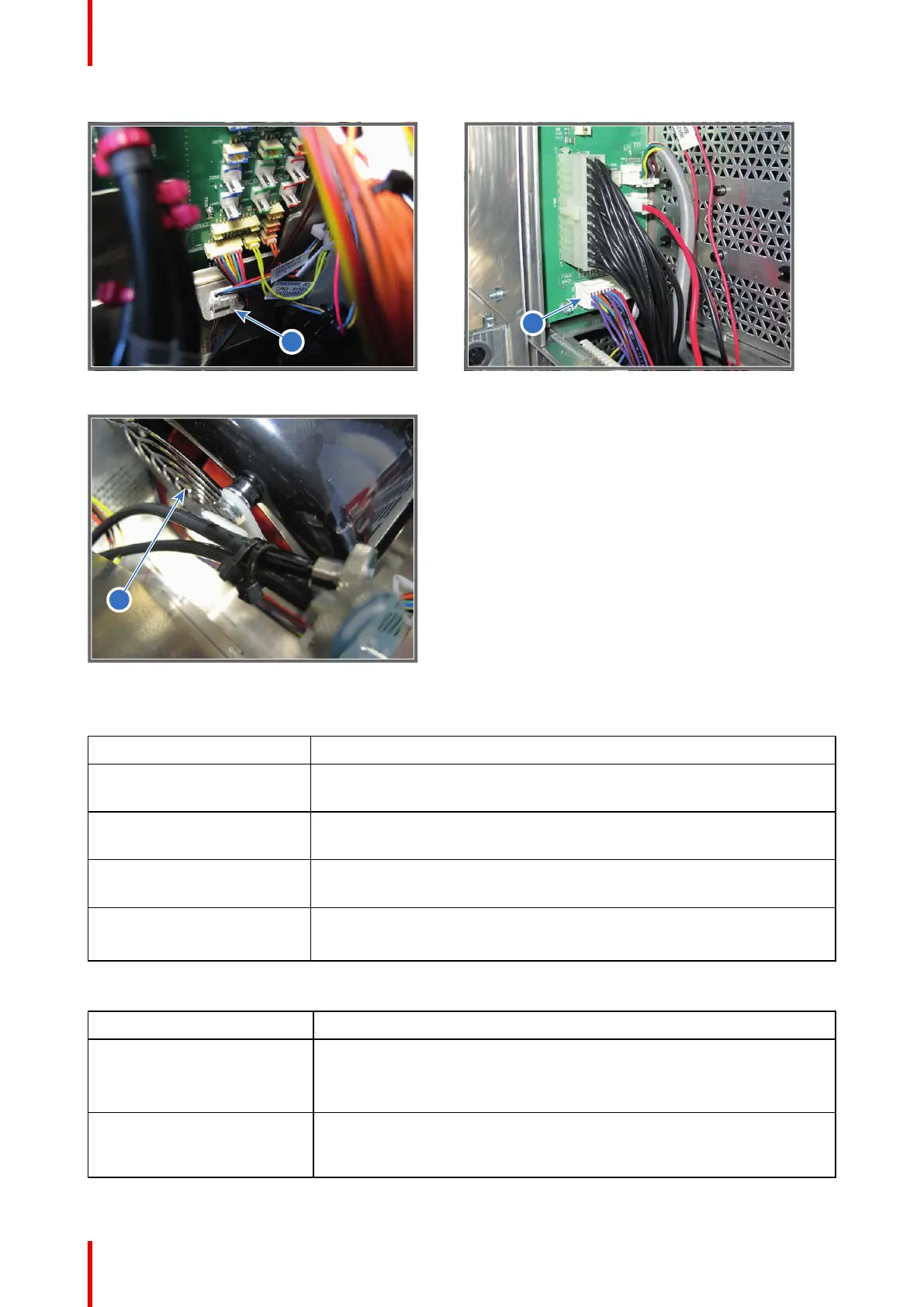

Image 25-13
2
Image 25-14
3
Image 25-15
Code 5073: “Anode fan - speed low”
Situation Solution
Blocked Anode Fan Check if the Anode Fan is not blocked. Ensure that the Anode Fan can turn
freely. (reference 3 Image 25-15).
Damaged wire Check if the wire of the Anode Fan is not damaged. Repair if possible,
otherwise replace with new one.
Anode Fan end of life Replace the Anode Fan. See service manual chapter “Replacement of the
Anode Fan”, page 84.
Malfunction Cinema Controller Replace the Cinema Control board. See service manual chapter
“Replacement of the Cinema Controller”, page 217.
Code 5082: “Cathode fan - speed too low”
Situation Solution
Wire of the Cathode Fan is
disconnected.
Remove the Light Source and Cathode fan (reference 1 Image 25-16) and
check the connection of the Cathode Fan (reference 3 Image 25-16).
Wire of the rear fan units is
disconnected from the Signal
Backplane.
Remove the Light Source and Cathode fan and check if the wire unit
(reference 2 Image 25-17) is inserted in the Signal Backplane.
