Barco DP2K SLP Series Service Manual

R5906848 /04 DP2K SLP Series 317
6

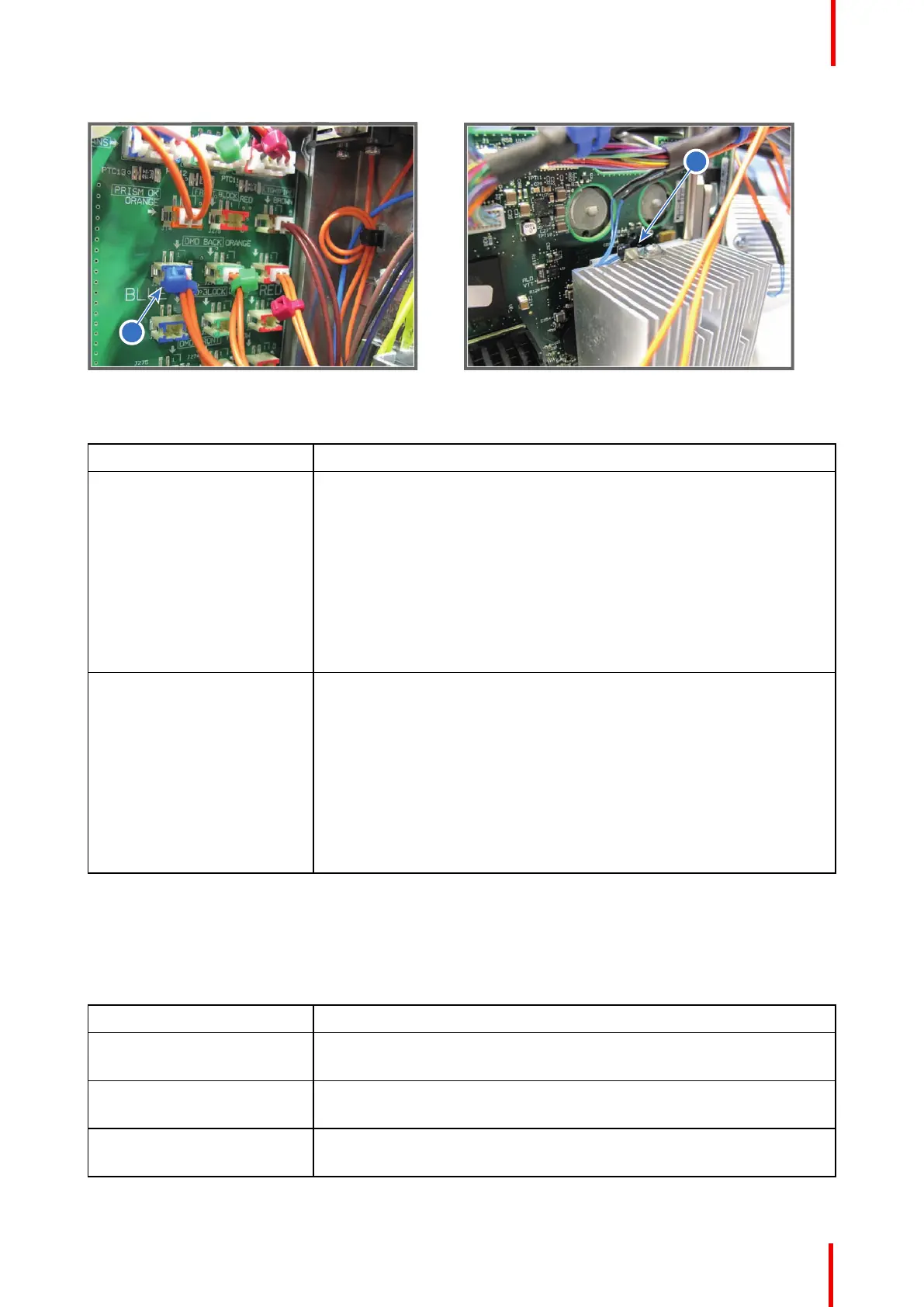

Image 25-55
16
Image 25-56
Code 5295: “DMD blue - Temperature sensor short”
Situation Solution
Damaged wire insulation of the
temperature sensor which
measures the heat sink
temperature of the blue
channel. When disconnecting
the wire of the temperature
sensor from the Signal
Backplane (reference 6
Image 25-55) the error code is
changed to “dmd blue -
temperature sensor open”.
1. Repair the insulation of the of the temperature sensor which measures
the heat sink temperature of the blue channel (reference 16 Image 25-
56).
2. If not repairable, replace the temperature sensor and wiring.
Defect temperature sensor
(reference 16 Image 25-56)
which measures the heat sink
temperature of the blue
channel. When disconnecting
the wire unit of the
temperature sensor from the
Signal Backplane (reference 6
Image 25-55 the error code is
changed to “dmd blue -
temperature sensor open”.
Replace the temperature sensor (reference 16 Image 25-56) which
measures the heat sink temperature of the blue channel.
Code 5300: “DMD green - Temperature too high”
This error code is probably preceded by the warning code 5301: “dmd green - temperature high”. The same
troubleshooting table can be applied to.
Code 5301: “DMD green - Temperature high”
Situation Solution
Blocked large dust filter. Clean the large dust filter or replace with new one. See service manual
chapter “Check the large dust filter”, page 284.
Blocked small dust filter. Clean the small dust filter or replace with new one. See service manual
chapter “Check the small dust filter”, page 285.
Ambient temperature too high. Check the ambient temperature at the air inlets of the projector. Make sure
that the ambient temperature does not exceed 35°C (95°F).
