R5906848 /04 DP2K SLP Series322
Code 5344: “dmd red - temperature sensor open” (Error)
Situation Solution
Disconnected wire of the
temperature sensor.
Check if the wire (reference 8 Image 25-61) of the temperature sensor is
plugged into its socket on the Signal Backplane.
Damaged wire of the
temperature sensor.
1. Repair the wire of the temperature sensor which measures the heat
sink temperature of the red channel (reference 18 Image 25-62) .
2. If not repairable, replace the temperature sensor.
Defect temperature sensor. Replace the temperature sensor (reference 18 Image 25-62) which
measures the heat sink temperature of the red channel.

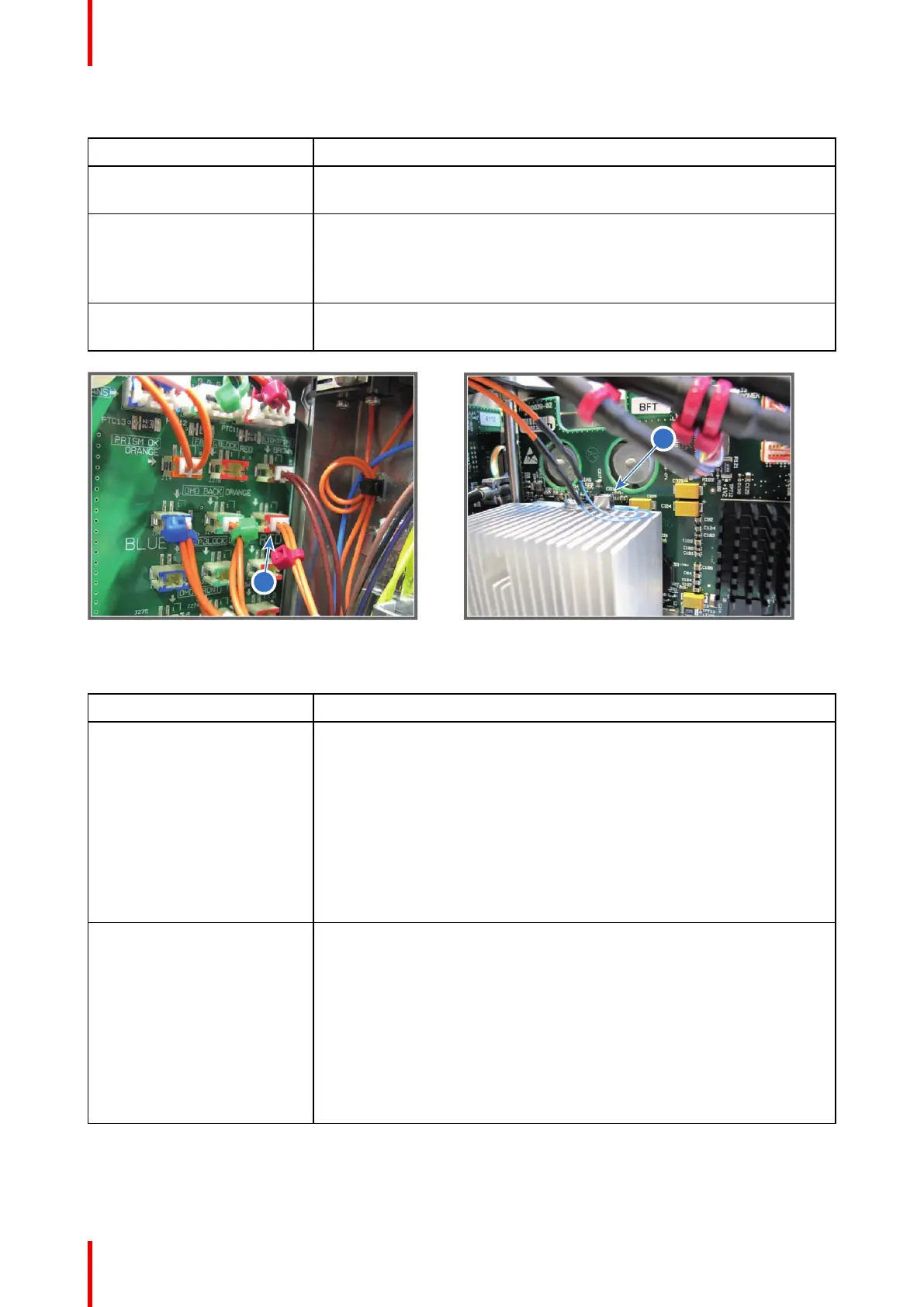

Image 25-61
Image 25-62
Code 5345: “dmd red - temperature sensor short” (Error)
Situation Solution
Damaged wire insulation of the
temperature sensor which
measures the heat sink
temperature of the red
channel. When disconnecting
the wire of the temperature
sensor from the Signal
Backplane (reference 8
Image 25-61) the error code is
changed to “dmd red -
temperature sensor open”.
1. Repair the insulation of the of the temperature sensor which measures
the heat sink temperature of the red channel (reference 18 Image 25-
62).
2. If not repairable, replace the temperature sensor and wiring.
Defect temperature sensor
(reference 18 Image 25-62)
which measures the heat sink
temperature of the red
channel. When disconnecting
the wire unit of the
temperature sensor from the
Signal Backplane (reference 8
Image 25-75 the error code is
changed to “dmd red -
temperature sensor open”.
Replace the temperature sensor (reference 18 Image 25-62) which
measures the heat sink temperature of the red channel.
Troubleshooting
