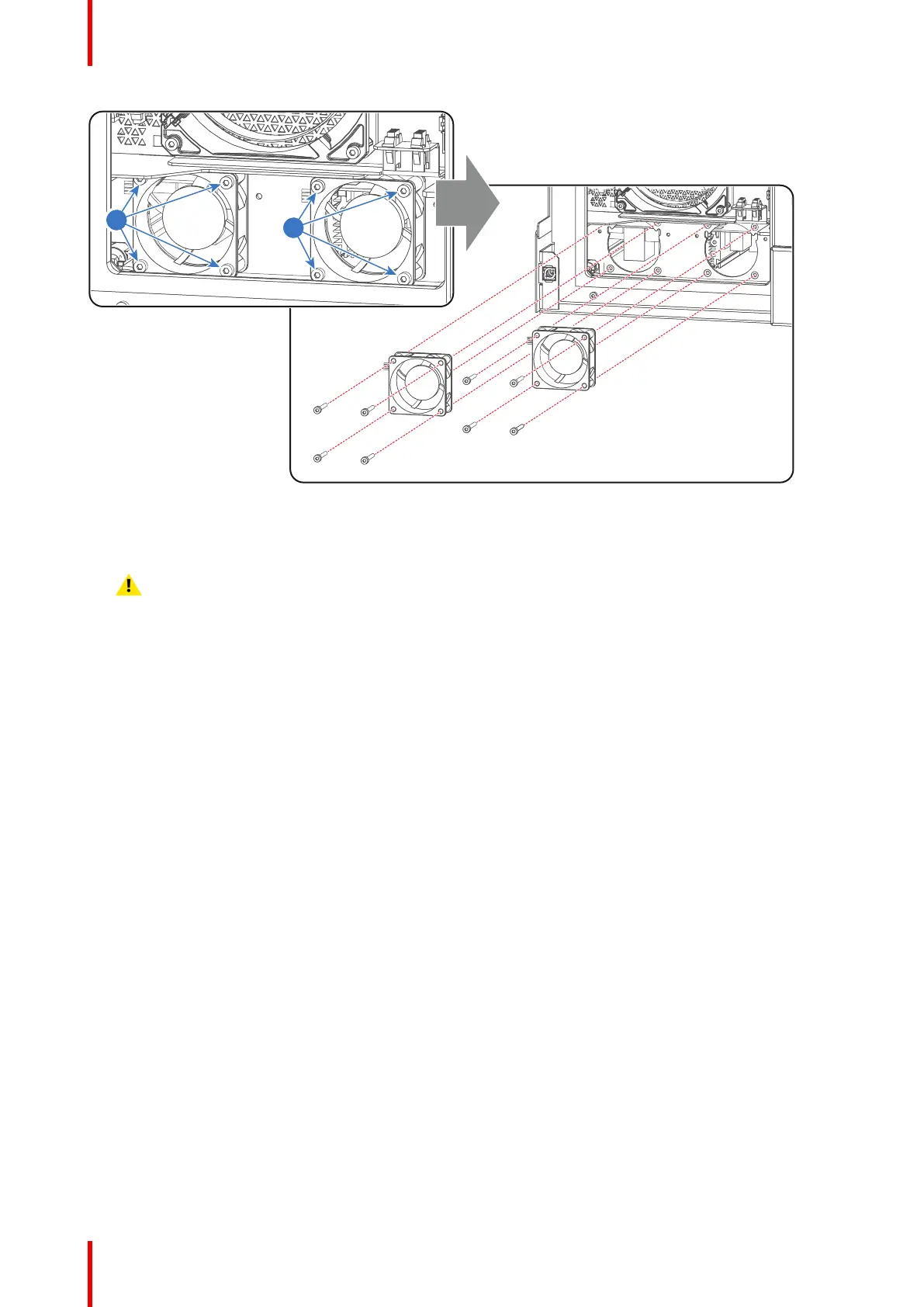

Image 5-9
3. Install two new SMPS fans. Guide the wires above the housing of the fans. Use a 2.5mm Allen wrench to
fasten the screws (reference 3 Image 5-9) of the fans.
Caution: Ensure that the airflow of the fans is towards the SMPS compartment.
4. Connect the wire of both fans with the projector:
• The wire of the left fan with the left socket (reference 1 Image 5-8).
• The wire of the right fan with the right socket (reference 2 Image 5-8).
Switch Mode Power Supply (SMPS)
