R5906848 /04 DP2K SLP Series 49
Required parts
• Spare driver board
• Spare fuse
How to remove a laser driver board
1. Flip the module upside down.
2. Remove all screws, washers and tabs holding the bottom plate to the module. Use a 2.5 mm Allen wrench.

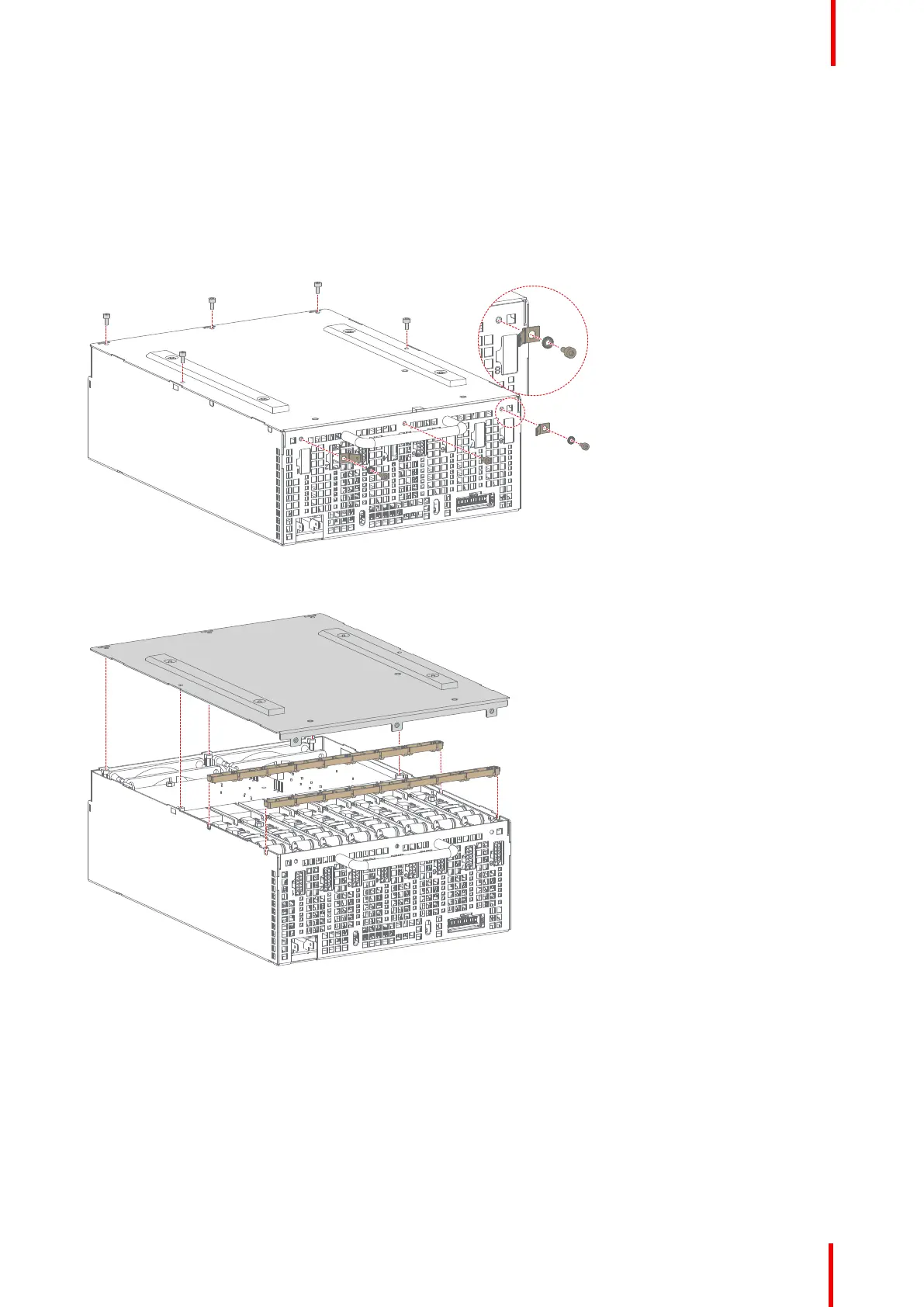

Image 6-7: Removing the screws, washers and tabs from an LDM
3. Remove the bottom plate, insulation and the fixation rails as illustrated.
Image 6-8: Removing the bottom plate and rails
4. Unplug and remove the desired driver board.
Laser Driver Module (LDM)
