Barco DP2K SLP Series Service Manual

R5906848 /04 DP2K SLP Series 85

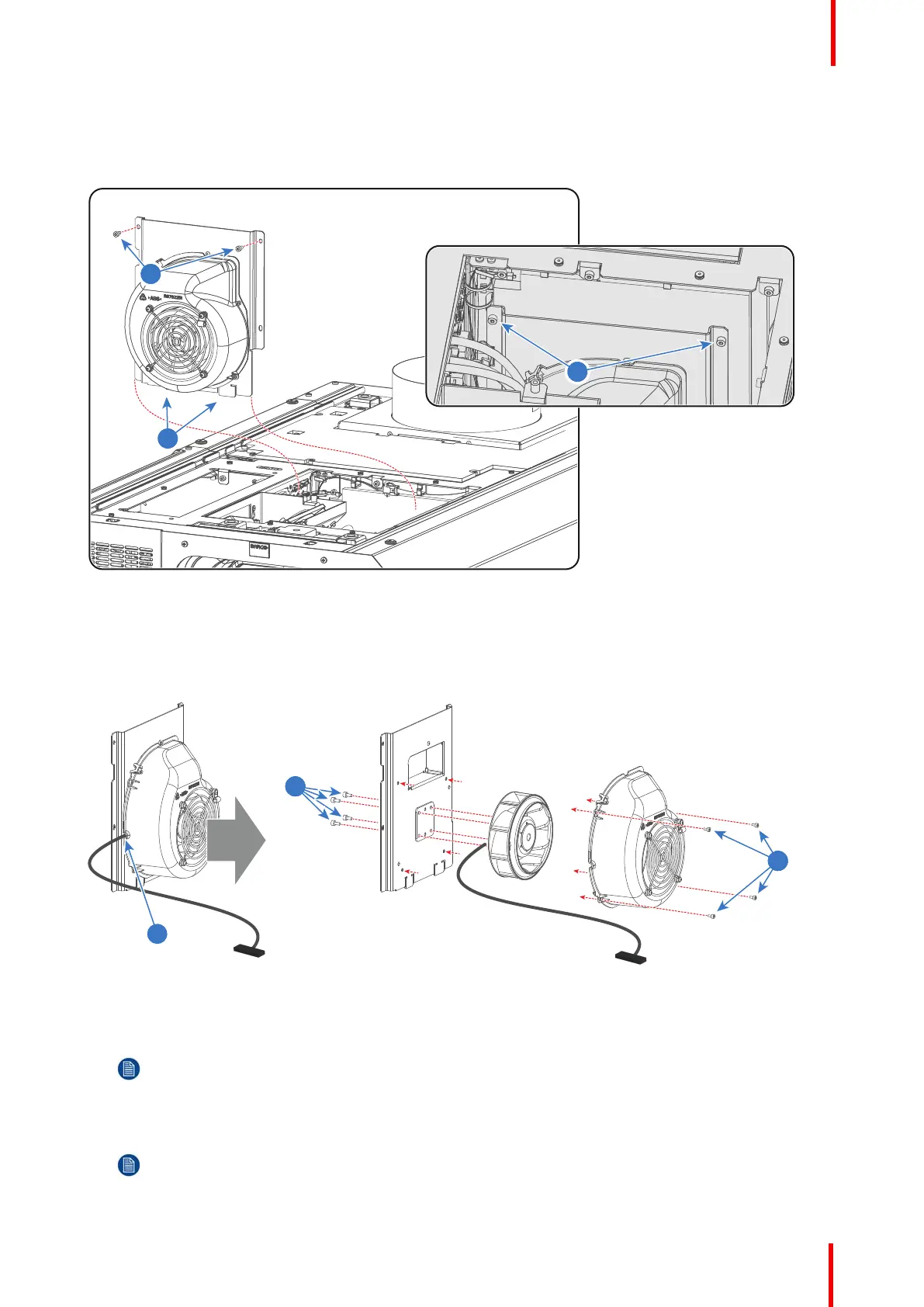

3. Remove the two fixation screws at the top of the Anode Fan assembly (reference 4 Image 7-52). Use a 3mm
Allen wrench.
4. Gently remove the Anode Fan assembly out of the Light Processor compartment.
4
5
4
Image 7-52
5. Remove the cover of the Anode Fan by loosening the four screws (reference 6 Image 7-53) as illustrated. Use
a 2.5mm Allen wrench.
6. Remove the mounting plate from the Anode Fan by loosing the four screws (reference 7 Image 7-53) as
illustrated. Use a 3mm Allen wrench.
7
6
8
Image 7-53
7. Install a new Anode Fan onto the mounting plate. Fasten the Anode Fan with four screws (reference 7
Image 7-53). Use a 3mm Allen wrench.
Note: Ensure that the wire of the Anode Fan is oriented as illustrated. So, it will match with the cut out
in the cover (reference 8 Image 7-53)
8. Install the cover of the Anode Fan. Fasten the cover with four screws (reference 6 Image 7-53). Use a 2.5mm
Allen wrench.
Note: Ensure that the wire of the Anode Fan fits in the cut out of the cover (reference 8 Image 7-53)
Laser Phosphor Light Source
