Installation
Manual b maXX
®
BM1000
Document No. 5.07003.04
51
of 174
6
m BM1425, BM1426, BM1437, BM1438, BM1439

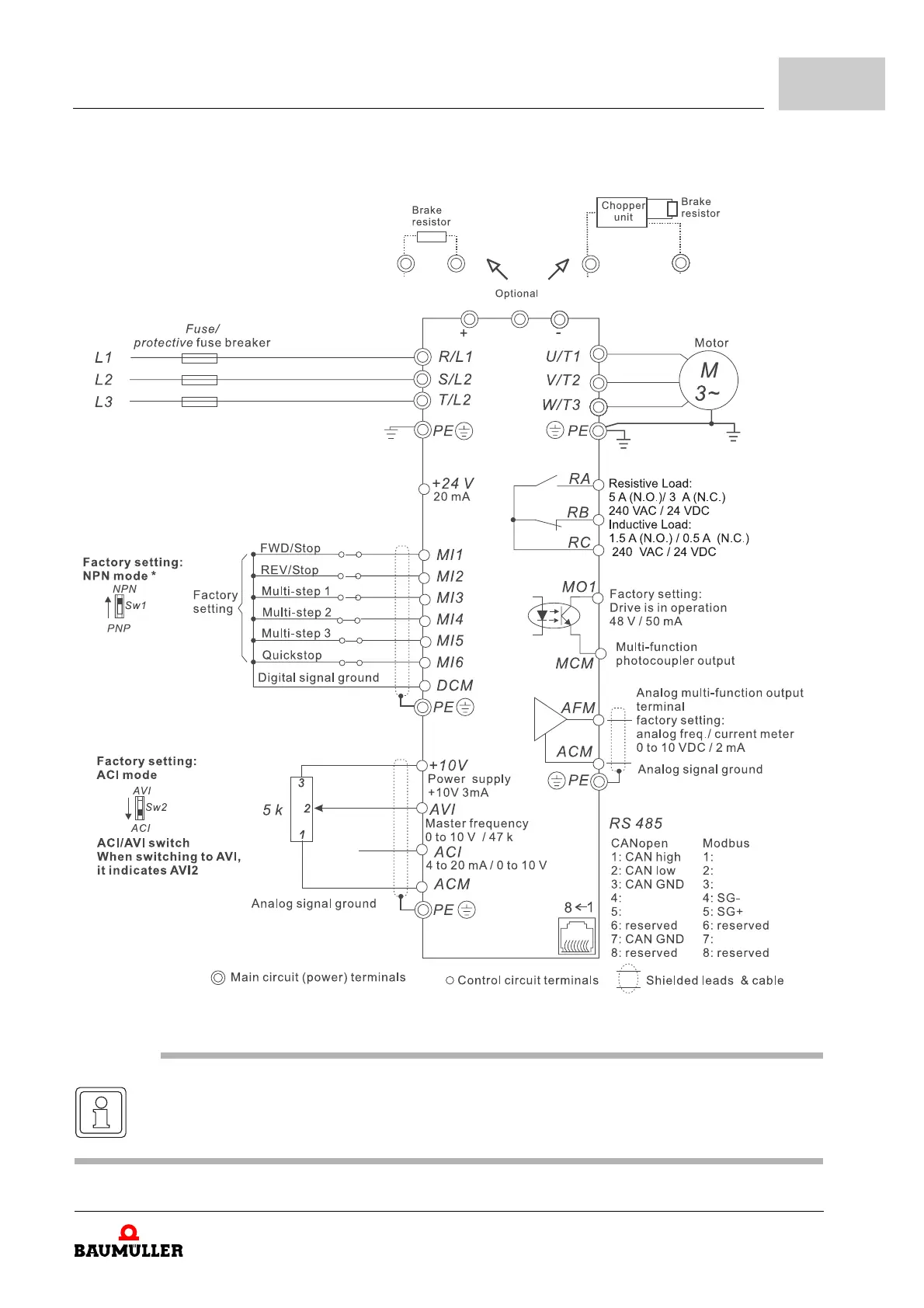

*: Please refer to ZFigure 22– on page 52 for wiring of NPN mode and PNP mode.
NOTE
Single-phase models can only use R/L1, S/L2 to be the power terminals.
Single-phase power cannot be used for 3-phase models.
