6.4.3.5 Operation 26. Lubrication of HSC hydraulic cylinder joints
Note – The operation shall be performed on tractors with HSC or HSC with HPS
body. If using grease MS-1000 TU 0254-003-45540231-99, the operation should be per-
formed every 500 hours of tractor operation.
Inject the joints of HSC hydraulic cylinder 4 (Figure 6.4.19, Figure 6.4.20 and Figure
6.4.21) through grease fittings 3 with the lubricant indicated in Table 6.7.1.

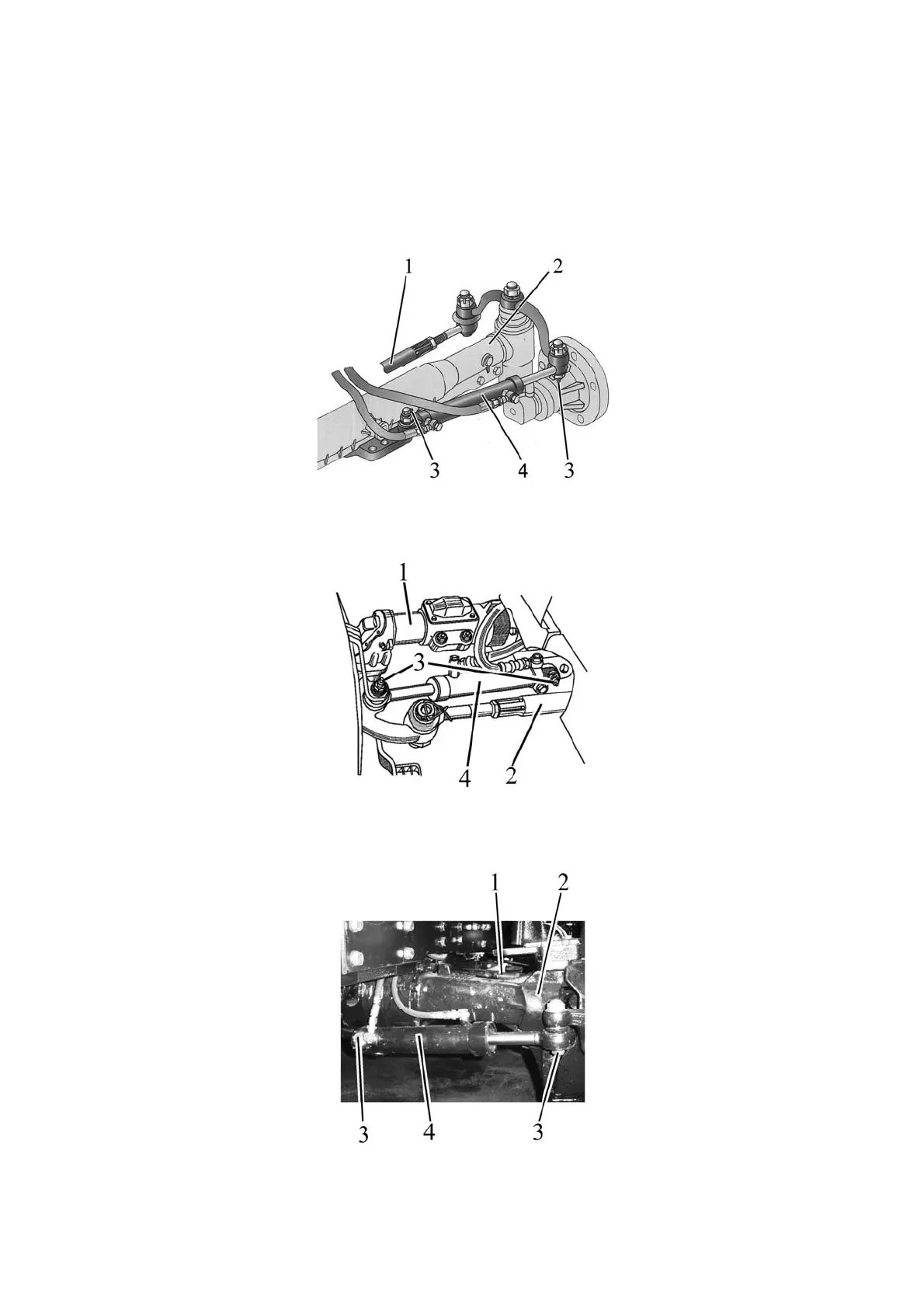

1 – steering link; 2 – front axle; 3 – grease fitting; 4 – HSC hydraulic cylinder
Figure 6.4.19 – Lubricating the joints of HSC hydraulic cylinders for tractors with
non-driving front axle (BELARUS – 80.1).
1 – FDA; 2 – steering link; 3 – grease fitting; 4 – HSC hydraulic cylinder.
Figure 6.4.20 – Lubrication of the joints of HSC hydraulic cylinders for tractors with
FDA with bevel gear groups (BELARUS – 82.1).
1 – steering link; 2 – FDA; 3 – grease fitting; 4 – HSC hydraulic cylinder
Figure 6.4.21 – Lubricating the joints of HSC hydraulic cylinders for tractors with
FDA with planetary-spur gear groups (BELARUS – 820).
