6.4.5.19 Operation 66. Greasing of brackets of the front axle extensible knuckles
Note – The operation she be performed only on tractors BELARUS-80.1. If using
grease MS-1000 TU 0254-003-45540231-99, the operation should be carried out every
2000 hours of tractor operation.
Before greasing the brackets of extensible knuckles of front axle, put the tractor on
a flat horizontal platform. The engine shall be stopped. Engage the parking brake and lock
the rear wheels against spontaneous movement with wheel chocks at the front and back.
1, 7 – nuts; 2 – bolts; 3 – extensible knuckle; 4 – pin; 5 – front axle body; 6 – hy-
draulic cylinder (not installed on tractors with HPS); 8 – steering link (with installed HPS or
HSC with HPS body, two steering links are mounted).

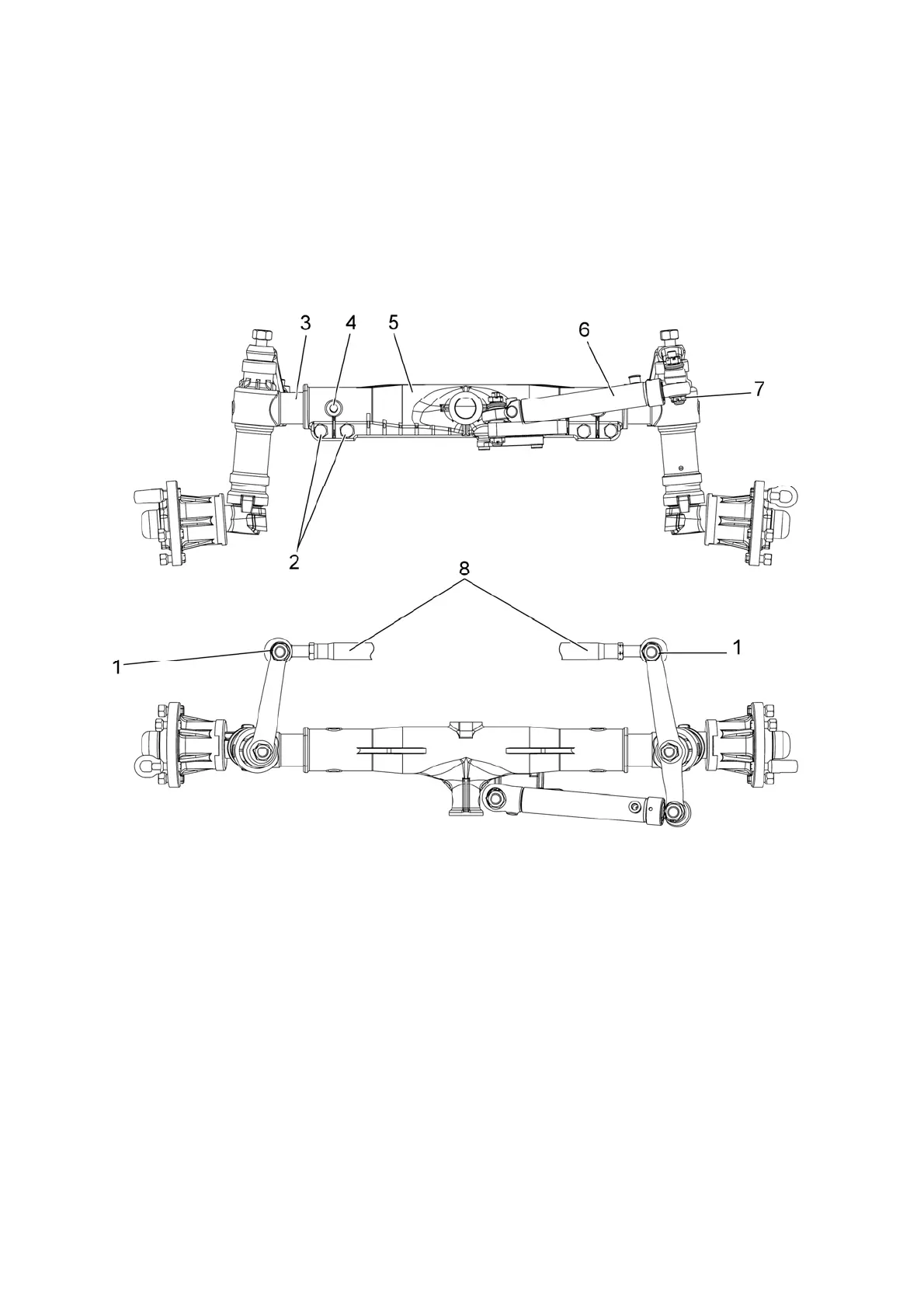

Figure 6.4.61 – Greasing of brackets of extensible knuckles of front axle
Greasing of brackets of extensible knuckles of front axle with the HSC installed
shall be done as follows:
- raise the front axle until the wheel lift off the ground and set a support under the
front axle;
- remove the wheels;
- unscrew nuts 1 to remove the steering link 8 (Figure 6.4.61);
- detach hydraulic cylinder 6 of steering control from the swivel lever by unscrewing
nut 7;
- release two bolts 2 and remove pin 4. Repeat the operation on the other side;
- take knuckles 3 from both sides out of body 5 of the front axle;
