2.16.3.2 Control of the remote hydraulic cylinders with the distributor RS-213 BEL-
ARUS installed
Each of three handles 1, 2, 3 (figure 2.16.4) of the distributor RS-213 BELARUS
has four positions:
- “Floating” – upper most fixed position;
- “Positive lowering” – middle upper non-fixed position between the positions “Float-
ing” and “Neutral”. In the position “Positive lowering” with the engine running the handle
shall be held by hand, because when you release it the handle automatically returns to the
position “Neutral”;
- “Neutral” – middle lower fixed position;
- “Lifting” – lower most non-fixed position. In the position “Lifting” with the engine
running the handle shall be held by hand, because when you release it the handle auto-
matically returns to the position “Neutral”;

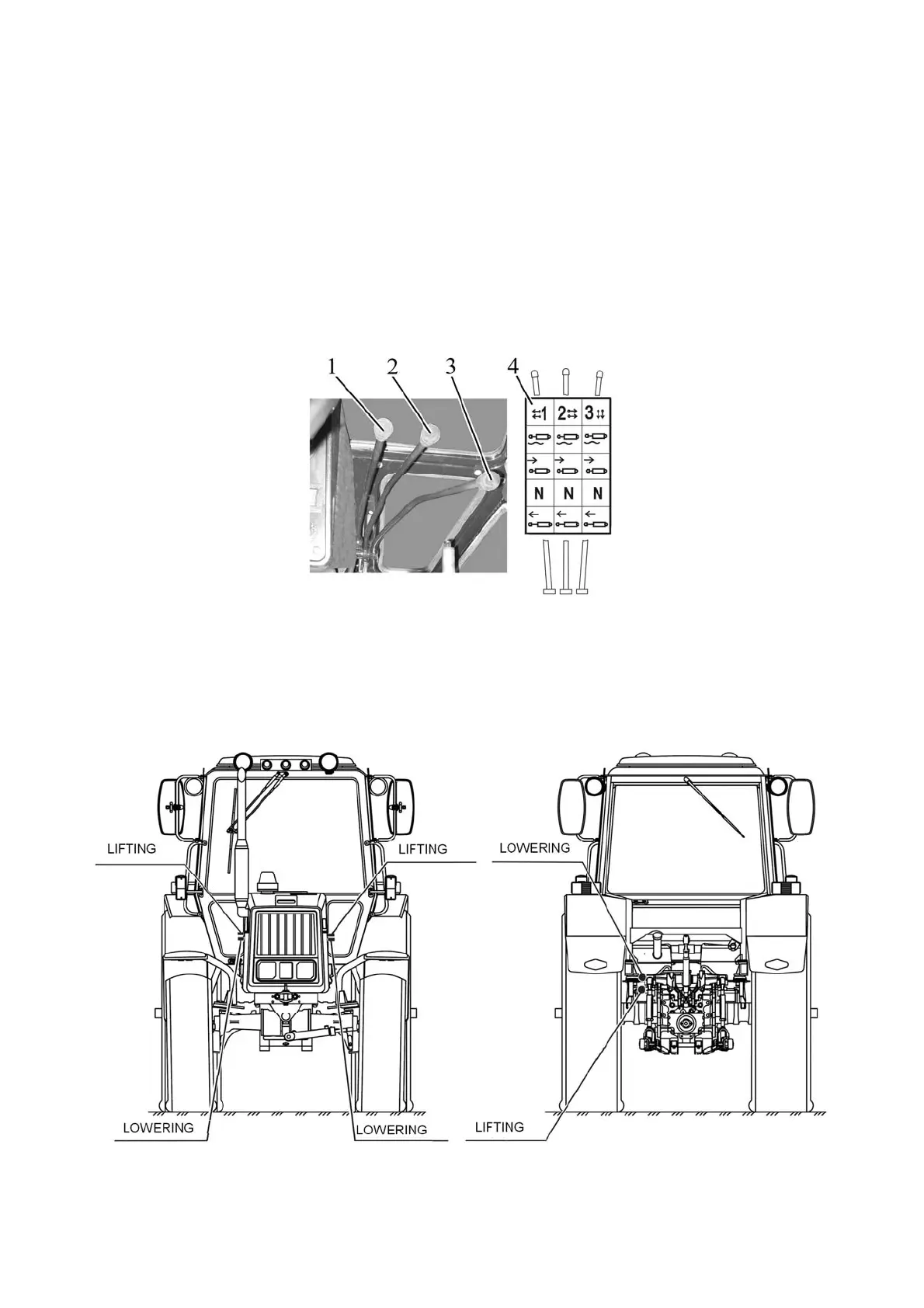

1, 2, 3 – handles to control HLL distributor outlets (remote cylinders); 4 – instruction
plate with the distributor RS-213 BELARUS control diagram.
Figure 2.16.4 – Remote hydraulic cylinders control with the distributor RS-213 BELARUS
installed
The diagram of layout and connection of the distributor RS-213 BELARUS outlets to
the external consumers on tractors “BELARUS-80.1/82.1/820” is shown in figure 2.16.5.
Figure 2.16.5 – The diagram of layout and connection of the distributor RS-213
BELARUS outlets to the external consumers.
