80-0000010B OM
50
2.16.3.4 Control of the remote hydraulic cylinders with the distributor РП70-1221ТС
or RS-213 BELARUS installed using the joystick and lever
With the distributor РП70-1221ТС, RS-213 BELARUS installed on tractors remote
control of the distributor spool valves is possible, which is carried out by joystick 1 (figures
2.16.6 and 2.16.7) and lever 2 with the help of push-pull wire. The joystick and lever are
installed on the right console unit in the tractor cabin instead of HLL distributor outlets con-
trol handles.
Joystick 1 is designed to control two distributor spool valves (sections):
- when you shift joystick handle 1 in longitudinal direction the spool valve, which is
connected to the left side outlets of the hydraulic system, is controlled.
- when you shift joystick handle 1 in transverse direction the spool valve, which is
connected to the right side outlets, is controlled.
Lever 2 moves only in longitudinal direction and controls the middle spool valve,
connected to the rear left outlets of the hydraulic system.

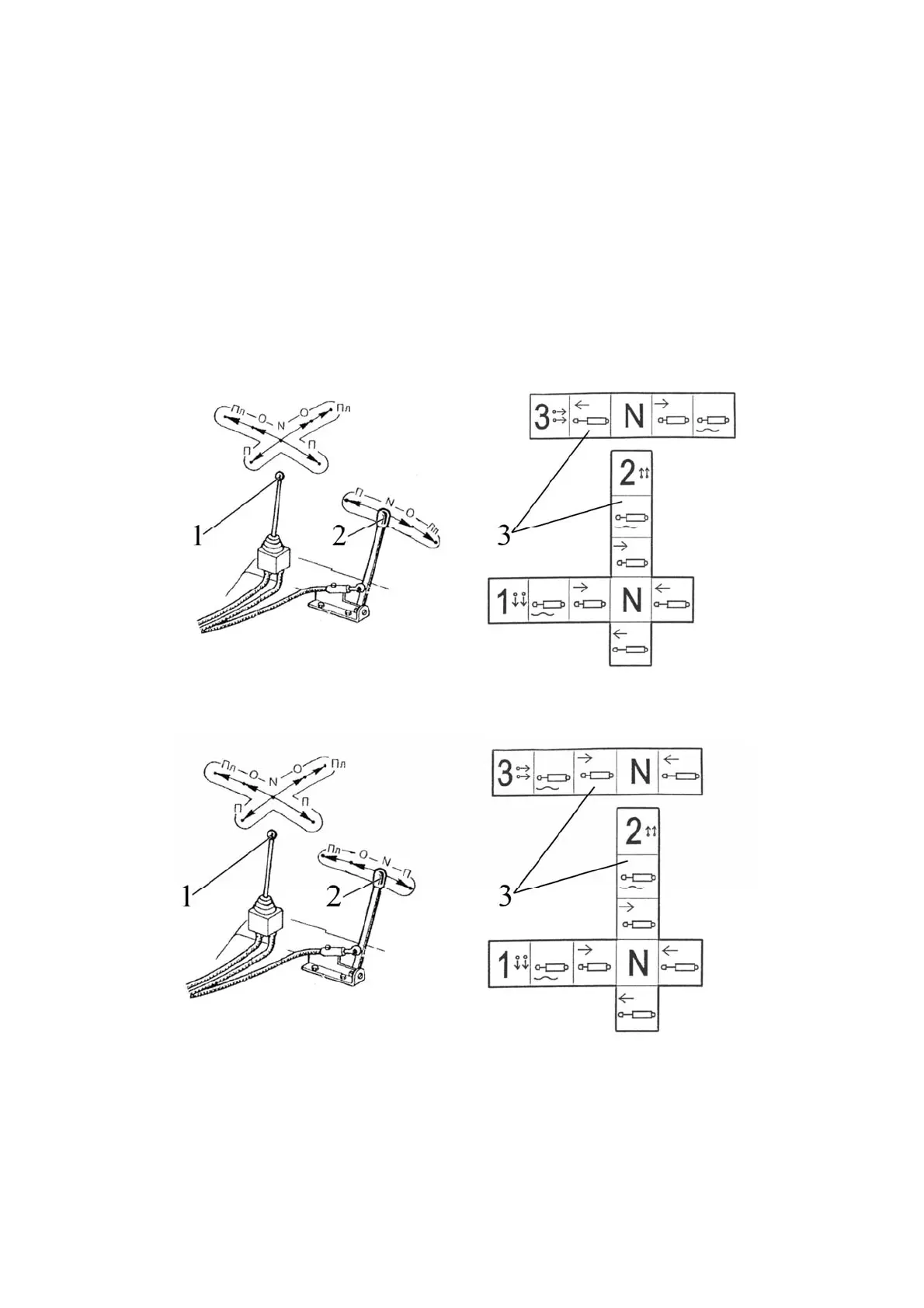

1 – joystick; 2 – lever; 3 – instruction plates of joystick and lever control.
Figure 2.16.6 – Control of remote hydraulic cylinders with the distributor РП70-1221ТС
installed using joystick and lever
1 – joystick; 2 – lever; 3 – instruction plates of joystick and lever control.
Figure 2.16.7 – Control of the remote hydraulic cylinders with the distributor RS-213
BELARUS installed using joystick and lever
The diagram of layout and connection of the distributor РП70-1221ТC outlets to the
external consumers on tractors “BELARUS-80.1/82.1/820” is shown in figure 2.16.3.
