80-0000010B OM
60

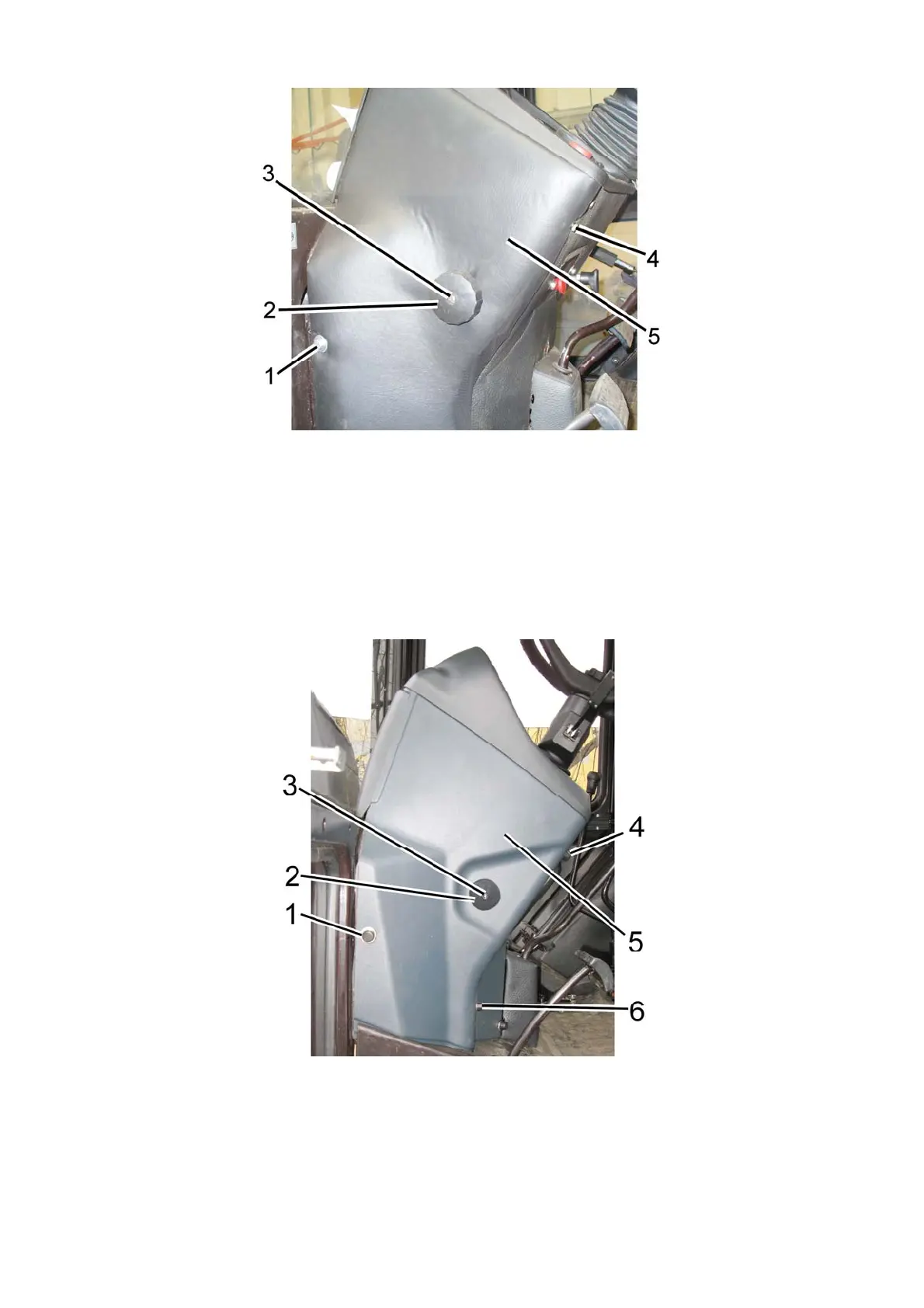

1, 4 – bolts; 2 – handwheel to control engine water radiator shutter; 3 – screw; 5 – side
console.
Figure 2.18.6 – Access to electro-magnetic relay, located in the instrument dashboard with cast
panel
To access electro-magnetic relay in the instrument dashboard on tractors with
molded panel remove handwheel 2 (2.18.7) of the engine water radiator shutter control by
doing screw 3 out. Then do two bolts 1, 4 and 6 out and take off side console 5 of
the dashboard.
1, 4, 6 – bolts; 2 – handwheel to control engine water radiator shutter; 3 – screw; 5 – side
console.
Figure 2.18.7 – Access to electro-magnetic relays, located in the instrument dashboard with
molded panel
Electro-magnetic relays, located in the instrument dashboard, are shown in figure
2.18.8.
