80-0000010B OM
61

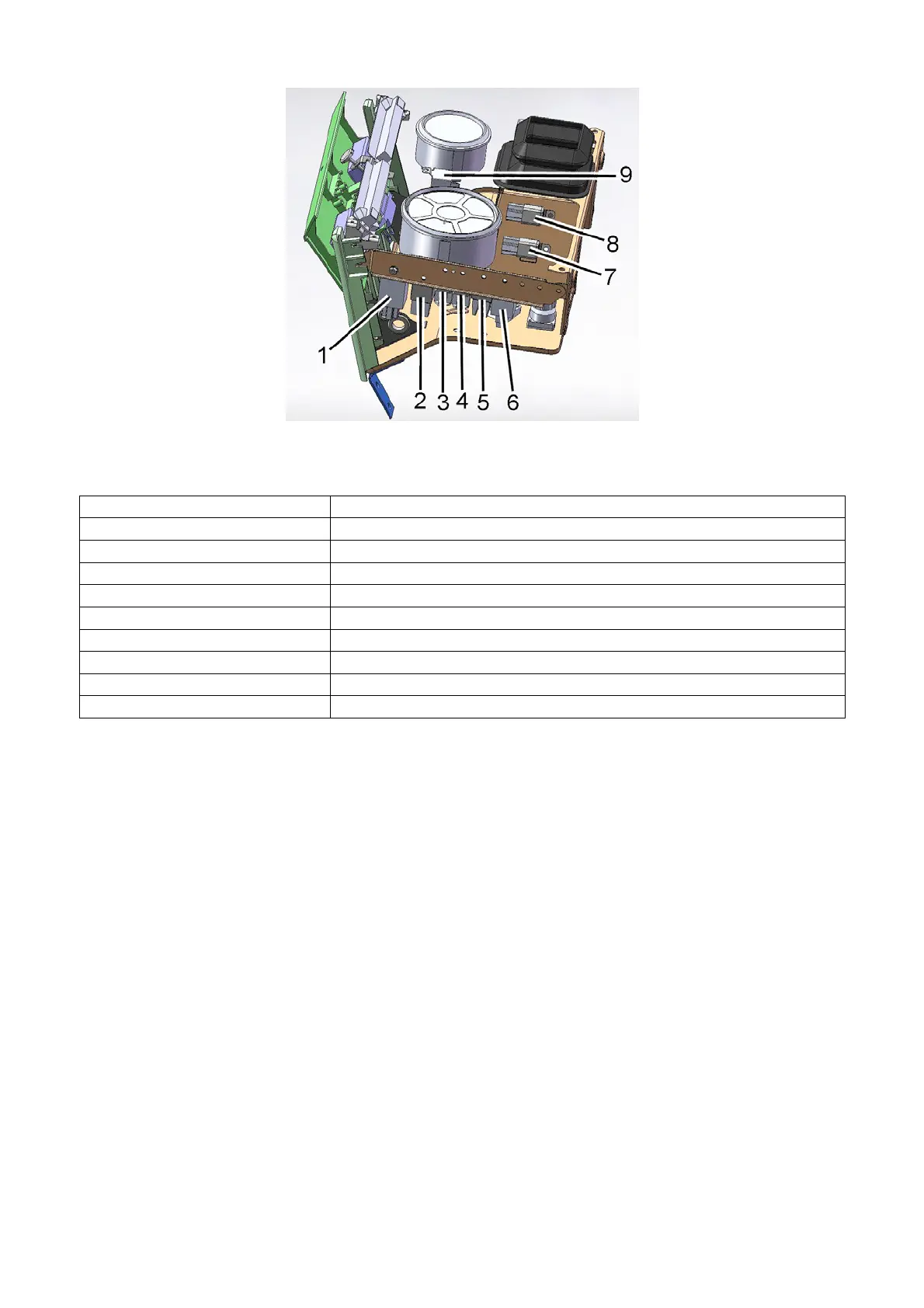

Figure 2.18.8 – Arrangement of electro-magnetic relays in the instrument dashboard
Table 2.18.3 – Assignment of the instrument dashboard relay
Number in figure 2.18.8 Assignment of relay
1 Turn relay
2 Consumer power relay after starter and instrument switch
3 Heater lockout relay or heater power
4 Starter start up lockout relay
5 Starter relay
6 Heating plugs control block
7 Lower beam relay
8 Upper beam relay
9 Buzzer (emergency warning)
When the instrument board with molded panel is installed beside the listed electro-
magnetic relays in table 2.18.3 in the instrument dashboard electro-magnetic relay of au-
dible beep is additionally installed, which is located to the left of the steering column.
