Telecom Module FC200/COM
PARTS DESCRIPTION
52 Main board connector
53 Microphone
54 Loudspeaker connector
55 Terminal board for telephone line connections
56 Screws for backplate
57
Earth cable with eyelet terminal ---- to be fixed to the screw on the
backplate, and connected to the earth terminal of the Telecom Module
58
Cable and connector for connecting the loudspeaker to the Telecom
Module
59
Plastic (ABS) gaskets to be used when mounting the loudspeaker to the
backplate
60 Loudspeaker

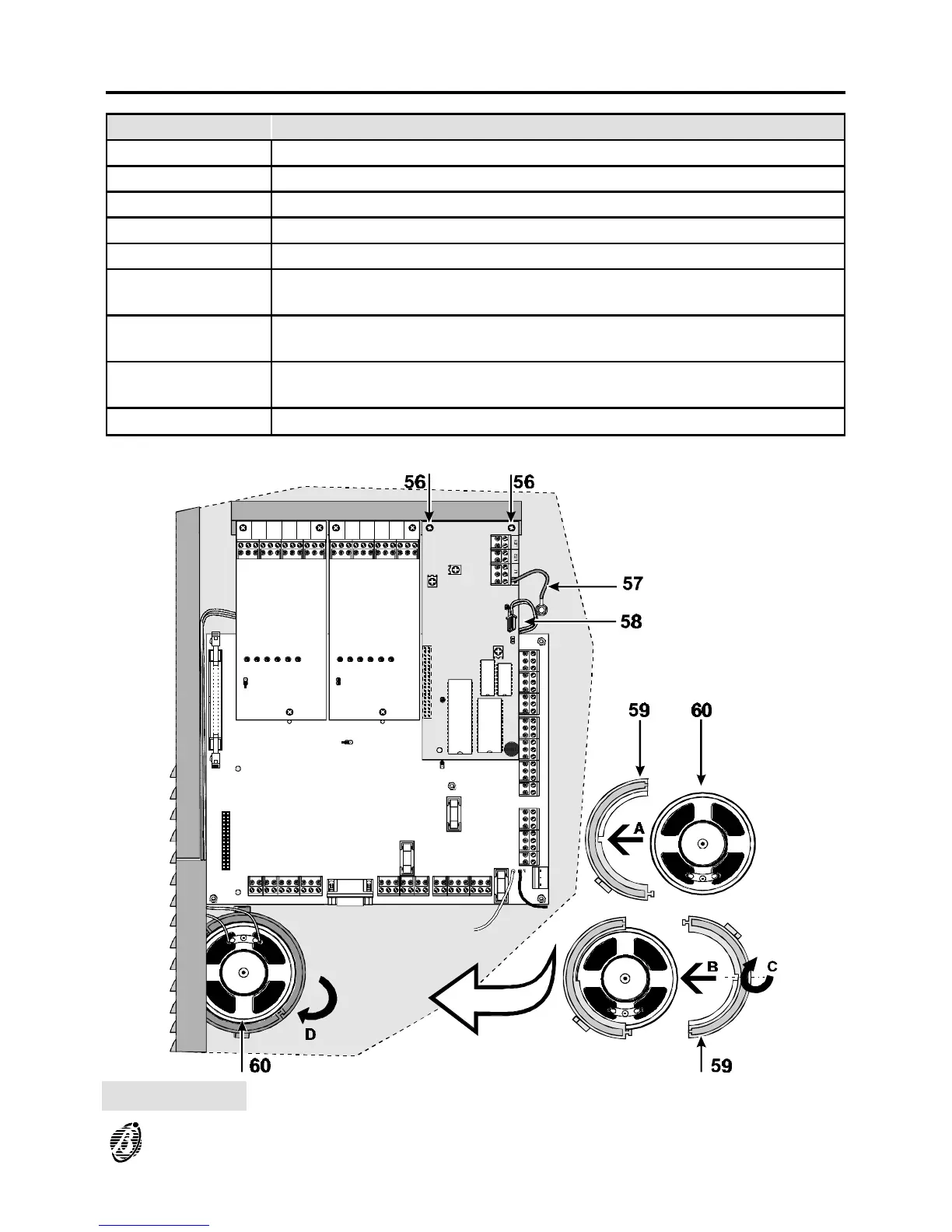

Figure 7 Parts of Telecom Module.
PARTS IDENTIFICATION 19
