Network
1. Select the NET option from the DEVICE
menu (press 4) for the RS485 Network de-
vice parameters. Press ESC to exit and
step back to the PROGRAMMING menu.
2. Enter the device address. Press ESC to
exit and step back.
PRG: Devices
1=LOOP 1 2=LOOP 2
3=Outputs BELL
4=NET
PRG: NET DEVICES
Enter Address
Repeater: ##
Slave: __
PRG: Output BELL :##
P=ØSØØ P=ØSØØ P=ØSØØ
Extinction : **
G:***,***,****,****
PRG:Output BELL :##
Output Bell
Z=ØØ Z=ØØ Z=ØØ Z=ØØ
A)Attr.—>)Next
a)
b)
Extinction type:
**; E1; E2; E3; E4
Fault:
*** = none;
Ft = Fault;
FtN = Net Fault
Description
Description
Label: 20 characters max.
Zones:
00 ÷ 16
Address:
01 ÷ 16
Address: 01 ÷ 16
General conditions
Alarm:
*** = none;
AI = Alarm;
2Al = Double Knock
Prealarm:
**** = none;
Wrn = Warning;
WrnN = Net Warning
Pre = Prealarm;
PreN = Net Prealarm;
WrnZ = Zone Warning;
WrnP = Point Warning;
PreZ = Prealarm zone
Points
Loop: *; 1; 2
Type:
S = Sensor;
M = Module
Address: 00 ÷ 99
Output timing:
**** = no;
ITemp = yes.

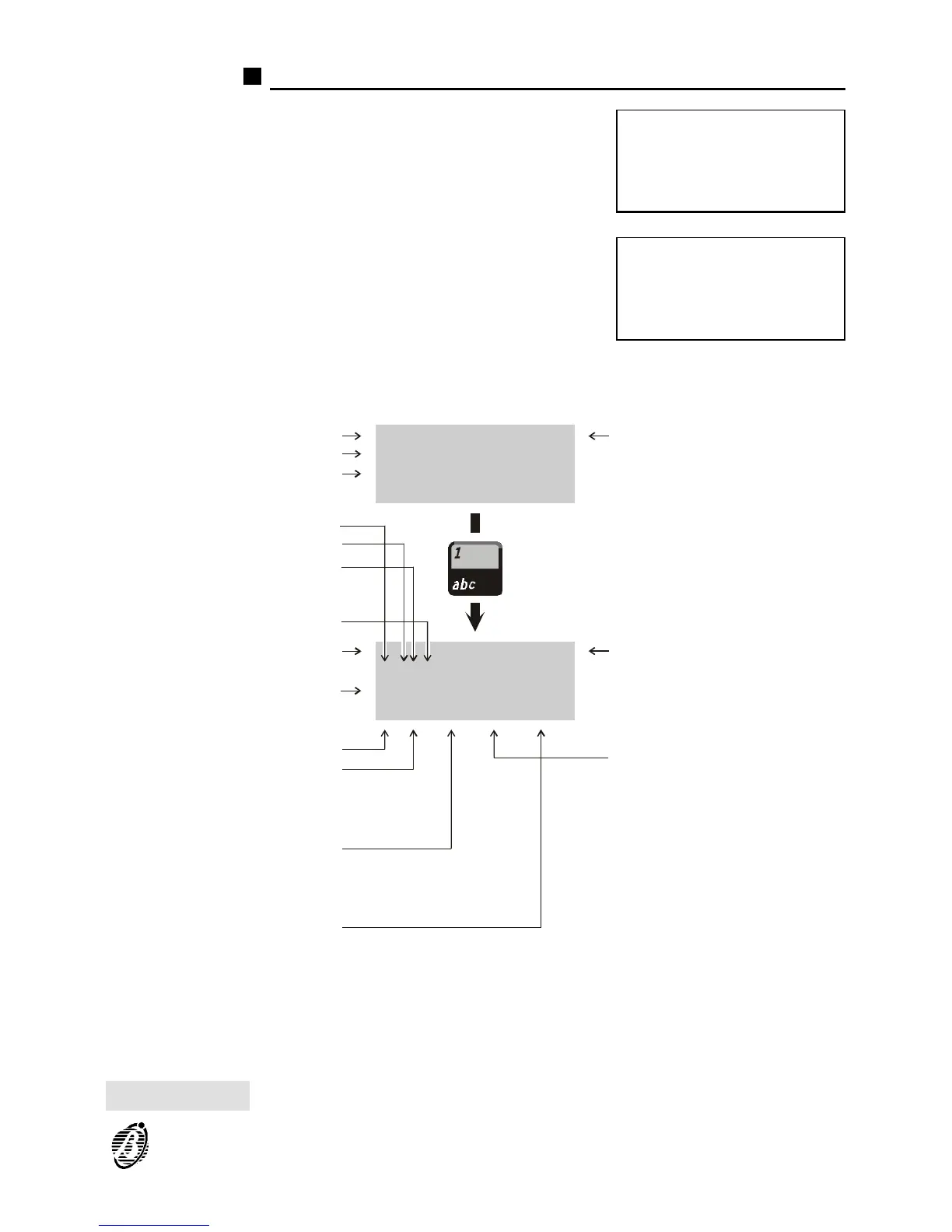

Figure 22 Bell Output parameters
