Programming: Output modules

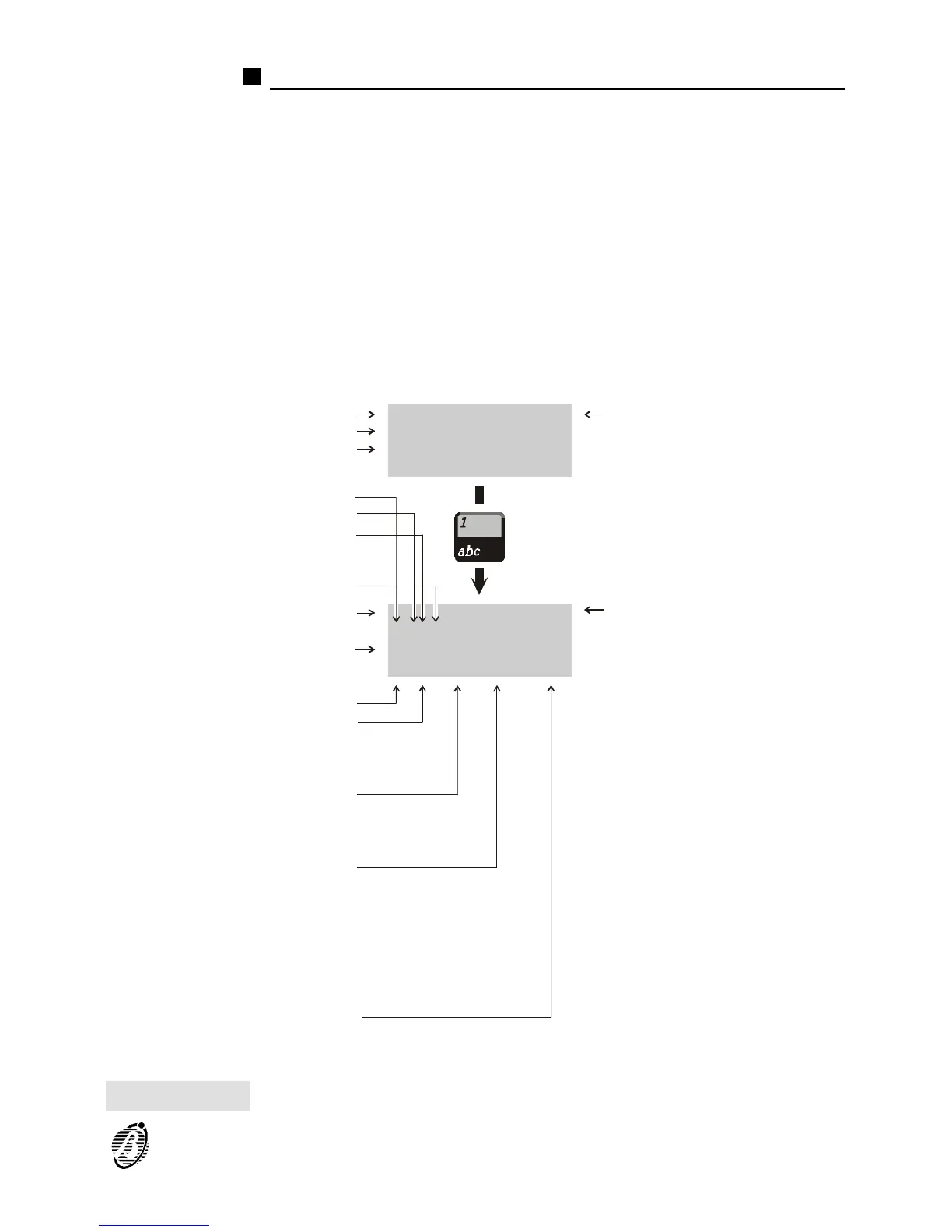

Figure 18 shows the output module parameters.
Ø To access the parameters shown in figure 18b ---- position the cursor on
the third line of the display then press key 1.
Ø Most of the output module parameters are described under "Programming:
Fire Detector". The following parameters are for output modules only.
Associated
Zones
Each output module can be associated with up to 4 of the 16 software
zones. The output module will activate when any one of its zones goes into
ALARM status.
PRG:Module OUT. %##
P=ØSØØ P=ØSØØ P=ØSØØ
Extinction : **
G:***,***,**** **
PRG:Module OUT. %##
Device: MODULE
Z=ØØ Z=ØØ Z=ØØ Z=ØØ
A)Attr.—>)Next #/##
a)
b)
Extinction type:
**; E1; E2; E3; E4
Fault:
*** = none;
Ft = Fault;
FtN = Net Fault
Description
Desciption
Label: 20 characters max.
Zones:
00 ÷ 16
Analogue value:
00 ÷ 99
Analogue value: 00 ÷ 99
General conditions
Alarm:
*** = none;
AI = Alarm;
2AI = Double Knock
Prealarm:
**** = none;
;
WrnN = Net Warning;
;
Pre =Prealarm
PreZ=Prealarm Zone
Wrn =
WrnZ = Zone Warning
WrnP = Point Warning;
Warning
Points
Loop: *; 1; 2
Type:
S = Sensor;
M = Module
Address: 00 ÷ 99
Bypass supervisory output :
** = Check output fault;
IF = (Ignore fault);
Don’t check output fault
Figure 18 Output module parameters
